The Stork KGE 20B-5 is a right-hand rotation, self-priming centrifugal pump designed for shipping, industrial, and agricultural use. It has a closed impeller, ceramic on carbon mechanical seal, and is made from cast iron, bronze, and chromed steel. It handles contaminated liquids up to 95°C, with capacities ranging from 9,000 to 27,500 liters per hour at various heads, and uses 2" internal thread connections .
- Description
- Ask a Question
-

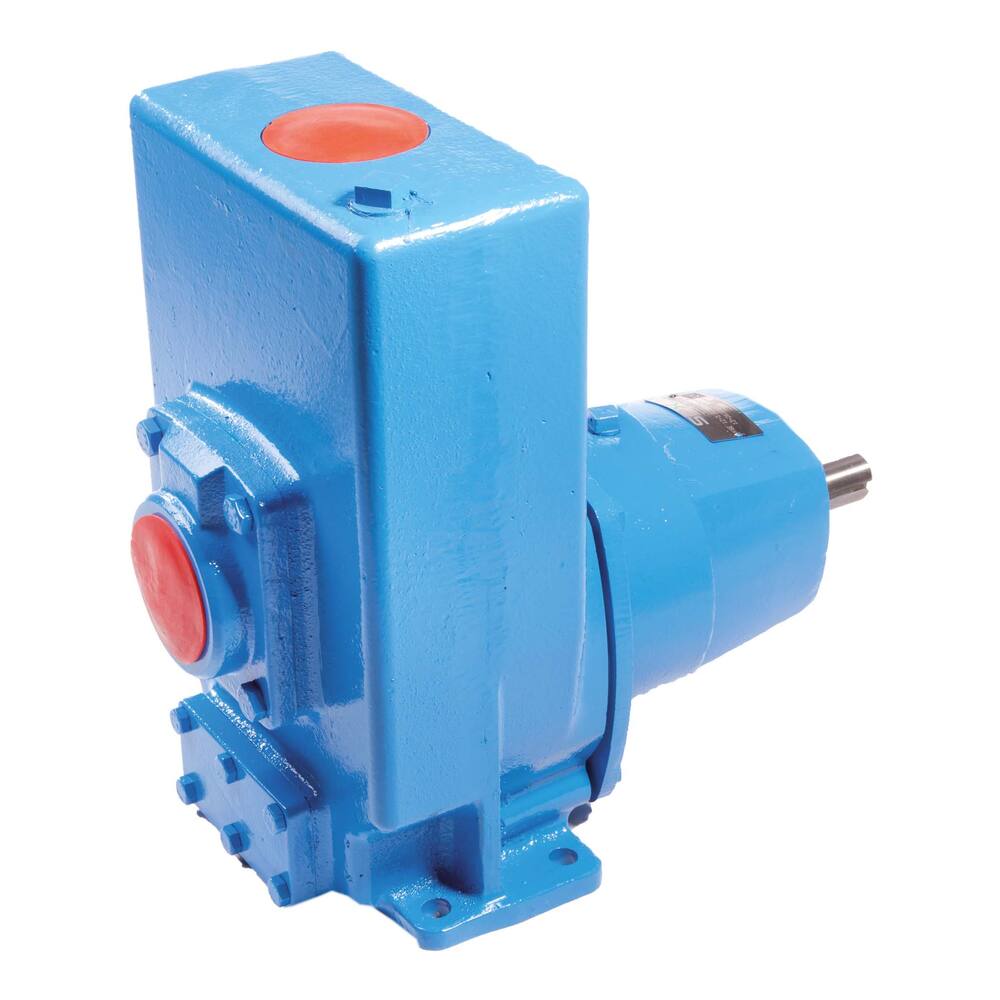

Stork KGE 20B-5 - Right-Hand Rotation Pump
Designed for frequent use in shipping as a bilge and deck wash pump, this model is also suitable for industrial general service and agricultural sprinkling needs.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (available on request, also completely Ni-Resist)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids including water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance at various heads:
- 15 m head: 27,500 litres/hour
- 20 m head: 27,500 litres/hour
- 25 m head: 26,000 litres/hour
- 30 m head: 24,000 litres/hour
- 35 m head: 22,500 litres/hour
- 40 m head: 19,000 litres/hour
- 45 m head: 16,000 litres/hour
- 50 m head: 9,000 litres/hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 515 x 320 x 460 mm
- Weight: 90 kg
- Shaft diameter: 24 mm
- Shaft power: 5.5 kW (7.3 hp) at 2900 rpm
- Speed range: 2800 to 3000 rpm
- Product code: 95.30.016
- Suction head: 6.7 m
- Pipe diameter pressure and suction: 2"
- Model: Clockwise
- Pump type classification: Dry set-up, self-priming
- Medium: Water
- Particle size capacity: 3 mm
- Maximum discharge head: 52.0 m
- Free flow: 27,500 L/hour
- Capacity at 5 meters: 27,500 L/hour
-
