The Stork KGE 16-6 pump is a versatile right-hand rotation, self-priming centrifugal pump used in shipping, industrial, and agricultural settings. It features an open impeller, ceramic on carbon mechanical seal, and materials including cast iron, bronze, and chromed steel. It handles contaminated liquids up to 95°C, with capacities ranging from 17,000 to 58,000 liters per hour at different heads, and has 2.1/2" internal thread connections .
- Description
- Ask a Question
-

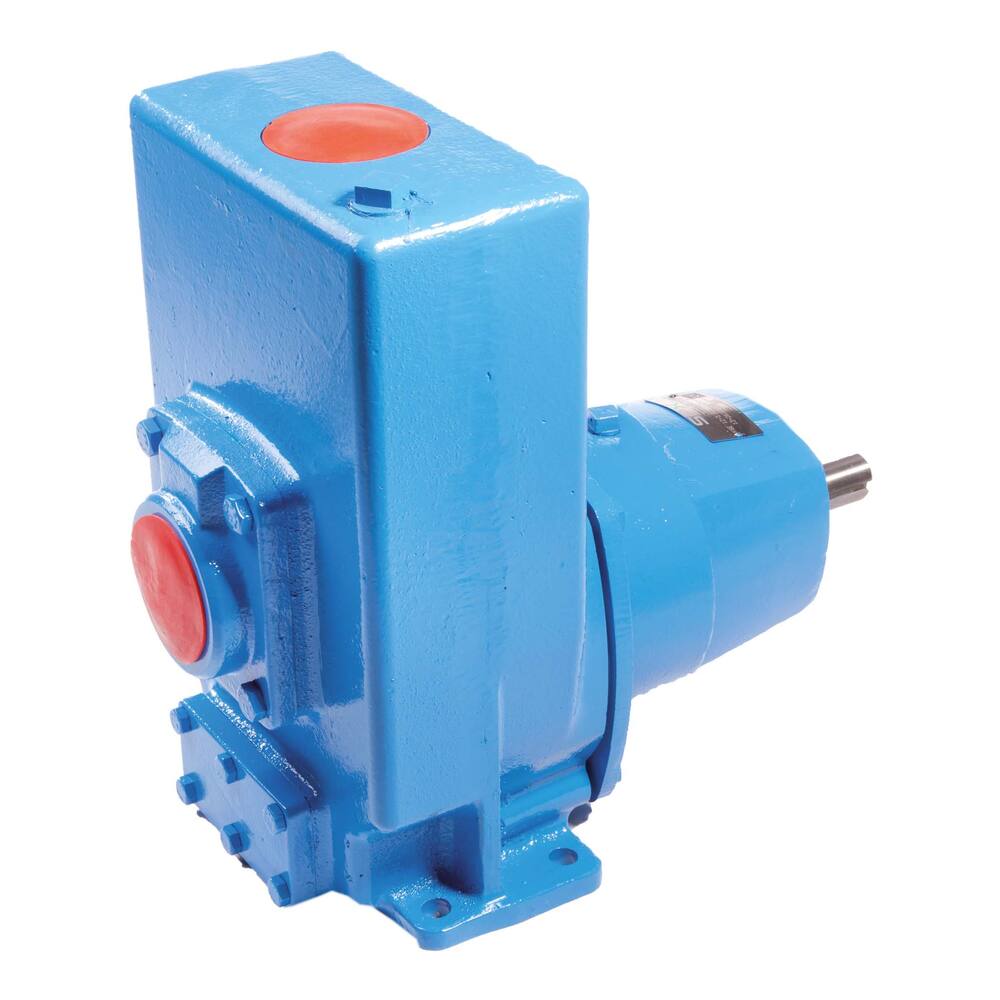

Stork KGE 16-6 - Right-Hand Rotation Pump
This pump is widely applied in shipping for bilge and deck washing tasks. It also serves well as a versatile service pump in industrial environments or as a sprinkling pump in agricultural use.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (available on request, also completely Ni-Resist)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids including water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance at various heads:
- 10 m head: 58,000 litres/hour
- 15 m head: 58,000 litres/hour
- 20 m head: 50,000 litres/hour
- 25 m head: 40,000 litres/hour
- 30 m head: 30,000 litres/hour
- 35 m head: 17,000 litres/hour
- Connections: 2.1/2" internal thread
- Dimensions (LxWxH): 415 x 247 x 380 mm
- Weight: 40 kg
- Shaft diameter: 24 mm
- Shaft power: 5.5 kW (7.3 hp) at 2900 rpm
- Speed range: 2800 to 3000 rpm
- Product code: 95.30.014
- Suction head: 6.5 m
- Pipe diameter pressure and suction: 2.1/2"
- Model: Clockwise
- Pump type classification: Dry set-up, self-priming
- Medium: Water
- Particle size capacity: 12 mm
- Maximum discharge head: 37.5 m
- Free flow: 58,000 L/hour
- Capacity at 5 meters: 58,000 L/hour
-
