ID
1317173
$ 1,760.26
1-2 weeks delivery time
-
+
The Tellarini Jetpump 24V combines a self-priming centrifugal pump with jet system technology for commercial shipping and pleasure craft applications. Operating at 1,200 L/h capacity with 24V DC power, it features stainless steel construction with 8-meter suction capability and automatic pressure control between 1.5-2.5 bar for multiple water outlets.
- Description
- Ask a Question
-

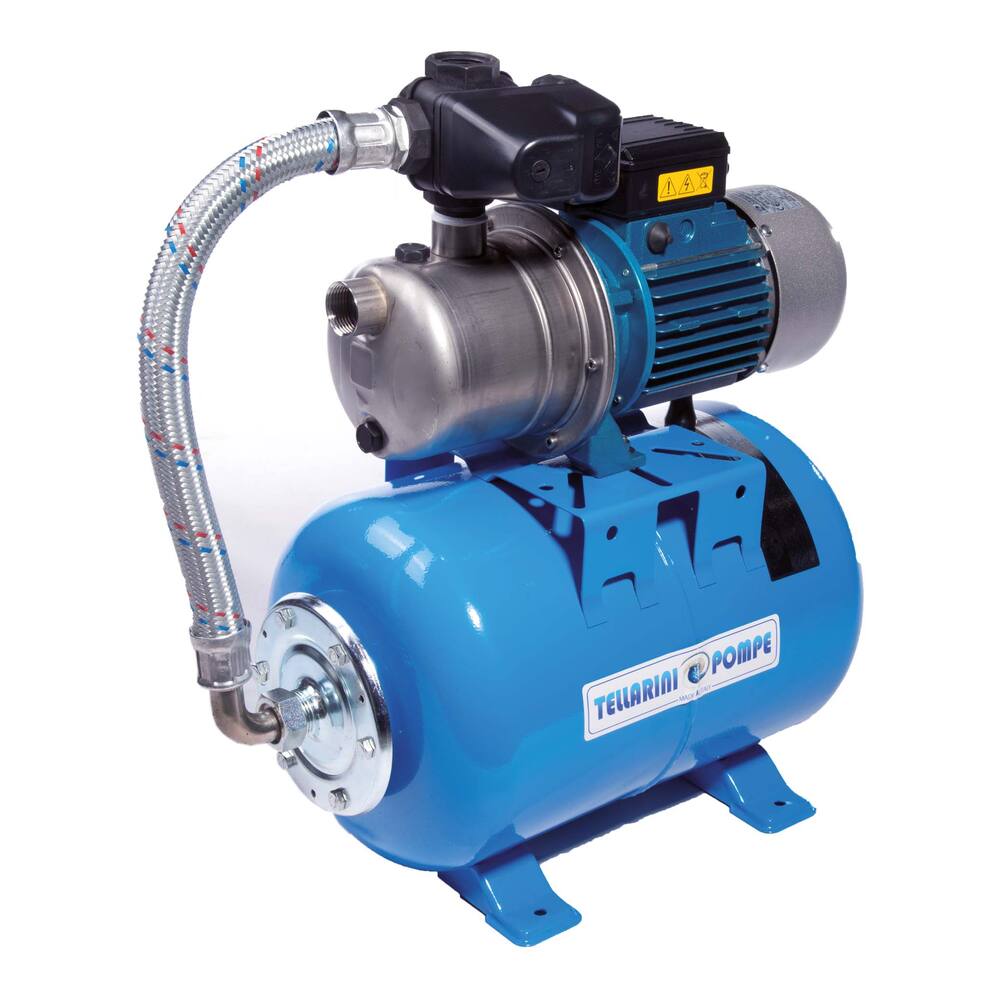

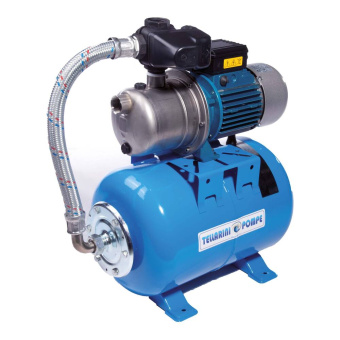

Tellarini Pressurized Water System Jetpump 24V
Ideal for commercial shipping and pleasure craft, this system features a pressure vessel, non-return valve, manometer, pressure switch, and an electric pump with a jet system, designed for effective water delivery under pressure.
- Type: JET
- Colour: blue and stainless steel
- Pump type: self-priming centrifugal pump with jet system
- Impeller type: closed impeller
- Motor type: brush motor
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: Noryl
- Material impeller housing: Noryl
- Material pump housing: stainless steel 304
- Material pump shaft: stainless steel
- Liquids: clean water
- Capacity: 1,200 litres per hour at 2.5 bar
- Suction height: 8.0 metres when using foot valve
- Type pressure vessel: horizontal 20 l membrane vessel with approx. 8 litres useful water capacity
- Switch on pressure: 1.5 bar
- Switch off pressure: 2.5 bar
- Dimensions: lxwxh = 650 x 280 x 540 mm
- Weight: 16 kg
- Amperage: 19 A
- Shaft power: 0.525 kW, 0.7 hp, 2350 rpm
- Product code: 97.27.010
- Number of tapping points: Geyser and 2 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 25.0 m
- Voltage: 24 V
- Current: DC
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 1200
- Capacity 5 meter (L/hour): 1200
-
