ID
1316826
$ 2,272.51
1-2 weeks delivery time
-
+
The Grundfos AP 35.40.06.3V is a durable stainless steel submersible centrifugal pump designed for tough conditions such as shipping, construction, and industrial applications. It has a recessed open vortex impeller, an oil-filled motor, and a carbon on ceramic mechanical seal with an NBR rubber lip seal. This model handles slightly contaminated water with acidity up to 55°C and particles up to 35 mm, with a maximum submersion depth of 10 meters. It operates at 400 V with a power of 0.94 kW, delivers a free flow of 18,700 liters per hour, and weighs 11.4 kg.
- Description
- Ask a Question
-

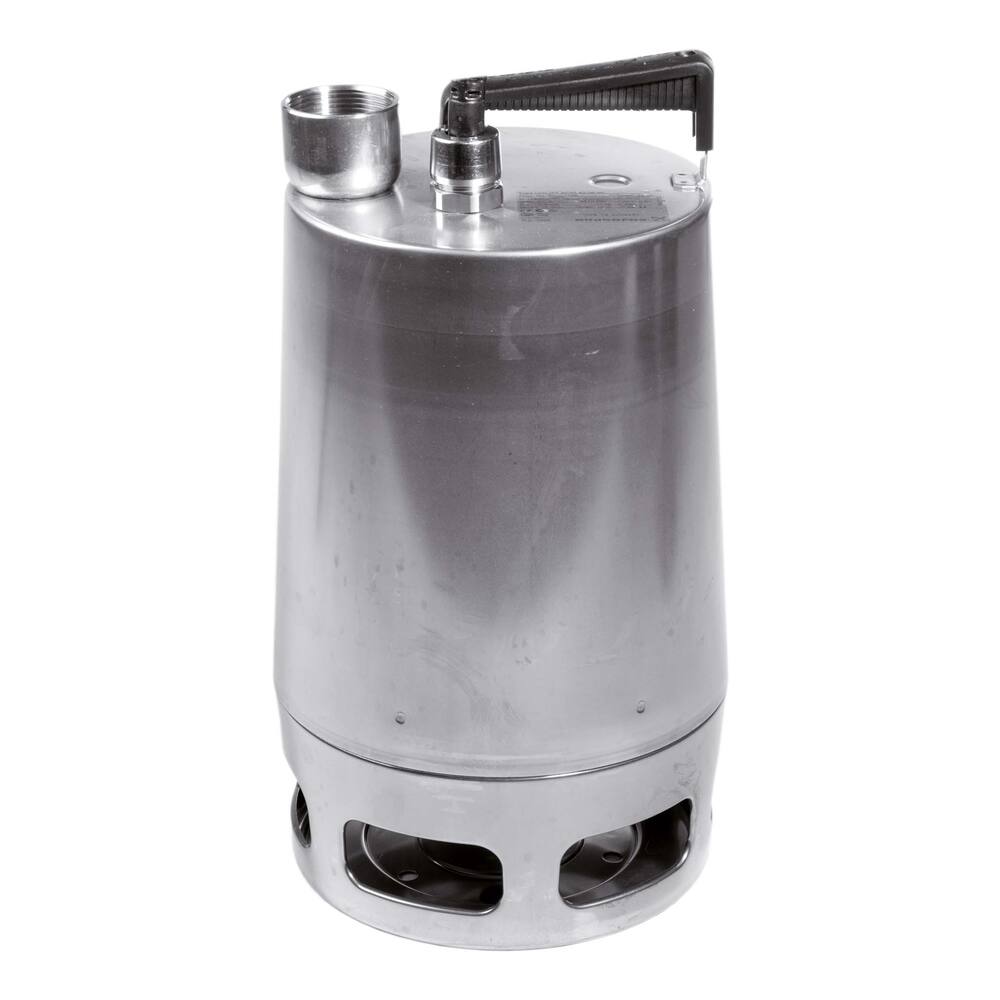

Grundfos AP 35.40.06.3V - Pump 400V
This durable stainless steel cylinder pump, featuring a top connection, is designed for demanding environments such as shipping, construction, and industry. It is ideal for bilge and ballast pumping tasks.
- Type: AP35
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: oil filled motor
- Fuse: inbuilt thermal safeguard (only for 230 V version)
- Shaft seal: carbon on ceramic mechanical seal, NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: slightly contaminated water and water with somewhat higher acidity, continuously up to 55°C
- Pumps down to: 40 mm
- Particle size: 35 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 395 mm
- Weight: 11.4 kg
- Amperage: 400 V, 1.6 A
- Shaft power: 0.94 kW, 1.25 hp
- Cable: 10 metre neoprene H07RN-F without plug for 400 V, plug connection on pump side
- Product code: 91.44.063
- EAN code: 5700390894702
- Pipe diameter pressure: 1.1/2"
- Pump type: Submersible pump
- Medium: Water and water with coarse components
- Discharge head Max.: 9.8 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 18,700 L/hour
- Capacity at 5 meter: 10,800 L/hour
-
