ID
1316831
$ 3,261.61
1-2 weeks delivery time
-
+
The Grundfos AP 50.50.08.3V is a robust stainless steel submersible centrifugal pump designed for demanding environments such as shipping, construction, and industrial use, operating at 400V. It features a recessed open impeller, oil-filled motor, and handles slightly contaminated water with acidity continuously at 55°C. The pump supports particles up to 50 mm, has a maximum submersion depth of 10 meters, and delivers a flow rate of 15,100 liters per hour at 5 meters head with a free flow of 30,000 liters per hour. It weighs 15.1 kg and comes with a 10-meter neoprene cable without a plug for 400V operation.
- Description
- Ask a Question
-

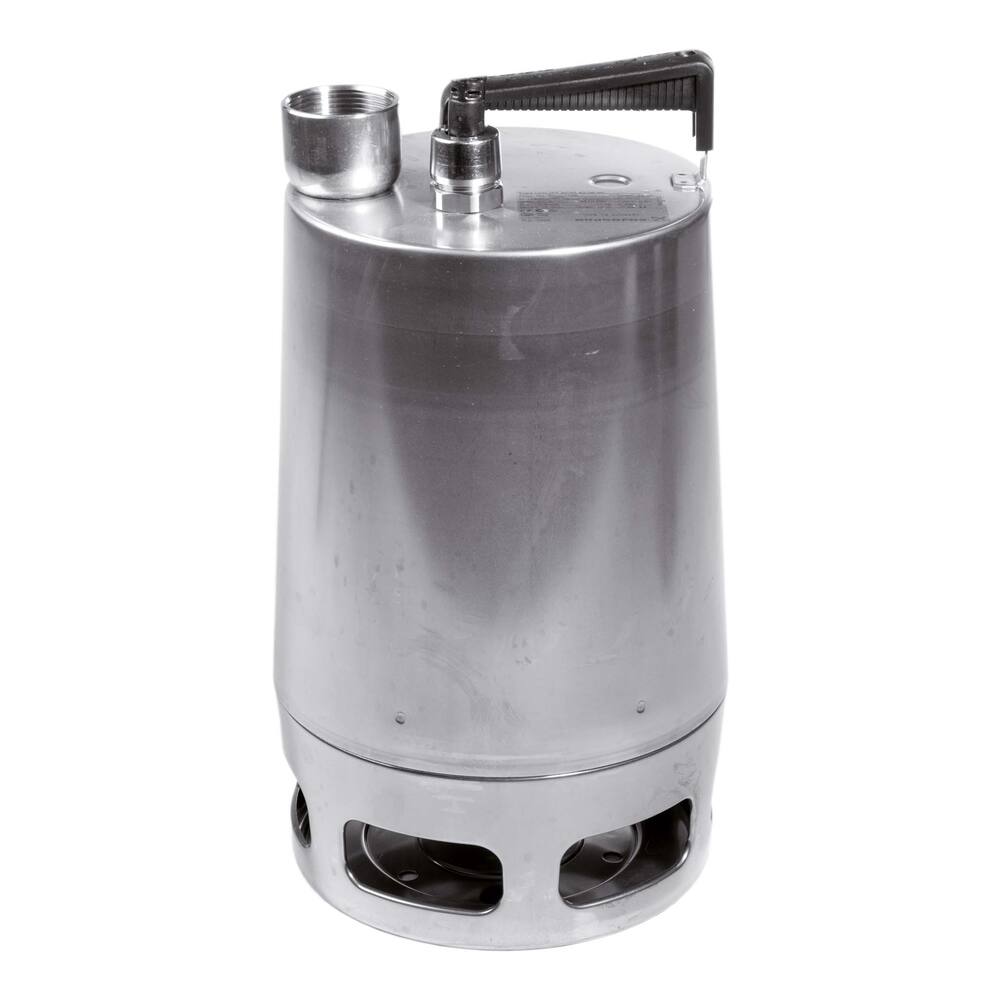

Grundfos AP 50.50.08.3V - Pump 400V
This pump features a robust, fully stainless steel cylinder design with a top connection, perfectly suited for demanding environments such as shipping, construction, and industrial applications. It serves excellently as a bilge and ballast pump.
- Type: AP50
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: oil filled motor
- Fuse: inbuilt thermal safeguard (230 V version only)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, housing, motor housing, shaft: stainless steel 304
- Suitable liquids: slightly contaminated water or water with higher acidity, continuous operation at 55°C
- Minimum pumping level: 55 mm
- Maximum particle size: 50 mm (no sand or gravel)
- Connection: 2" internal thread
- Dimensions: diameter 241 mm, height 460 mm
- Weight: 15.1 kg
- Voltage and amperage: 400 V, 1.6 A
- Shaft power: 0.94 kW (1.25 hp)
- Cable: 10 metre neoprene H07RN-F with earthed plug; without plug for 400 V; also plug connection on pump side
- Product code: 91.45.083
- EAN code: 5700390900595
- Pipe diameter pressure: 2"
- Pump type: Submersible pump
- Medium handled: Water; Water with coarse components
- Particle size: 50 mm
- Maximum discharge head: 9.1 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow rate: 30,000 L/hour
- Capacity at 5 m head: 15,100 L/hour
-
