ID
1316824
$ 3,177.79
1-2 weeks delivery time
-
+
The Grundfos AP 12.50.11.3 pump is the 400 V version of the AP 12.50.11.1, featuring the same robust stainless steel design and high flow capacity. It delivers 18,700 liters per hour at 10 meters head, operates at 400 V with 3.0 A current, and is suitable for slightly contaminated water with a maximum discharge head of 16.6 meters, weighing 15.1 kg.
- Description
- Ask a Question
-

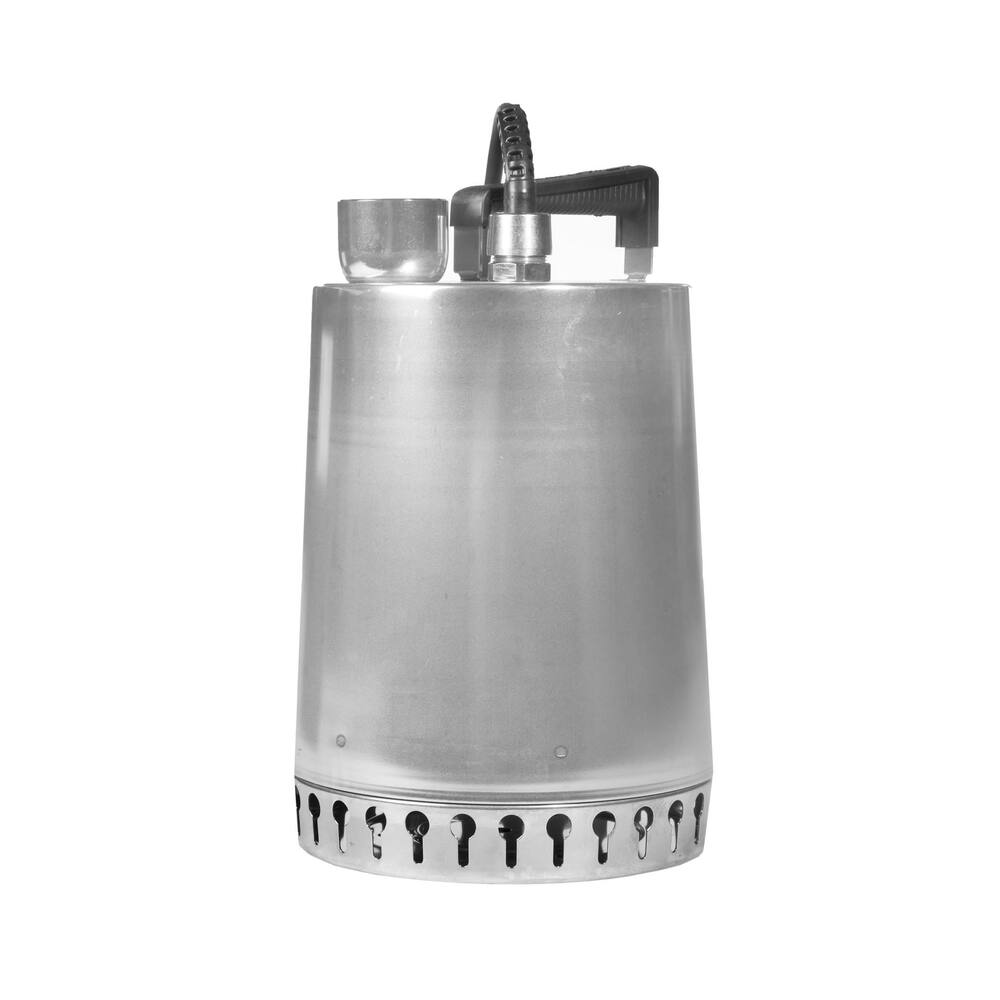

Grundfos AP 12.50.11.3 - Pump 400V
This pump features a robust all stainless steel cylinder construction, designed for demanding environments such as shipping, construction, and industrial applications. It excels as an efficient bilge and ballast pump.
- Type: AP12
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor (non-toxic)
- Fuse: inbuilt thermal safeguard (only with 230 V version)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Materials: impeller, impeller housing, motor housing, and pump shaft all stainless steel 304
- Suitable liquids: slightly contaminated water and water with somewhat higher acidity, continuously at 55°C
- Performance:
- 10 metres head: 18,700 litres per hour
- 15 metres head: 6,500 litres per hour
- Pumps down to 30 mm liquid level
- Particle size: 12 mm (no sand or gravel)
- Connection: 2" internal thread
- Dimensions: diameter 241 mm, height 390 mm
- Weight: 15.1 kg
- Electrical: 400 V, 3.0 A, shaft power 1.6 kW (2.1 hp)
- Cable: 10 metre neoprene H07RN-F with earthed plug; no plug for 400 V version; plug connection on pump side
- Product code: 90.15.113
- EAN code: 5700390897482
- Pipe diameter pressure: 2"
- Maximum discharge head: 16.6 m
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 36000 L/hour
- Capacity at 5 metre head: 28800 L/hour
-
