The Grundfos AP 50.50.11.1V is a durable stainless steel submersible centrifugal pump designed for shipping, construction, and industrial use. It features a recessed open impeller, oil-filled motor, and built-in thermal safeguard for 230V operation. The pump handles slightly contaminated water with acidity up to 55°C, pumps particles up to 50 mm, and delivers a flow rate of 7,500 liters per hour at 10 meters head, with a free flow rate of 33,800 liters per hour. It has a maximum submersion depth of 10 meters, weighs 15.1 kg, and includes a 10-meter neoprene cable with an earthed plug.
- Description
- Ask a Question
-

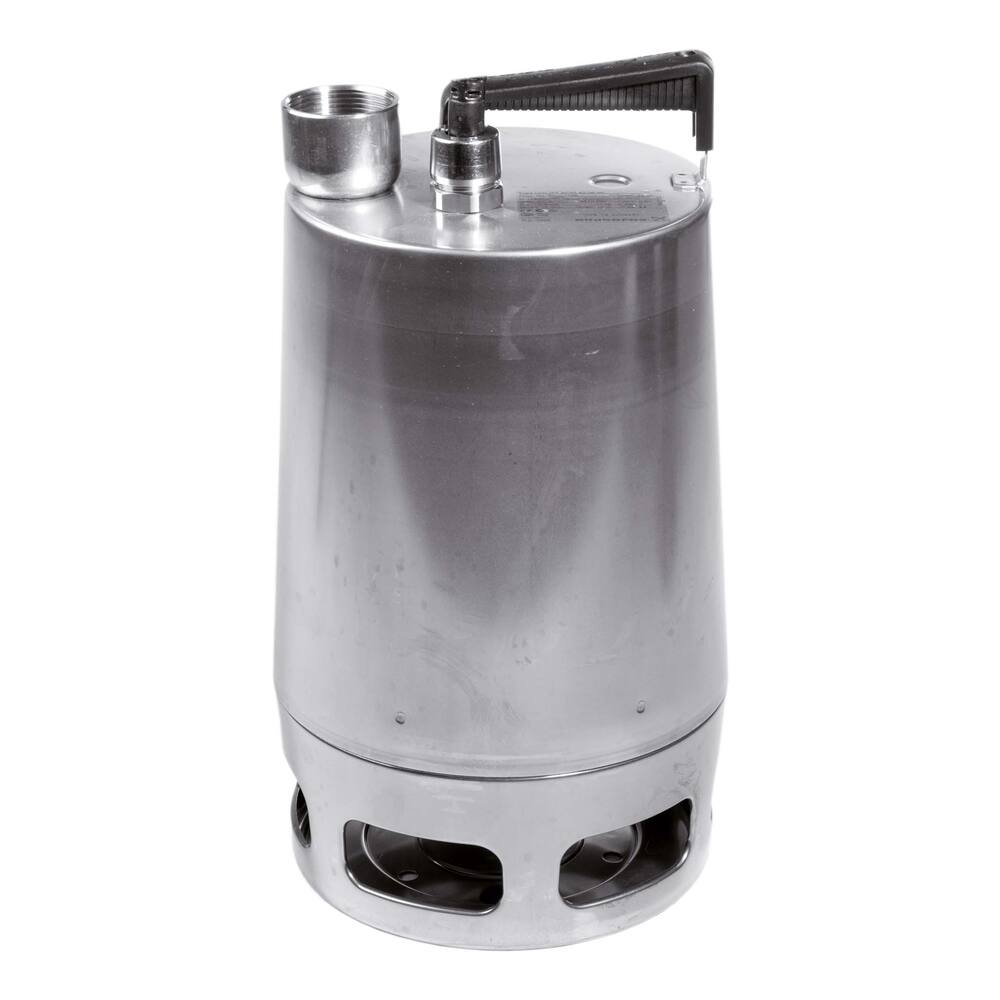

Grundfos AP 50.50.11.1V - Pump 230V
This pump is designed with a durable stainless steel cylinder and top connection, making it ideal for use in shipping, construction, and industrial settings. It is an efficient choice for bilge and ballast pumping tasks.
- Type: AP50
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: oil filled motor
- Fuse: inbuilt thermal safeguard (only for 230 V version)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, housing, motor housing, shaft: stainless steel 304
- Suitable liquids: slightly contaminated water or water with higher acidity, continuous operation at 55°C
- Flow at 10 m head: 7,500 litres per hour
- Minimum pumping level: 55 mm
- Maximum particle size: 50 mm (no sand or gravel)
- Connection: 2" internal thread
- Dimensions: diameter 241 mm, height 460 mm
- Weight: 15.1 kg
- Voltage and amperage: 230 V, 8.0 A
- Shaft power: 1.6 kW (2.1 hp)
- Cable: 10 metre neoprene H07RN-F with earthed plug; also plug connection on pump side
- Product code: 91.45.111
- EAN code: 5700390515638
- Pipe diameter pressure: 2"
- Pump type: Submersible pump
- Medium handled: Water; Water with coarse components
- Particle size: 50 mm
- Maximum discharge head: 11.8 m
- Voltage: 230 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow rate: 33,800 L/hour
- Capacity at 5 m head: 22,700 L/hour
-
