ID
1316825
$ 2,348.88
1-2 weeks delivery time
-
+
The Grundfos AP 35.40.06.1V is a robust, fully submersible centrifugal pump made entirely of stainless steel, designed for demanding environments like shipping, construction, and industrial use. It features a recessed open vortex impeller, an oil-filled motor, and a carbon on ceramic mechanical seal with an NBR rubber lip seal. The pump can handle slightly contaminated water with some acidity up to 55°C, supports particles up to 35 mm, and has a maximum submersion depth of 10 meters. It operates at 230 V with a power of 0.94 kW, has a free flow rate of 18,700 liters per hour, and weighs 11.4 kg.
- Description
- Ask a Question
-

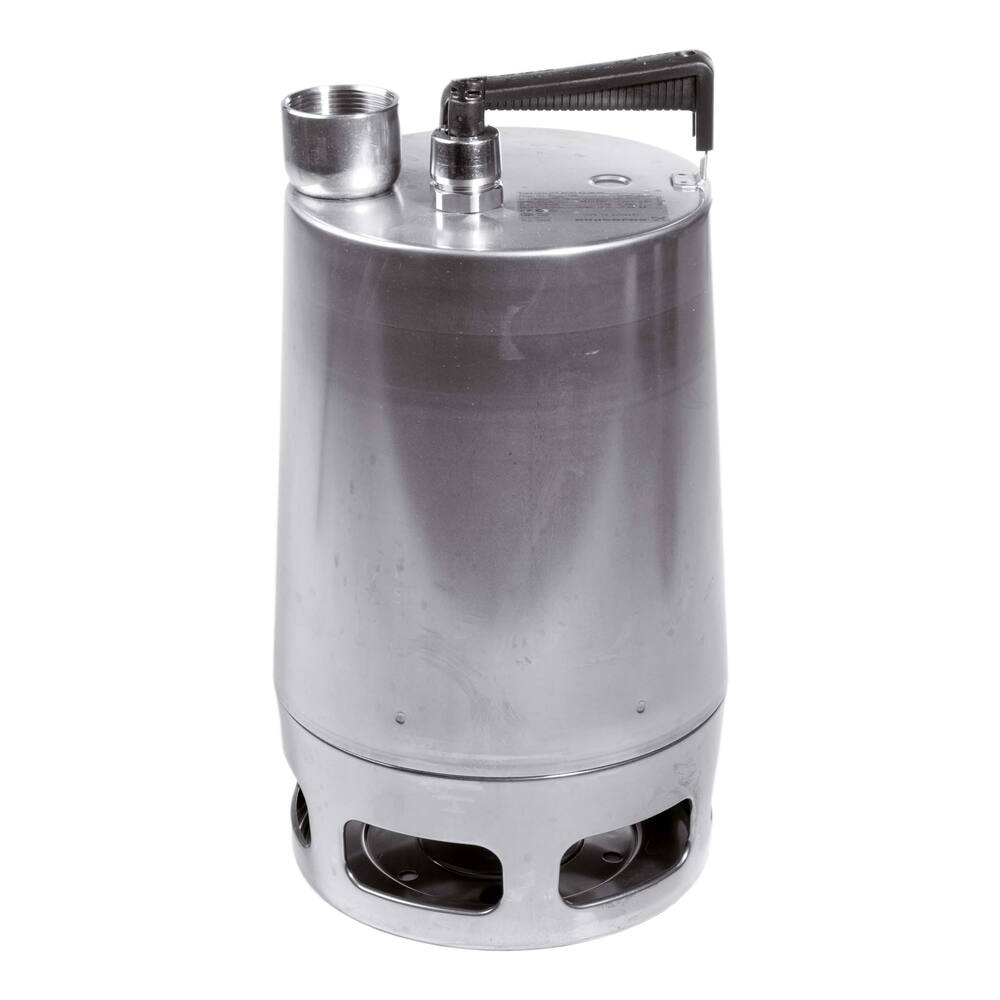

Grundfos AP 35.40.06.1V - Pump 230V
This pump features a robust all stainless steel cylinder design with a top connection, making it highly suitable for shipping, construction, and industrial applications. It serves perfectly as a bilge and ballast pump.
- Type: AP35
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: oil filled motor
- Fuse: inbuilt thermal safeguard (only for 230 V version)
- Shaft seal: carbon on ceramic mechanical seal, NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: slightly contaminated water and water with somewhat higher acidity, continuously up to 55°C
- Pumps down to: 40 mm
- Particle size: 35 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 395 mm
- Weight: 11.4 kg
- Amperage: 230 V, 4.4 A
- Shaft power: 0.94 kW, 1.25 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug, plug connection on pump side
- Product code: 91.44.061
- EAN code: 5700390473563
- Pipe diameter pressure: 1.1/2"
- Pump type: Submersible pump
- Medium: Water and water with coarse components
- Discharge head Max.: 9.8 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 18,700 L/hour
- Capacity at 5 meter: 10,800 L/hour
-
