ID
1316830
$ 3,375.23
1-2 weeks delivery time
-
+
The Grundfos AP 50.50.08.1V is a reliable, fully stainless steel submersible centrifugal pump designed for shipping, construction, and industrial applications. It features a recessed open impeller, oil-filled motor, and built-in thermal safeguard for 230V, pumping slightly contaminated water with some acidity continuously at 55°C. It handles particles up to 50 mm, has a maximum submersion depth of 10 meters, and delivers a flow rate of 15,100 liters per hour at 5 meters head with a free flow of 30,000 liters per hour. The pump weighs 15.1 kg and includes a 10-meter neoprene cable with an earthed plug.
- Description
- Ask a Question
-

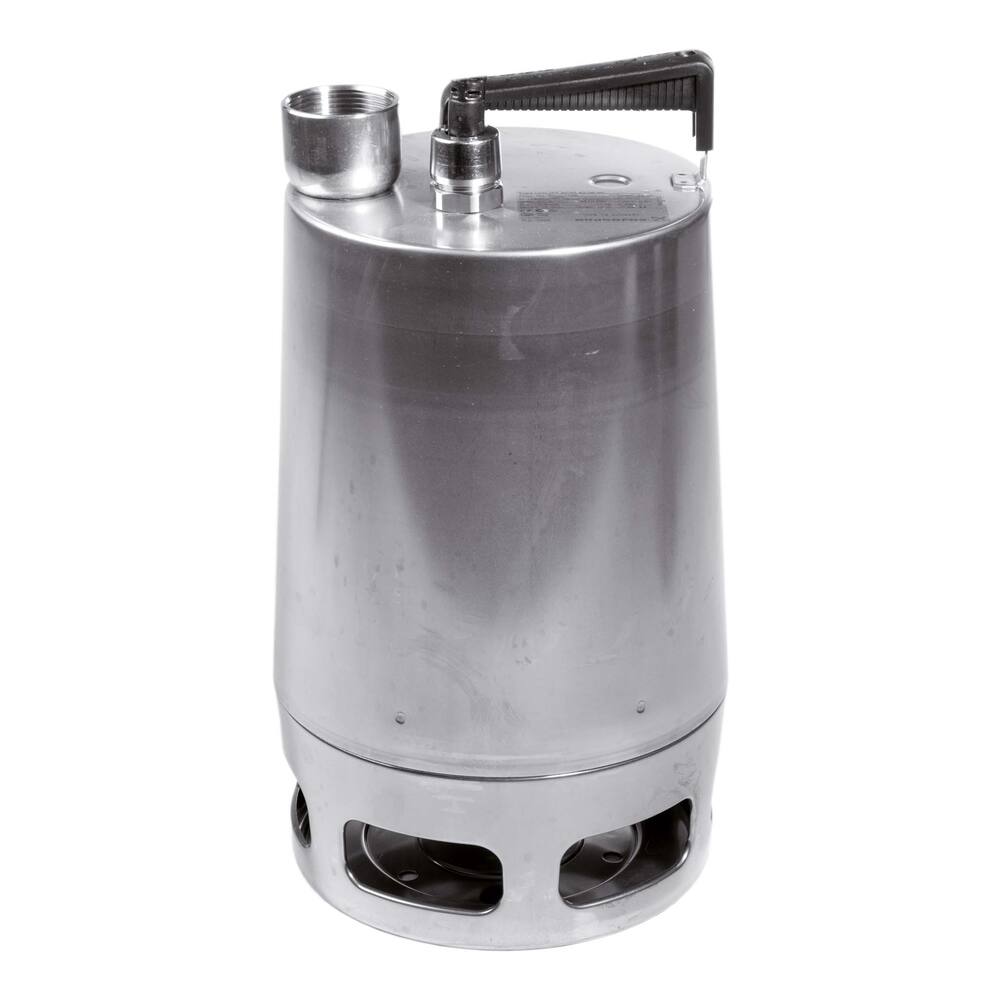

Grundfos AP 50.50.08.1V - Pump 230V
This reliable pump features a sturdy all stainless steel cylinder design with top connection, tailored for shipping, construction, and industrial use. It is an excellent choice for bilge and ballast pumping tasks.
- Type: AP50
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: oil filled motor
- Fuse: built-in thermal safeguard (230 V version only)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, impeller housing, motor housing, pump shaft: stainless steel 304
- Suitable liquids: slightly contaminated water, water with higher acidity, continuous operation at 55°C
- Minimum pump level: 55 mm
- Maximum particle size: 50 mm (no sand or gravel)
- Connection: 2" internal thread
- Dimensions: diameter 241 mm, height 460 mm
- Weight: 15.1 kg
- Voltage/Current: 230 V, 4.4 A
- Shaft power: 0.94 kW, 1.25 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug and plug connection on pump side
- Product code: 91.45.081
- EAN code: 5700390515935
- Pipe diameter pressure: 2"
- Pump type: Submersible pump
- Medium: Water, water with coarse components
- Discharge head max: 9.1 m
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Capacity at 5 m: 15,100 L/hour
- Free flow: 30,000 L/hour
-
