The Grundfos AP 35.40.08.1V is a robust submersible centrifugal pump made entirely of stainless steel, designed for demanding environments like shipping, construction, and industrial use. It features a recessed open impeller, oil-filled motor, and a built-in thermal safeguard for the 230V version, capable of pumping slightly contaminated water up to 55°C with a maximum flow rate of 4,500 liters per hour at 10 meters head and a free flow of 23,400 liters per hour. The pump has a maximum submersion depth of 10 meters, handles particles up to 35 mm, and weighs 12.7 kg with a 10-meter neoprene cable and earthed plug.
- Description
- Ask a Question
-

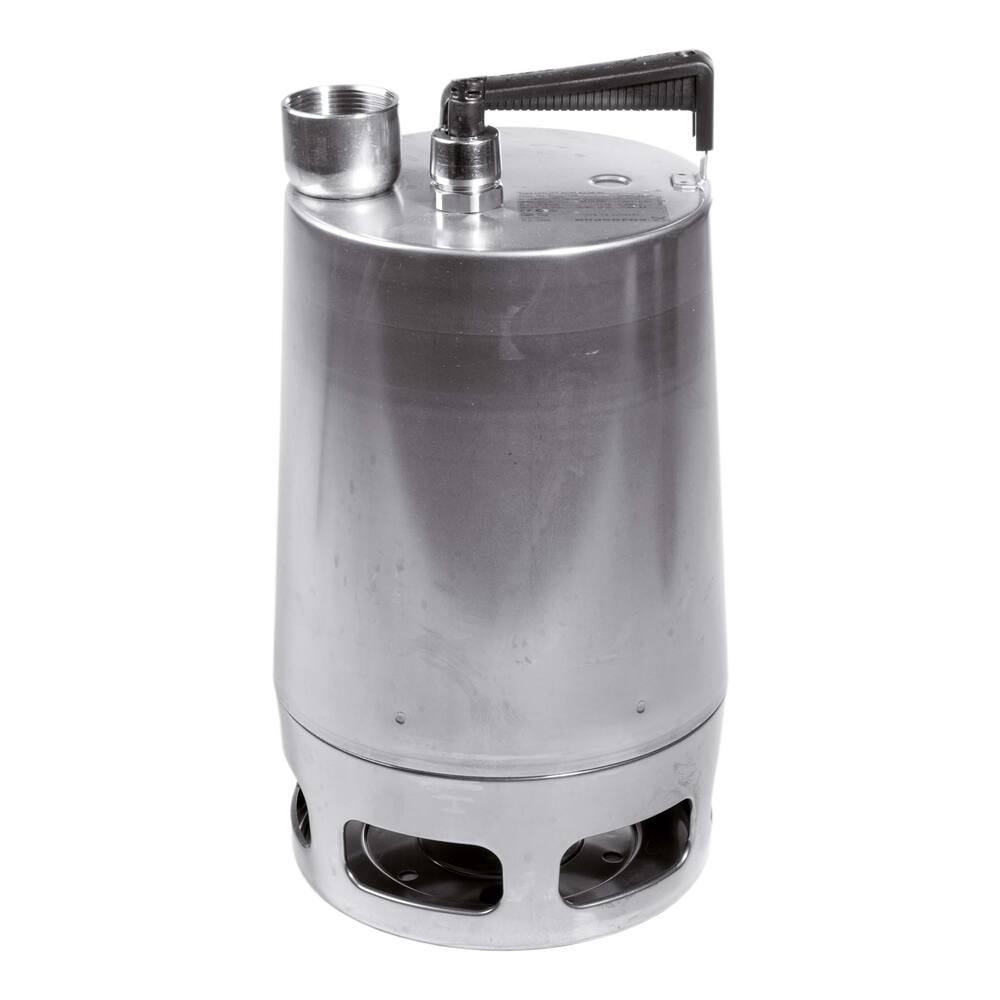

Grundfos AP 35.40.08.1V - Pump 230V
Engineered with a sturdy all stainless steel cylinder and top connection, this pump is well suited for shipping, construction, and industrial uses. It excels as a bilge and ballast pump with enhanced capacity.
- Type: AP35
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: oil filled motor
- Fuse: inbuilt thermal safeguard (only for 230 V version)
- Shaft seal: carbon on ceramic mechanical seal, NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: slightly contaminated water and water with somewhat higher acidity, continuously up to 55°C
- 10 metres head flow rate: 4,500 litres per hour
- Pumps down to: 40 mm
- Particle size: 35 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 425 mm
- Weight: 12.7 kg
- Amperage: 230 V, 5.9 A
- Shaft power: 1.27 kW, 1.7 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug, plug connection on pump side
- Product code: 91.44.081
- EAN code: 5700390470111
- Pipe diameter pressure: 1.1/2"
- Pump type: Submersible pump
- Medium: Water and water with coarse components
- Discharge head Max.: 11.4 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 23,400 L/hour
- Capacity at 5 meter: 15,800 L/hour
-
