ID
1316833
$ 4,943.63
1-2 weeks delivery time
-
+
The Grundfos AP 50.50.11.3V is a robust stainless steel submersible centrifugal pump suitable for shipping, construction, and industrial applications, operating at 400V. It shares the same design and features as the 230V version but lacks the built-in thermal safeguard. It pumps slightly contaminated water with acidity continuously at 55°C, handles particles up to 50 mm, and provides a flow rate of 7,500 liters per hour at 10 meters head with a free flow of 33,800 liters per hour. The pump weighs 15.1 kg and comes with a 10-meter neoprene cable without a plug for 400V.
- Description
- Ask a Question
-

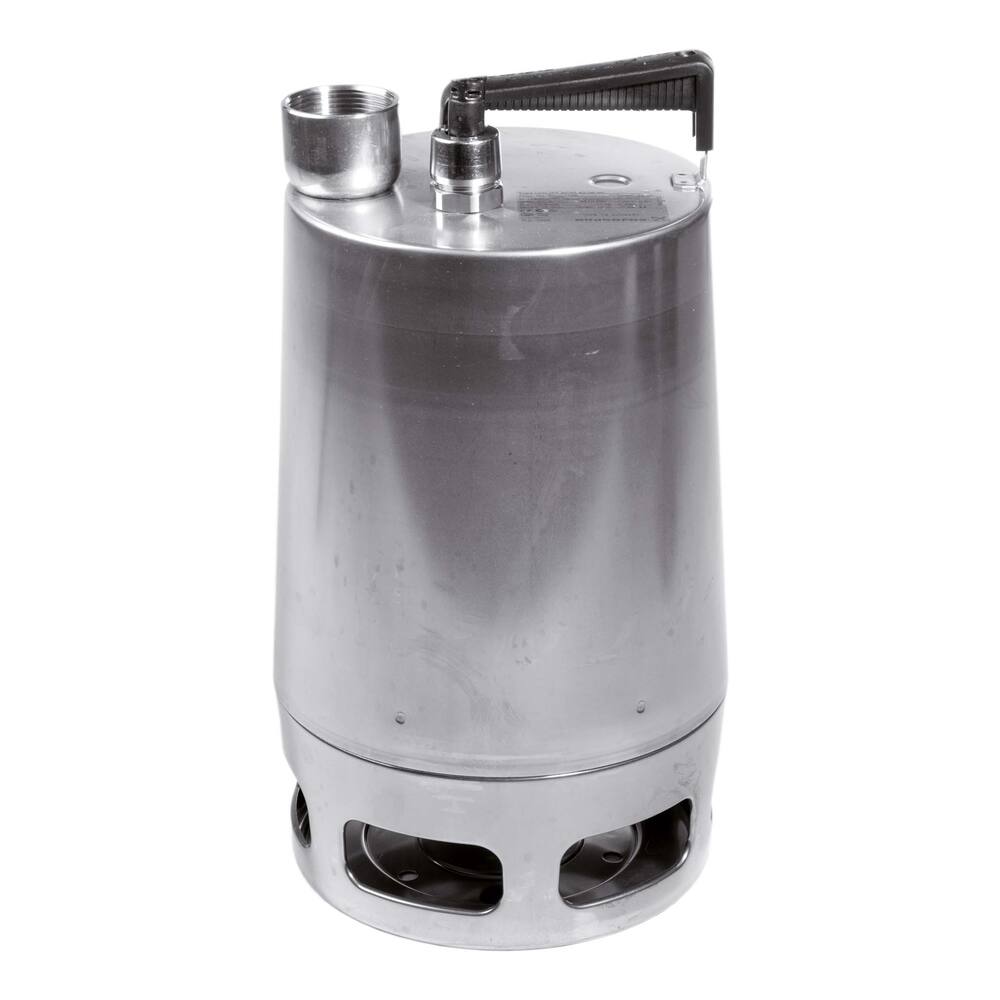

Grundfos AP 50.50.11.3V - Pump 400V
This pump offers a tough stainless steel cylinder with a top connection, suitable for shipping, construction, and industry applications. It is an excellent option for bilge and ballast pumping.
- Type: AP50
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: oil filled motor
- Fuse: inbuilt thermal safeguard (230 V version only)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, housing, motor housing, shaft: stainless steel 304
- Suitable liquids: slightly contaminated water or water with higher acidity, continuous operation at 55°C
- Flow at 10 m head: 7,500 litres per hour
- Minimum pumping level: 55 mm
- Maximum particle size: 50 mm (no sand or gravel)
- Connection: 2" internal thread
- Dimensions: diameter 241 mm, height 460 mm
- Weight: 15.1 kg
- Voltage and amperage: 400 V, 3.0 A
- Shaft power: 1.6 kW (2.1 hp)
- Cable: 10 metre neoprene H07RN-F with earthed plug; without plug for 400 V; also plug connection on pump side
- Product code: 91.45.113
- EAN code: 5700390900564
- Pipe diameter pressure: 2"
- Pump type: Submersible pump
- Medium handled: Water; Water with coarse components
- Particle size: 50 mm
- Maximum discharge head: 11.8 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow rate: 33,800 L/hour
- Capacity at 5 m head: 22,700 L/hour
-
