ID
1316829
$ 2,483
1-2 weeks delivery time
-
+

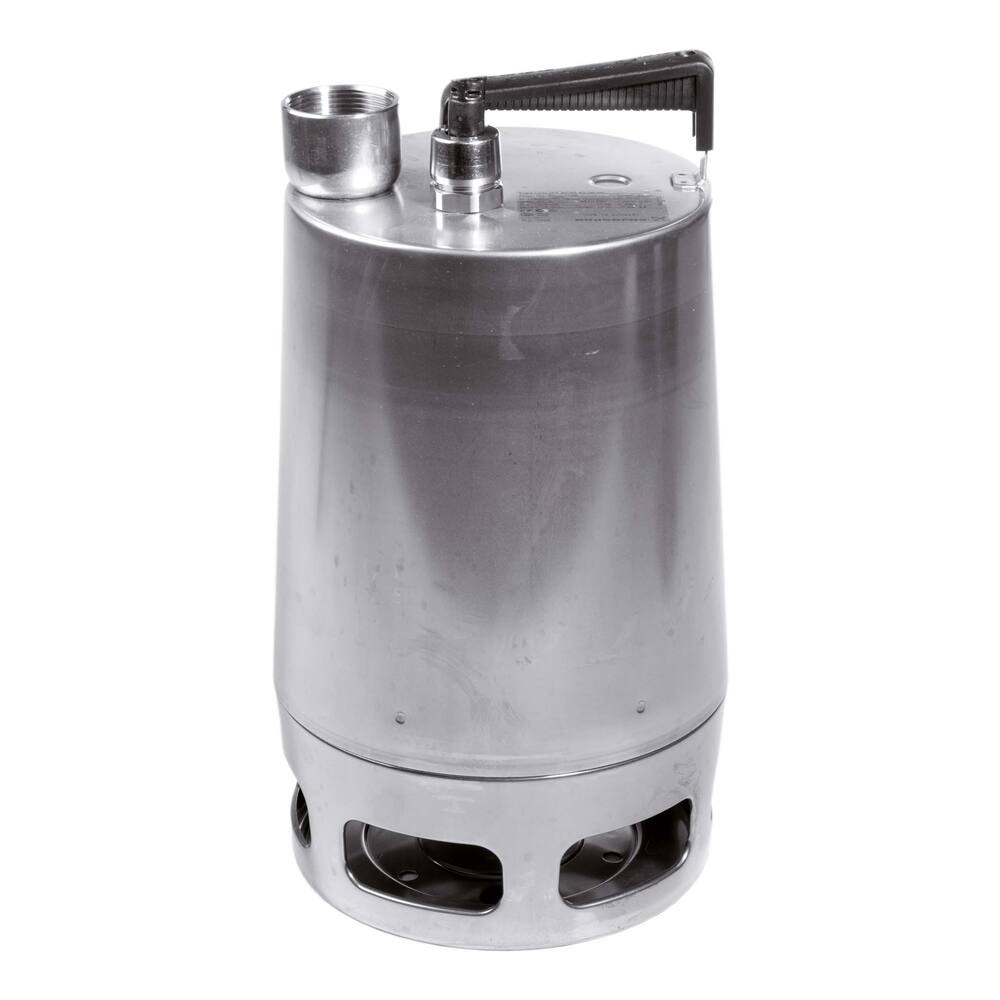

The Grundfos AP 35.40.08.3V is a stainless steel submersible centrifugal pump designed for industrial, shipping, and construction use, operating at 400V. It has a recessed open impeller and oil-filled motor but lacks the built-in thermal safeguard found in the 230V versions. It pumps slightly contaminated water up to 55°C with a flow rate of 4,500 liters per hour at 10 meters head and a free flow of 23,400 liters per hour. The pump supports a maximum submersion depth of 10 meters, handles particles up to 35 mm, and weighs 12.7 kg with a 10-meter neoprene cable without a plug.
- Description
- Ask a Question
-
Grundfos AP 35.40.08.3V - Pump 400V
Designed with robust stainless steel throughout, this cylinder pump with a top connection fits well in shipping, construction, and industrial settings. It serves perfectly as a bilge and ballast pump, optimized for 400V operation.
- Type: AP35
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: oil filled motor
- Fuse: built-in thermal safeguard only on 230 V version (not included here)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, impeller housing, motor housing, pump shaft: stainless steel 304
- Suitable liquids: slightly contaminated water, water with higher acidity, continuous 55°C operation
- Flow at 10 m head: 4,500 litres per hour
- Minimum pump level: 40 mm
- Maximum particle size: 35 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 425 mm
- Weight: 12.7 kg
- Voltage/Current: 400 V, 2.1 A
- Shaft power: 1.27 kW, 1.7 hp
- Cable: 10 metre neoprene H07RN-F without plug for 400 V, with plug connection on pump side
- Product code: 91.44.083
- EAN code: 5700390896997
- Pipe diameter pressure: 1.1/2"
- Pump type: Submersible pump
- Medium: Water, water with coarse components
- Discharge head max: 11.4 m
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Capacity at 5 m: 15,800 L/hour
- Free flow: 23,400 L/hour
-
