ID
1316828
$ 2,766.13
1-2 weeks delivery time
-
+
The Grundfos AP 35.40.08.A1V pump shares the same durable stainless steel cylindrical design and top connection as the previous model, optimized for tough conditions in shipping, construction, and industrial sectors. It includes a built-in thermal safeguard for 230V, a recessed open impeller, and an oil-filled motor, but uniquely features a separate float switch for automatic operation. It handles slightly contaminated water with some acidity at continuous 55°C operation, pumping 4,500 liters per hour at 10 meters head and 15,800 liters per hour at 5 meters, with a maximum particle size of 35 mm and a 10-meter cable.
- Description
- Ask a Question
-

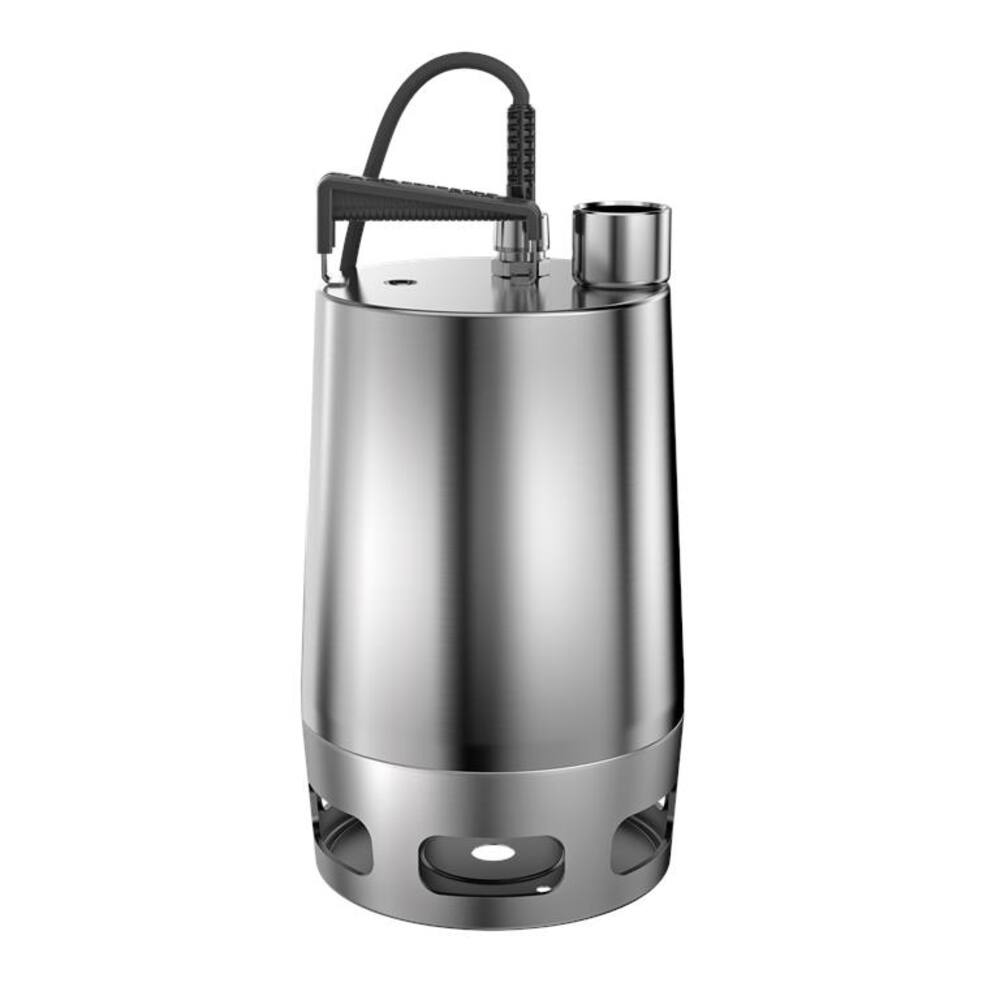

Grundfos AP 35.40.08.A1V - Pump 230V With Float
This pump is a durable, fully stainless steel cylindrical model with top connection, engineered for demanding environments such as shipping, construction, and industrial applications. It excels as a bilge and ballast pump.
- Type: AP35
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: oil filled motor
- Fuse: built-in thermal safeguard (230 V version only)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, impeller housing, motor housing, pump shaft: stainless steel 304
- Suitable liquids: slightly contaminated water, water with higher acidity, continuous operation at 55°C
- Flow at 10 m head: 4,500 litres per hour
- Minimum pump level: 40 mm
- Maximum particle size: 35 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 425 mm
- Weight: 12.7 kg
- Voltage/Current: 230 V, 5.9 A
- Shaft power: 1.27 kW, 1.7 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug and plug connection on pump side
- Product code: 91.44.082
- Pipe diameter pressure: 1.1/2"
- Pump type: Submersible pump
- Medium: Water, water with coarse components
- Discharge head max: 11.4 m
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: Yes
- Capacity at 5 m: 15,800 L/hour
- Free flow: 23,400 L/hour
-
