The Grundfos AP 12.50.11.1 pump is a larger stainless steel submersible centrifugal pump designed for maritime and industrial use, offering a high flow rate of 18,700 liters per hour at 10 meters head and 6,500 liters per hour at 15 meters head. It operates at 230 V with an 8.0 A current, has a 2-inch connection, and is capable of pumping water with mild acidity continuously up to 55°C.
- Description
- Ask a Question
-

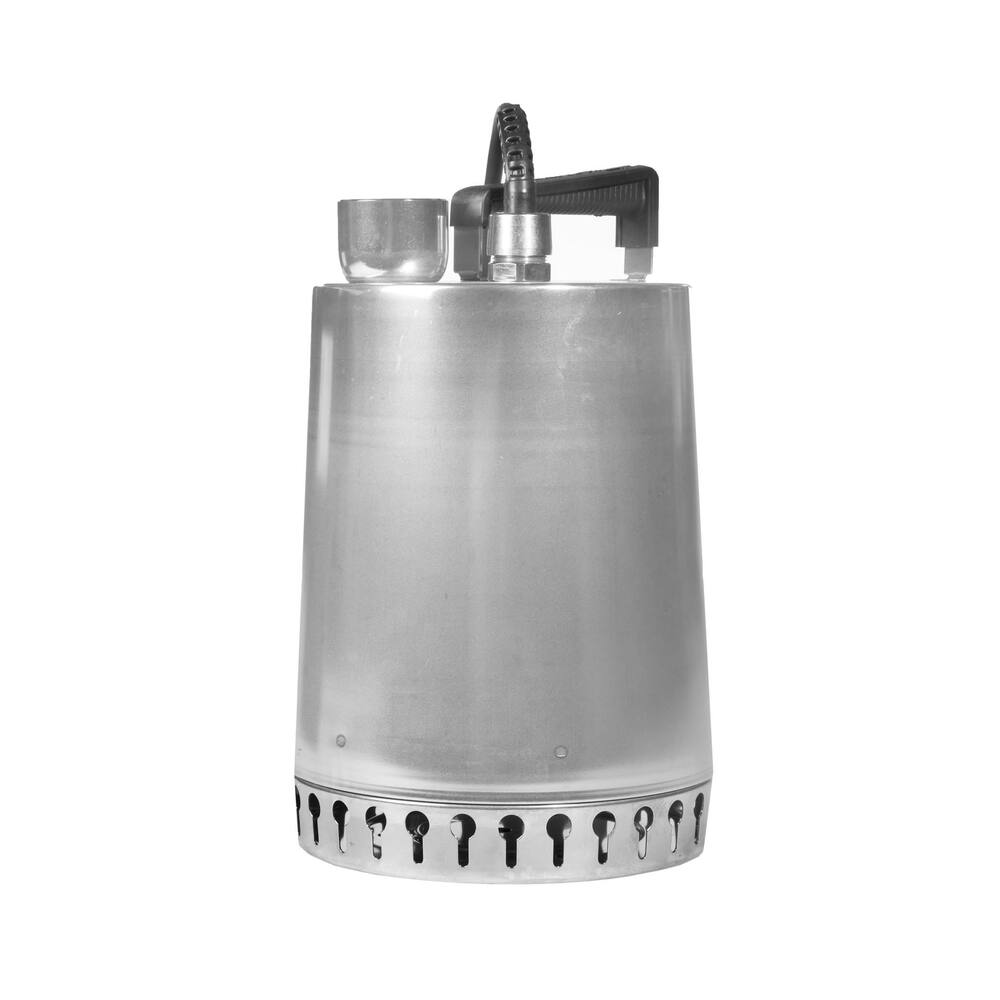

Grundfos AP 12.50.11.1 - Pump 230V
This model is a sturdy all stainless steel cylindrical pump, well-suited for maritime, construction, and industrial use. It excels as a bilge and ballast pump with enhanced flow capacity and larger dimensions.
- Type: AP12
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor (non-toxic)
- Fuse: inbuilt thermal safeguard (230V version only)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, impeller housing, motor housing, pump shaft: stainless steel 304
- Liquids handled: slightly contaminated water and water with somewhat higher acidity, continuous operation up to 55°C
- Flow at 10 m head: 18,700 litres per hour
- Flow at 15 m head: 6,500 litres per hour
- Minimum pumping level: 30 mm
- Maximum particle size: 12 mm (no sand or gravel)
- Connection: 2" internal thread
- Dimensions: diameter 241 mm, height 390 mm
- Weight: 15.1 kg
- Electrical: 230 V, 8.0 A
- Shaft power: 1.6 kW, 2.1 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug, also plug on pump side
- Product code: 90.15.111
- EAN code: 5700390476076
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 12 mm
- Discharge head Max.: 16.6 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 36000
- Capacity at 5 meter (L/hour): 28800
-
