ID
1316822
$ 2,253.88
1-2 weeks delivery time
-
+
The Grundfos AP 12.40.08.3 pump is the 400 V counterpart to the 230 V AP 12.40.08.1, maintaining the same stainless steel construction and performance characteristics. It delivers 11,100 liters per hour at 10 meters head, operates at 400 V with 2.1 A current, and is suitable for slightly contaminated water with a maximum discharge head of 14 meters, weighing 12.6 kg.
- Description
- Ask a Question
-

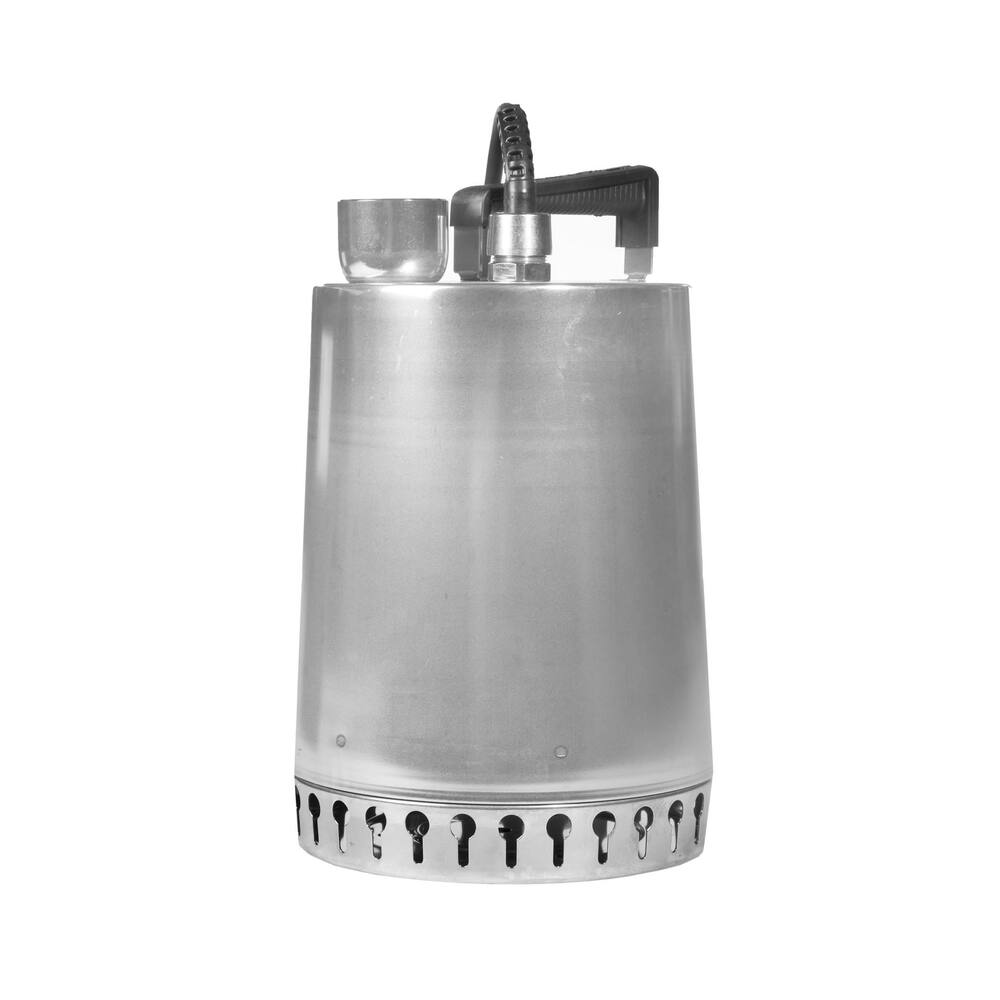

Grundfos AP 12.40.08.3 - Pump 400V
This pump maintains the same durable all stainless steel cylindrical design, ideal for use in shipping, construction, and industrial settings. It is tailored as an effective bilge and ballast pump with a higher voltage rating.
- Type: AP12
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor (non-toxic)
- Fuse: inbuilt thermal safeguard only in 230 volt versions (not applicable here)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, impeller housing, motor housing, pump shaft: stainless steel 304
- Liquids handled: slightly contaminated water and water with somewhat higher acidity, continuous operation up to 55°C
- Flow at 10 m head: 11,100 litres per hour
- Minimum pumping level: 30 mm
- Maximum particle size: 12 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 375 mm
- Weight: 12.6 kg
- Electrical: 400 V, 2.1 A
- Shaft power: 1.27 kW, 1.7 hp
- Cable: 10 metre neoprene H07RN-F without plug for 400V, also plug connection on pump side
- Product code: 90.14.083
- EAN code: 5700390897161
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 12 mm
- Discharge head Max.: 14.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 24000
- Capacity at 5 meter (L/hour): 19000
-
