ID
1316821
$ 2,335.84
1-2 weeks delivery time
-
+
The Grundfos AP 12.40.08.1 pump is a stainless steel submersible centrifugal pump with enhanced flow capacity, delivering 11,100 liters per hour at 10 meters head. It is designed for demanding environments like shipping and construction, operating at 230 V with a thermal safeguard and capable of pumping water with some acidity up to 55°C, with a maximum discharge head of 14 meters and a weight of 12.6 kg.
- Description
- Ask a Question
-

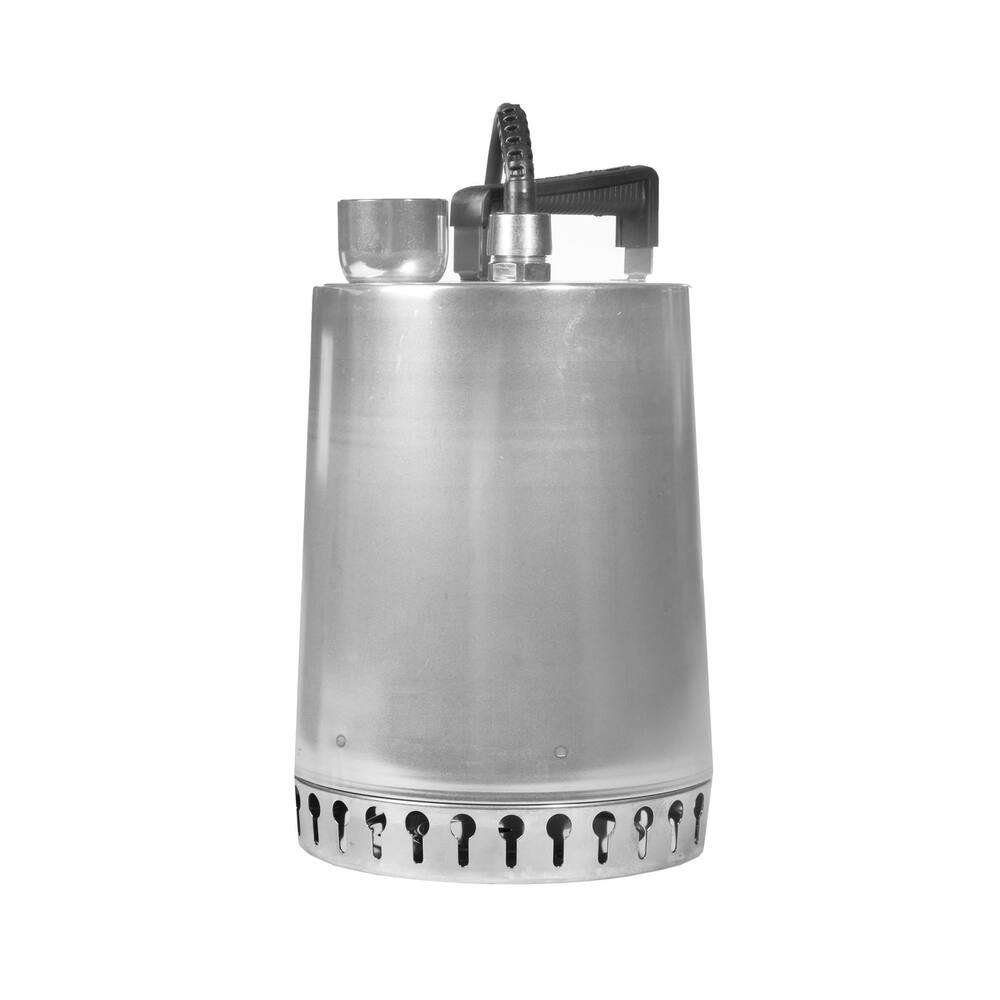

Grundfos AP 12.40.08.1 - Pump 230V
This pump features a robust all stainless steel cylindrical design, making it highly suitable for demanding environments such as shipping, construction, and industrial applications. It serves excellently as a bilge and ballast pump.
- Type: AP12
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor (non-toxic)
- Fuse: inbuilt thermal safeguard (230V version only)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, impeller housing, motor housing, pump shaft: stainless steel 304
- Liquids handled: slightly contaminated water and water with somewhat higher acidity, continuous operation up to 55°C
- Flow at 10 m head: 11,100 litres per hour
- Minimum pumping level: 30 mm
- Maximum particle size: 12 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 375 mm
- Weight: 12.6 kg
- Electrical: 230 V, 5.9 A
- Shaft power: 1.27 kW, 1.7 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug, also plug on pump side
- Product code: 90.14.081
- EAN code: 5700390474577
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 12 mm
- Discharge head Max.: 14.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 24000
- Capacity at 5 meter (L/hour): 19000
-
