ID
1316820
$ 1,991.23
1-2 weeks delivery time
-
+
The Grundfos AP 12.40.06.3 pump shares the same robust stainless steel cylindrical design and submersible centrifugal type as the 230V version but is engineered for 400 V operation. It is suitable for similar applications, handling slightly contaminated water with a maximum submersion depth of 10 meters and a flow rate of 7,200 liters per hour at 10 meters head, with a lower amperage of 1.6 A due to the higher voltage.
- Description
- Ask a Question
-

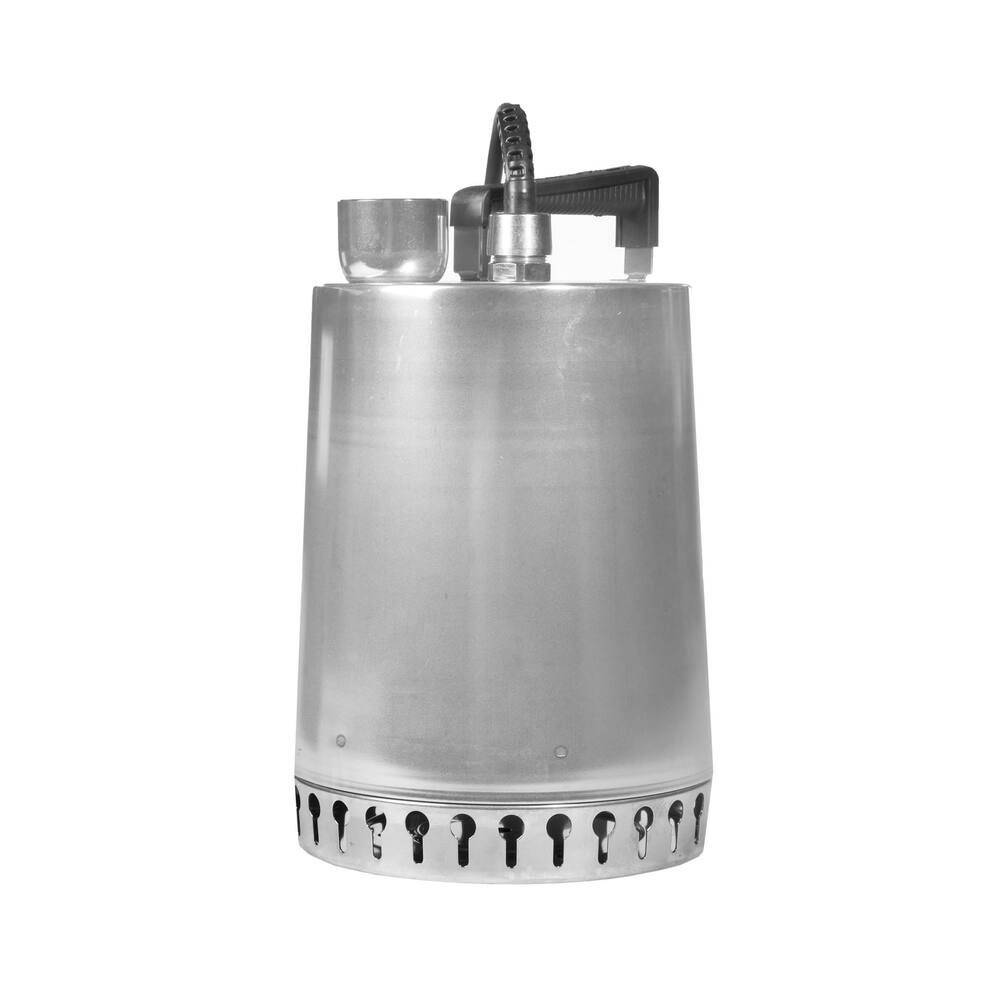

Grundfos AP 12.40.06.3 - Pump 400V
Engineered for tough conditions, this all stainless steel cylinder pump is perfect for shipping, construction, and industrial use. It is an ideal bilge and ballast pump with reliable performance.
- Type: AP12
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor (non-toxic)
- Fuse: inbuilt thermal safeguard (only for 230 V version)
- Shaft seal: carbon on ceramic mechanical seal, NBR rubber lip seal
- Submersion depth: maximum 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: slightly contaminated water and water with somewhat higher acidity, continuous temperature up to 55°C
- 10 metres head flow rate: 7,200 litres per hour
- Pumps down to: 30 mm
- Particle size: 12 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 355 mm
- Weight: 11.0 kg
- Amperage: 400 V, 1.6 A
- Shaft power: 0.94 kW, 1.25 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug, without plug for 400 V, also plug connection on pump side
- Product code: 90.14.063
- EAN code: 5700390896928
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Discharge head Max.: 12.7 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 22,000 L/Hour
- Capacity at 5 meter: 16,000 L/hour
- Particle size: 12 mm
-
