The Grundfos AP 12.40.06.1 pump is a durable stainless steel submersible centrifugal pump designed for shipping, construction, and industrial applications. It features an oil-filled motor, open impeller, and can handle slightly contaminated water with a maximum submersion depth of 10 meters, pumping up to 7,200 liters per hour at 10 meters head. It operates on 230 V with a thermal fuse safeguard and has a compact size and weight of 11 kg.
- Description
- Ask a Question
-

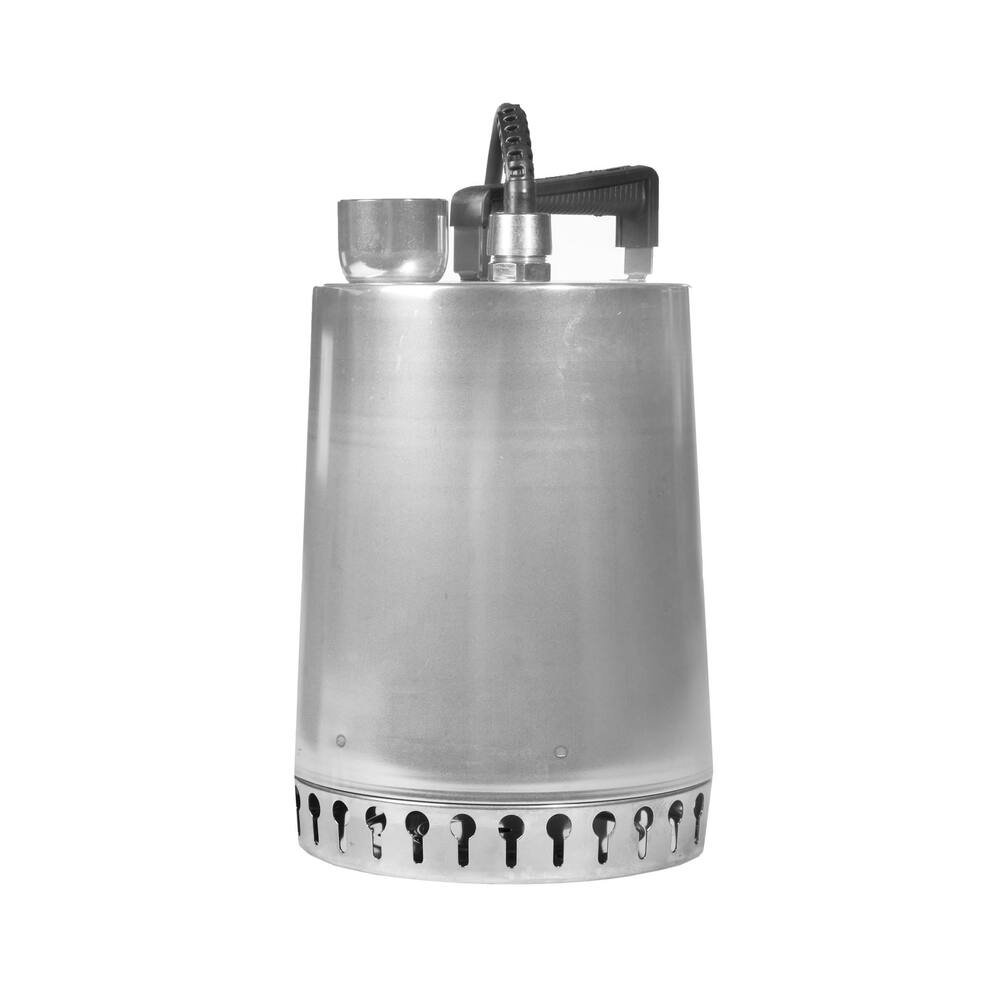

Grundfos AP 12.40.06.1 - Pump 230V
This pump is a durable stainless steel cylinder type well suited for applications in shipping, construction, and industry. It serves as a reliable bilge and ballast pump.
- Type: AP12
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor (non-toxic)
- Fuse: inbuilt thermal safeguard (only for 230 V version)
- Shaft seal: carbon on ceramic mechanical seal, NBR rubber lip seal
- Submersion depth: maximum 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: slightly contaminated water and water with somewhat higher acidity, continuous temperature up to 55°C
- 10 metres head flow rate: 7,200 litres per hour
- Pumps down to: 30 mm
- Particle size: 12 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 355 mm
- Weight: 11.0 kg
- Amperage: 230 V, 4.4 A
- Shaft power: 0.94 kW, 1.25 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug, also plug connection on pump side
- Product code: 90.14.061
- EAN code: 5700390471606
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Discharge head Max.: 12.7 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 22,000 L/Hour
- Capacity at 5 meter: 16,000 L/hour
- Particle size: 12 mm
-
