ID
1316818
$ 1,905.56
1-2 weeks delivery time
-
+
The Grundfos AP 12.40.04.3 is a robust stainless steel submersible centrifugal pump similar to the 230V AP12 model but designed for 400V operation. It features an oil-filled motor, no float switch, and pumps slightly contaminated water with particles up to 12 mm, with a maximum submersion depth of 10 meters and a free flow rate of 18,000 liters per hour .
- Description
- Ask a Question
-

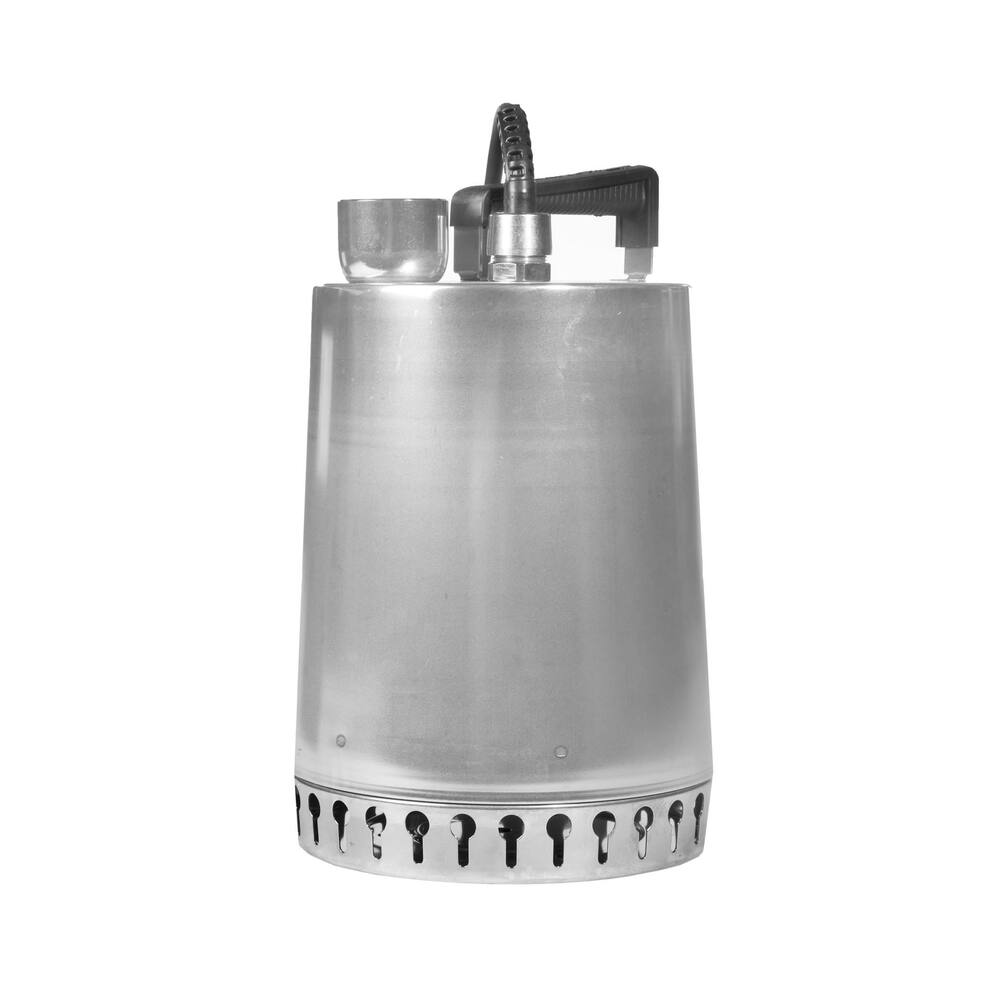

Grundfos AP 12.40.04.3 - Pump 400V
This robust pump features an all stainless steel cylinder construction, making it highly suitable for use in shipping, construction, and industrial environments. It excels as an effective bilge and ballast pump.
- Type: AP12
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor (non-toxic)
- Fuse: inbuilt thermal safeguard (only for 230 V version)
- Shaft seal: carbon on ceramic mechanical seal, NBR rubber lip seal
- Submersion depth: maximum 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: slightly contaminated water and water with somewhat higher acidity, continuous temperature up to 55°C
- Pumps down to: 30 mm
- Particle size: 12 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 355 mm
- Weight: 10.0 kg
- Amperage: 400 V, 1.3 A
- Shaft power: 0.7 kW, 0.9 hp
- Cable: 10 metre neoprene H07RN-F, with earthed plug, without plug for 400 V, also plug connection on pump side
- Product code: 90.14.043
- EAN code: 5700390901608
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Discharge head Max.: 9.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 18,000 L/Hour
- Capacity at 5 meter: 11,000 L/hour
- Particle size: 12 mm
-
