The Grundfos AP 12.40.04.1 is a strong stainless steel submersible centrifugal pump without a float switch, featuring an oil-filled motor. It is designed for shipping, construction, and industrial use, pumping slightly contaminated water with particles up to 12 mm, operating at 230V with a maximum submersion depth of 10 meters and a free flow rate of 18,000 liters per hour .
- Description
- Ask a Question
-

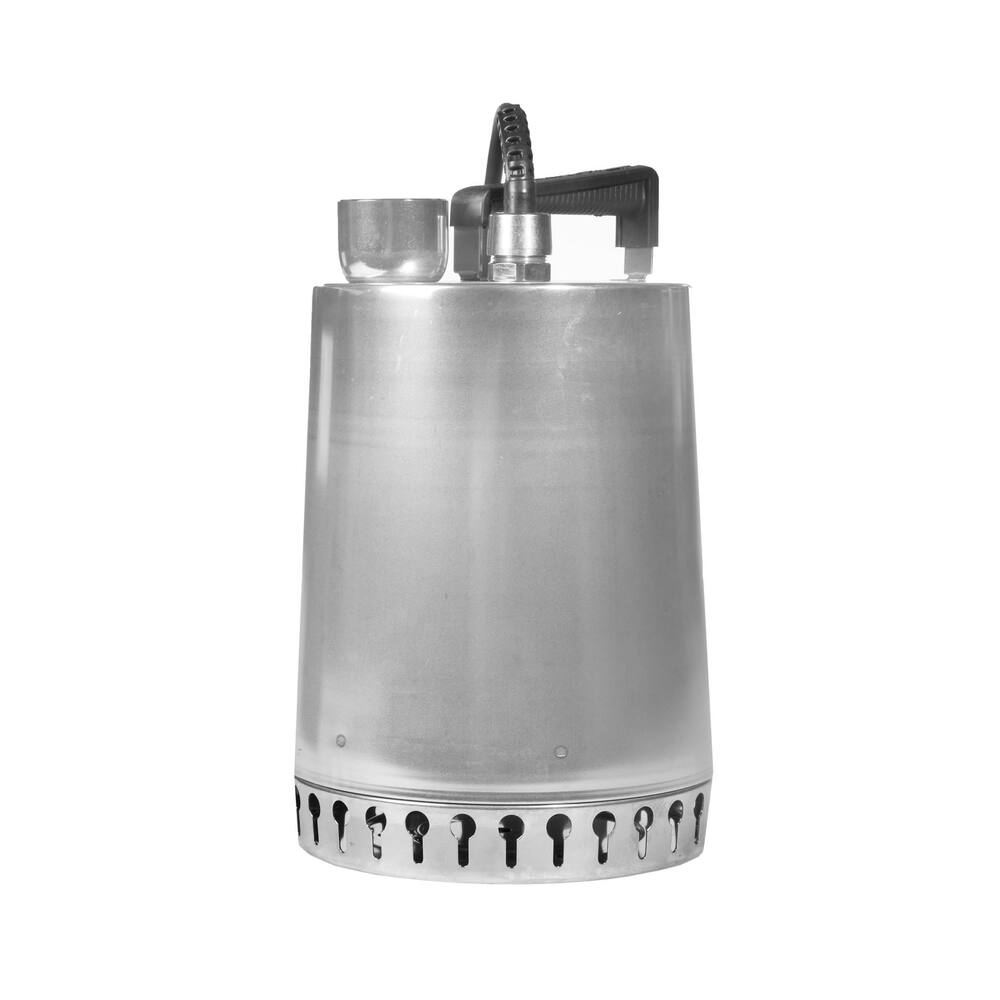

Grundfos AP 12.40.04.1 - Pump 230V
Constructed entirely of stainless steel, this strong cylinder pump is well-suited for shipping, construction, and industrial use. It functions as a dependable bilge and ballast pump without a float switch, featuring an oil-filled motor.
- Type: AP12
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor (non-toxic)
- Fuse: inbuilt thermal safeguard (230V version only)
- Shaft seal: carbon on ceramic mechanical seal with NBR rubber lip seal
- Maximum submersion depth: 10 metres
- Material impeller, housing, motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Suitable liquids: slightly contaminated water and water with somewhat higher acidity, continuously at 55°C
- Minimum pumping level: 30 mm
- Maximum particle size: 12 mm (no sand or gravel)
- Connection: 1.1/2" internal thread
- Dimensions: diameter 216 mm, height 355 mm
- Weight: 10.0 kg
- Amperage: 3.1 A at 230 V
- Shaft power: 0.7 kW, 0.9 hp
- Cable: 10 metre neoprene H07RN-F with earthed plug and pump-side plug connection
- Product code: 90.14.041
- EAN code: 5700390525361
- Pipe diameter pressure: 1.1/2"
- Discharge head max.: 9.5 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: No
- Free flow: 18,000 L/hour
- Capacity at 5 meters: 11,000 L/hour
-
