Ulex-BB-3T (Showfou SP-332E) Pump 400V

ID 1317064

$ 1,899.97

1-2 weeks delivery time

- +

Add to cart

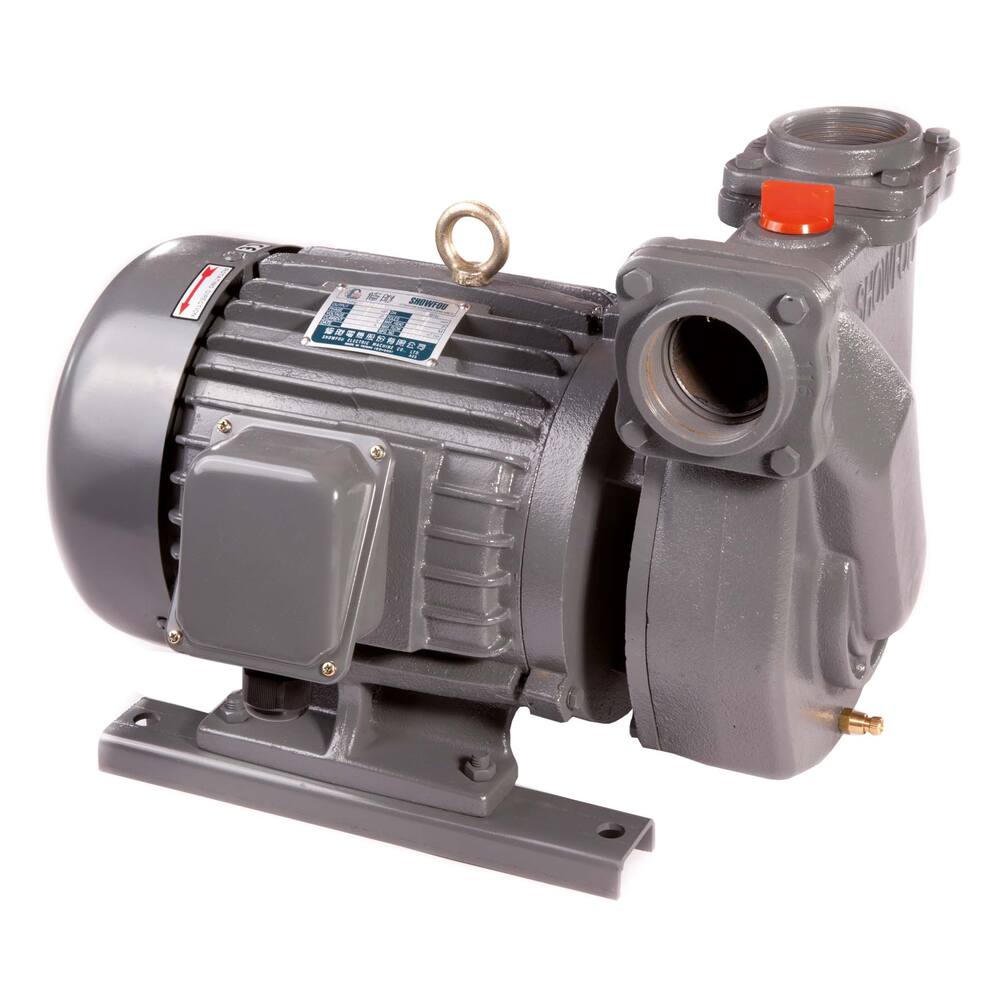

The Ulex-BB-3T (Showfou SP-332E) Pump is a grey self-priming centrifugal pump ideal for deck wash and agricultural sprinkling, featuring a closed brass impeller and cast iron housing. It handles clean to slightly contaminated water with a maximum discharge head of 32.1 meters and a capacity of up to 18,600 liters per hour at 5 meters head. The pump operates on 400V AC with a 2.2 kW motor and requires checking the rotation direction after installation to avoid impeller slippage.

Description
Ask a Question

Ulex-BB-3T (Showfou SP-332E) Pump 400V

This grey self-priming centrifugal pump is an excellent choice for deck wash and agricultural sprinkling. It offers great value and requires checking the rotation direction after installation to prevent impeller slippage.
- Type: BB
- Colour: grey
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor
- Fuse: NOT inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: brass
- Material impeller chamber: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean to slightly contaminated water
- Performance at different heads:
  - 10 m head: 17,400 litres/hour
  - 15 m head: 16,800 litres/hour
  - 20 m head: 15,600 litres/hour
  - 25 m head: 13,800 litres/hour
  - 30 m head: 11,900 litres/hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 460 x 290 x 345 mm
- Weight: 53 kg
- Insulation class: IP54
- Amperage: 5.2 A
- Shaft power: 2.2 kW, 3.0 hp, 2800 rpm
- Product code: 92.25.423
- Suction head: 6.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Dry set-up pump: self-priming
- Medium: Water
- Particle size: 3 mm
- Discharge head max: 32.1 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 18,600 L/hour
- Capacity at 5 meters: 18,600 L/hour
