ID
1316718
$ 8,781.75
1-2 weeks delivery time
-
+
The Alpha Pompe Pump ORAC-T 20 HP 400V is suitable for deck wash and bilge pump duties on commercial shipping, large pleasure crafts, and coastal vessels, also performing well in sprinkling, irrigation, dewatering, and industrial cooling. It is a self-priming centrifugal pump with a closed impeller, cast iron parts, and stainless steel shaft, handling contaminated and sea water up to 90°C. Operating at 400 volts, it delivers 63,000 liters per hour at 36 meters head with a maximum discharge head of 75 meters, and weighs 145 kg.
- Description
- Ask a Question
-

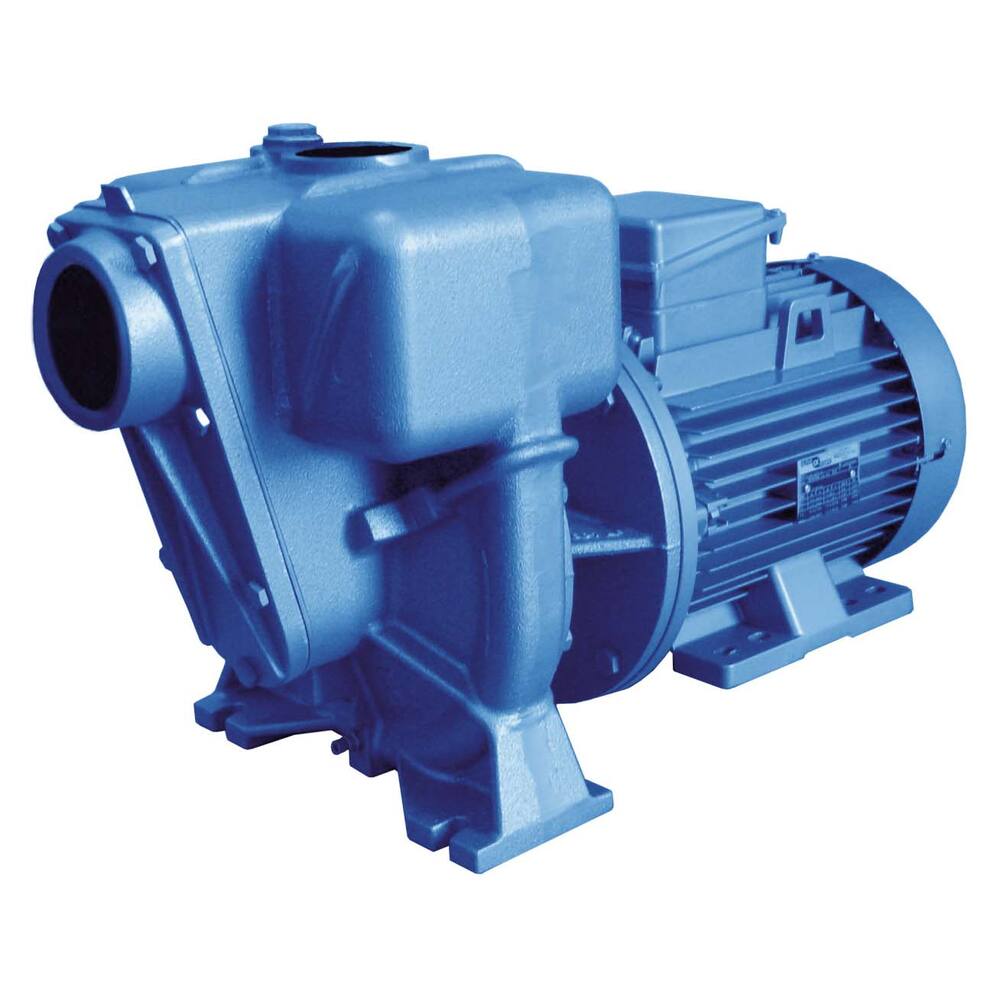

Alpha Pompe Pump ORAC-T 20 HP 400V
Suitable for deck wash and bilge pump duties on commercial shipping, large pleasure crafts, and coastal vessels, this pump also performs well in sprinkling, irrigation, dewatering, and industrial cooling applications.
- Type: 0RAC-T-20
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance at various heads:
- 36 m: 63,000 L/h
- 40 m: 59,400 L/h
- 45 m: 54,000 L/h
- 50 m: 48,900 L/h
- 55 m: 42,000 L/h
- 60 m: 32,400 L/h
- 65 m: 22,200 L/h
- 70 m: 12,000 L/h
- Dimensions (LxWxH): 840 x 350 x 421 mm
- Weight: 145 kg
- Amperage: 18.5 A
- Shaft power: 15.0 kW, 20.0 hp, 2800 rpm
- Product code: 92.12.520
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 3"
- Pump type: Dry set-up, self-priming
- Medium: Water
- Particle size: 5 mm
- Maximum discharge head: 75.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 63,000 L/hour
- Capacity at 5 meter head: 63,000 L/hour
-
