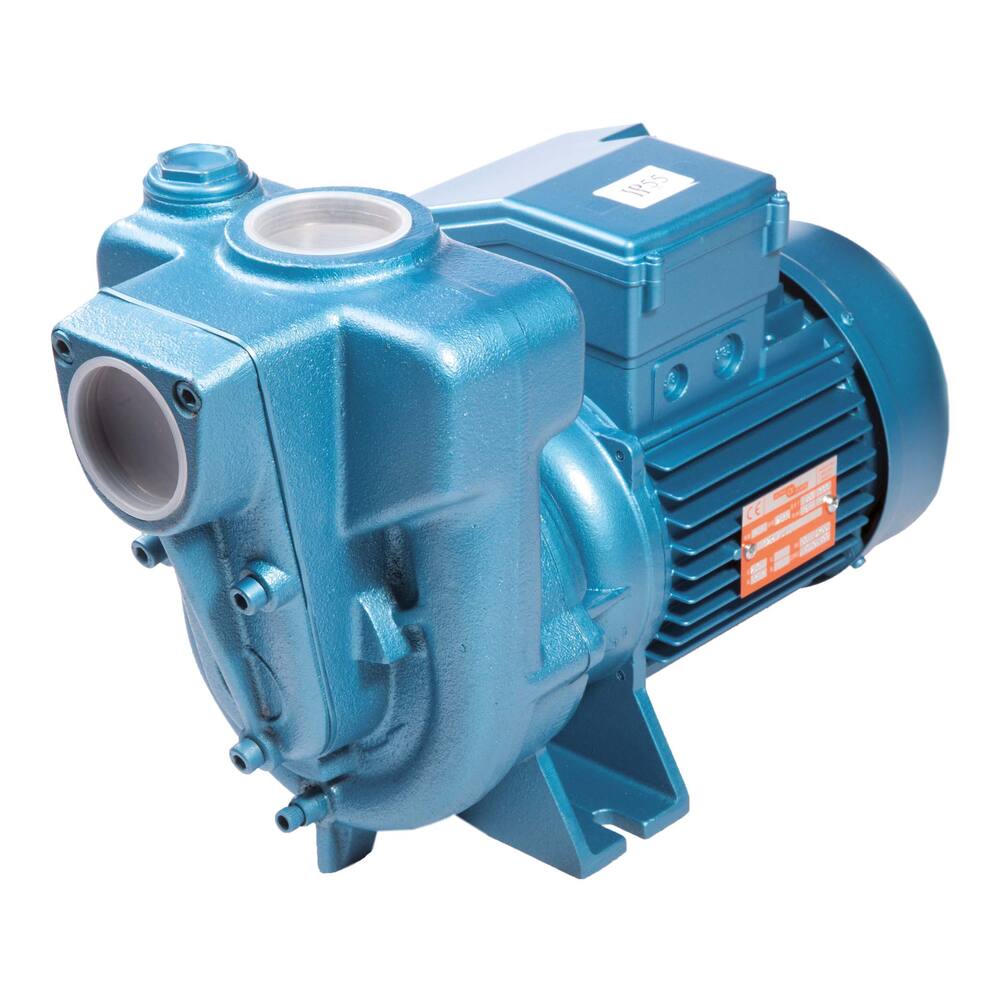

The Alpha Pompe Pump F02RA-T is a 3 HP dirty water pump powered by a 400V short circuit motor, designed for dirty water containing solids and higher viscosity. It has a self-priming centrifugal pump with an open cast iron impeller and housing, stainless steel shaft, and can handle particles up to 14 mm. It delivers up to 27,000 liters per hour at free flow with a maximum discharge head of 19 meters and weighs about 30.5 kg.
- Description
- Ask a Question
-
Alpha Pompe Pump F02RA-T 3 HP Dirty Water 400V
Equipped with a powerful motor, this pump is intended for dirty water containing solids, higher viscosity, or heavier specific gravity. It is suitable for removing dirty water and faeces without coarse or hard parts.
- Type: F 02RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor with 400 volt
- Fuse: inbuilt thermal safeguard (only with 230 volt motors)
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids: water with many solids, higher viscosity or specific gravity
- Performance at 10 metres head: 25,200 litres per hour
- Performance at 15 metres head: 16,200 litres per hour
- Connections: 2" internal thread
- Dimensions (L×W×H): approx. 502 × 205 × 321 mm
- Weight: approx. 30.5 kg
- Amperage: 5.7 A
- Shaft power: 2.2 kW, 3.0 hp, 2800 rpm
- Product code: 92.92.040
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Pump type: Dry set-up pump, self-priming
- Medium: water, including with coarse components
- Maximum particle size: 14 mm
- Maximum discharge head: 19.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: not included
- Free flow: 27,000 L/hour
- Capacity at 5 meters: 27,000 L/hour
-
