ID
1316724
$ 1,180.03
1-2 weeks delivery time
-
+
The Alpha Pompe Pump F01.1/2RA-T is a 1.5 HP dirty water pump operating on 400V, suitable for dirty water with solids and higher viscosity. It features a self-priming centrifugal pump with an open cast iron impeller and housing, stainless steel shaft, and a short circuit motor. It can pump up to 17,400 liters per hour with a maximum discharge head of 18 meters, handling particles up to 9 mm in size.
- Description
- Ask a Question
-

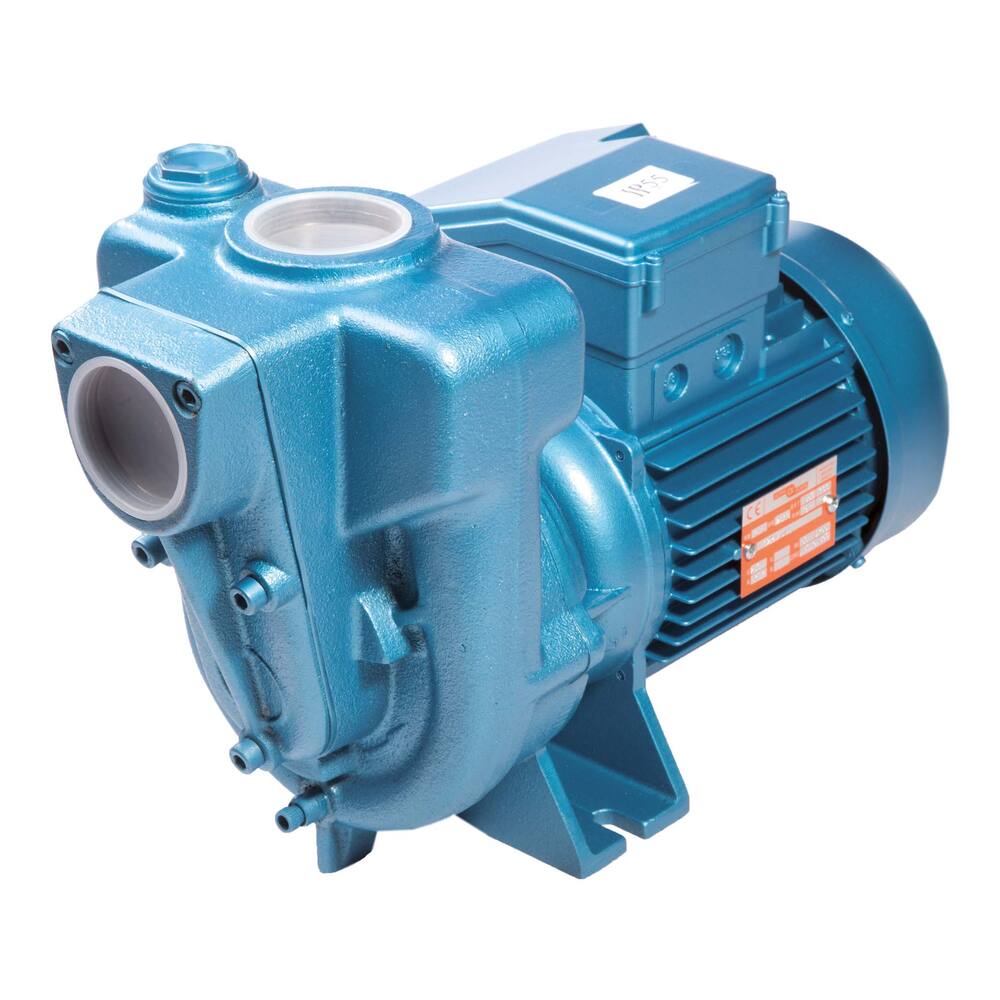

Alpha Pompe Pump F01.1/2RA-T 1.5 HP Dirty Water 400V
Designed for handling dirty water containing solids, higher viscosity, or increased specific gravity, these pumps feature a robust motor for efficient performance. Ideal for pumping out dirty water tanks and faeces without coarse or hard components.
- Type: F 01½RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor with 400 volt
- Fuse: inbuilt thermal safeguard (only with 230 volt motors)
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids: water with many solids, higher viscosity or specific gravity
- Performance at 10 metres head: 15,900 litres per hour
- Performance at 15 metres head: 9,300 litres per hour
- Connections: 1.1/2" internal thread
- Dimensions (L×W×H): approx. 426 × 190 × 288 mm
- Weight: approx. 23.5 kg
- Amperage: 400 V, 3.0 A
- Shaft power: 1.1 kW, 1.5 hp, 2800 rpm
- Product code: 92.92.035
- Suction head: 7.0 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: water, including with coarse components
- Maximum particle size: 9 mm
- Maximum discharge head: 18.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: not included
- Free flow: 17,400 L/hour
- Capacity at 5 meters: 17,100 L/hour
-
