The Alpha Pompe Pump F01.1/2RA-M is a 1.5 HP dirty water pump running on 230V, designed for dirty water with solids and higher viscosity. It uses a self-priming centrifugal pump with an open cast iron impeller and housing, and a stainless steel shaft. It includes an inbuilt thermal safeguard fuse and can handle particle sizes up to 9 mm, delivering up to 17,400 liters per hour at free flow and a maximum discharge head of 18 meters.
- Description
- Ask a Question
-

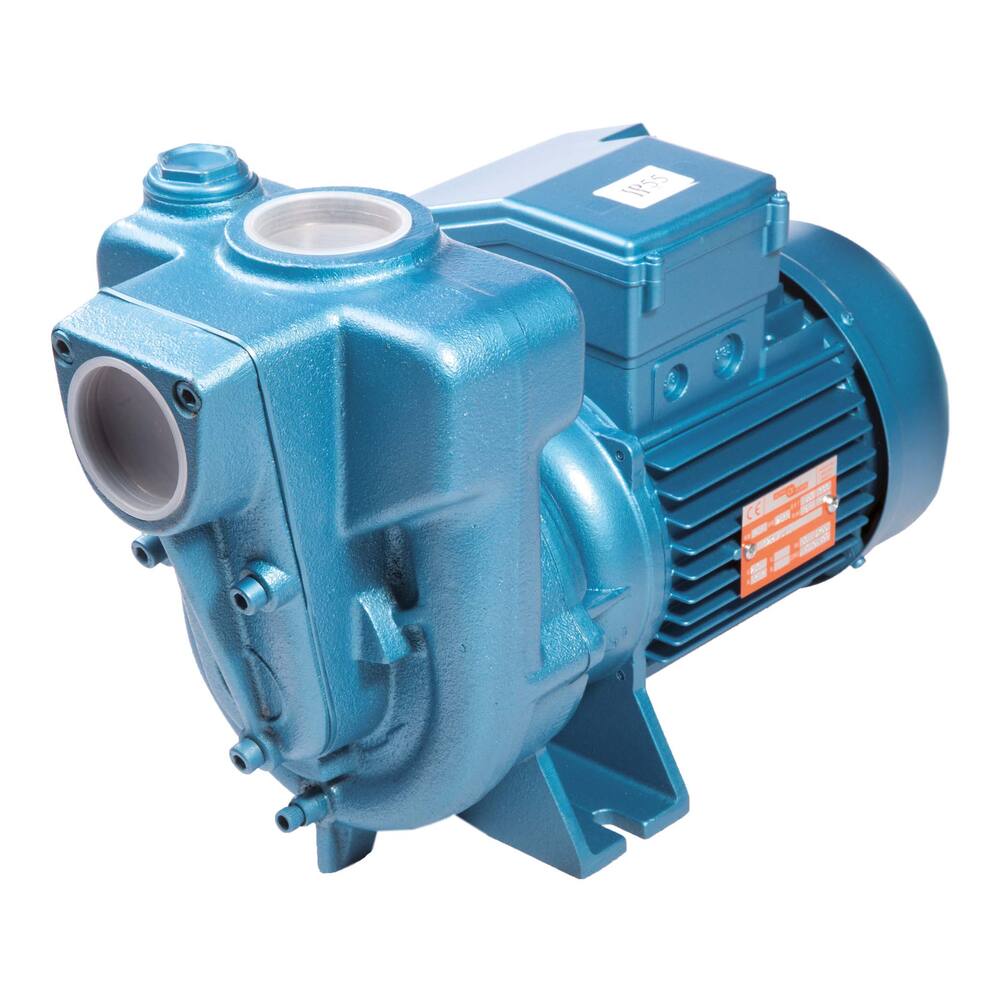

Alpha Pompe Pump F01.1/2RA-M 1.5 HP Dirty Water 230V
Designed specifically for dirty water containing solids, higher viscosity, or heavier specific gravity, this pump features an extra powerful motor. It is suitable for pumping out dirty water tanks and faeces without coarse or hard components.
- Type: F 01½RA-M
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: induction motor with 230 volt
- Fuse: inbuilt thermal safeguard (only with 230 V motors)
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids: water with many solids, higher viscosity, or higher specific gravity
- 10 metres head flow rate: 15,900 litres per hour
- 15 metres head flow rate: 9,300 litres per hour
- Connections: 1.1/2" internal thread
- Dimensions (LxWxH): approx. 426 x 190 x 288 mm
- Weight: approx. 23.5 kg
- Amperage: 230 V, 8.0 A
- Shaft power: 1.1 kW, 1.5 hp, 2800 rpm
- Product code: 92.92.030
- Suction head: 7.0 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water, Water with coarse components
- Particle size: 9 mm
- Discharge head Max.: 18.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Fuel: -
- Protection class: IP68
- ATEX: No
- Separate float switch: -
- Free flow (L/Hour): 17,400
- Capacity 5 meter (L/hour): 17,100
-
