ID
1316717
$ 7,477.86
1-2 weeks delivery time
-
+
The Alpha Pompe Pump ORAC-T 15 HP 400V is engineered for deck wash and bilge operations on commercial vessels, large pleasure crafts, and coastal shipping, also effective for sprinkling, irrigation, dewatering, and industrial cooling. This self-priming centrifugal pump features a closed impeller, cast iron construction, and stainless steel shaft, handling contaminated and sea water up to 90°C. It operates at 400 volts, delivering 42,000 liters per hour at 30 meters head with a maximum discharge head of 63 meters, and weighs 135 kg.
- Description
- Ask a Question
-

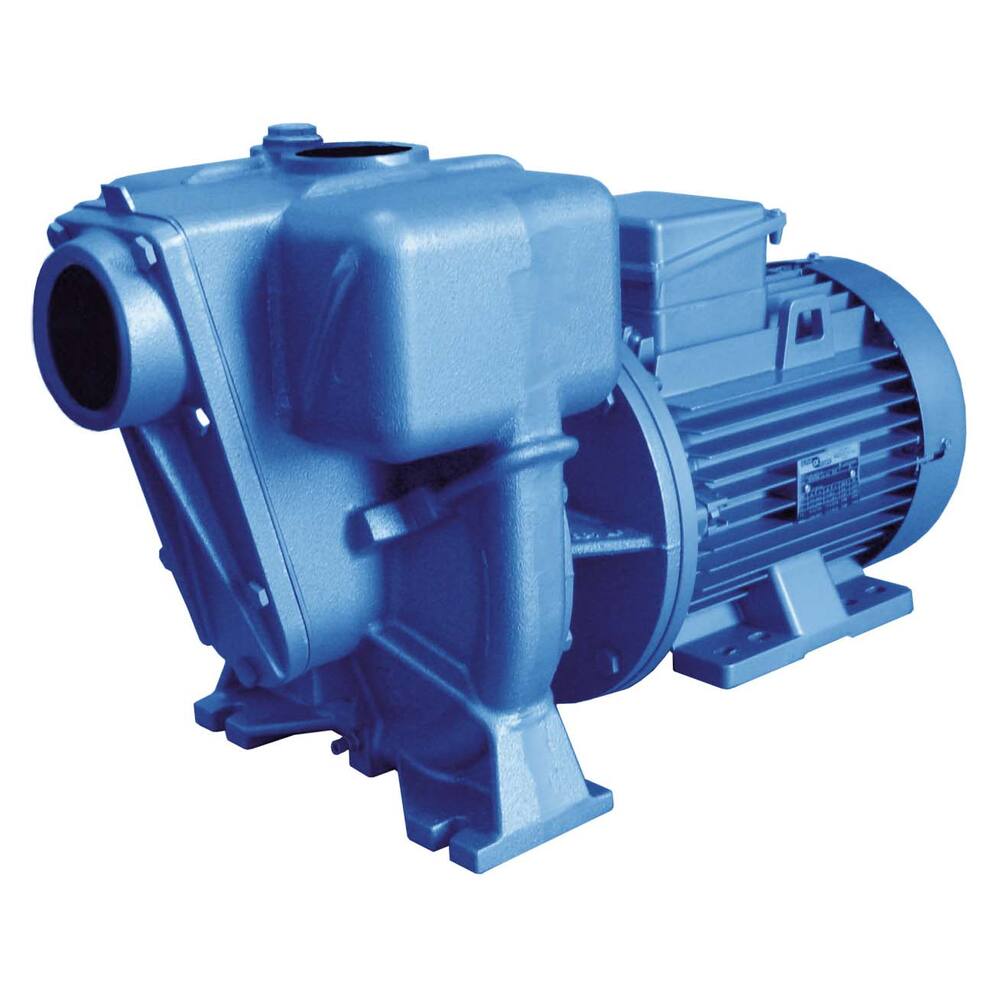

Alpha Pompe Pump ORAC-T 15 HP 400V
This pump is engineered for deck wash and bilge operations on commercial vessels, large pleasure crafts, and coastal shipping. It is also effective for sprinkling, irrigation, dewatering, and acting as a cooling medium pump in industrial environments.
- Type: 0RAC-T-15
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance at various heads:
- 30 m: 42,000 L/h
- 35 m: 39,600 L/h
- 40 m: 37,200 L/h
- 45 m: 33,600 L/h
- 50 m: 29,100 L/h
- 55 m: 24,000 L/h
- 60 m: 14,100 L/h
- Dimensions (LxWxH): 840 x 350 x 421 mm
- Weight: 135 kg
- Amperage: 13.3 A
- Shaft power: 11.0 kW, 15.0 hp, 2800 rpm
- Product code: 92.12.515
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 3"
- Pump type: Dry set-up, self-priming
- Medium: Water
- Particle size: 3 mm
- Maximum discharge head: 63.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 42,000 L/hour
- Capacity at 5 meter head: 42,000 L/hour
-
