ID
1316716
$ 6,035.42
1-2 weeks delivery time
-
+
The Alpha Pompe Pump ORAC-T 10 HP 400V is designed for deck wash and bilge applications on commercial shipping, large pleasure crafts, and coastal vessels, also suitable for sprinkling, irrigation, dewatering, and industrial cooling. It is a self-priming centrifugal pump with a closed impeller, cast iron parts, and stainless steel shaft, handling contaminated and sea water up to 90°C. Operating at 400 volts, it delivers a flow of 37,800 liters per hour at 20 meters head with a maximum discharge head of 62 meters, and weighs 105 kg.
- Description
- Ask a Question
-

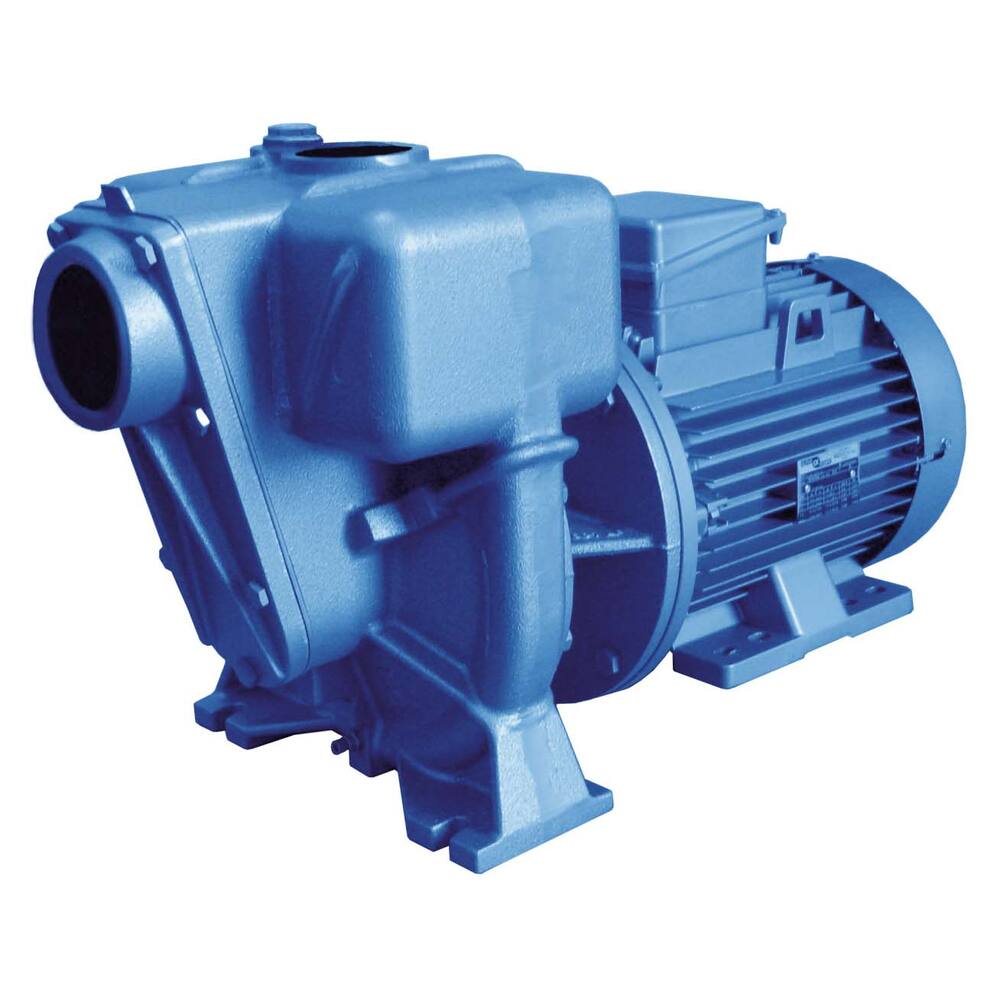

Alpha Pompe Pump ORAC-T 10 HP 400V
Designed for deck wash and bilge applications in commercial shipping, large pleasure crafts, and coastal vessels, this pump is also suitable for sprinkling, irrigation, dewatering, and industrial cooling medium purposes.
- Type: 0RAC-T-10
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance at various heads:
- 20 m: 37,800 L/h
- 25 m: 36,000 L/h
- 30 m: 34,200 L/h
- 35 m: 32,400 L/h
- 40 m: 30,000 L/h
- 45 m: 27,300 L/h
- 50 m: 22,800 L/h
- 55 m: 18,000 L/h
- 60 m: 9,000 L/h
- Dimensions (LxWxH): 740 x 325 x 421 mm
- Weight: 105 kg
- Amperage: 9.1 A
- Shaft power: 7.5 kW, 10.0 hp, 2800 rpm
- Product code: 92.12.310
- Suction head: 7.0 m
- Pipe diameter pressure: 1½"
- Pipe diameter suction: 2"
- Pump type: Dry set-up, self-priming
- Medium: Water
- Particle size: 4 mm
- Maximum discharge head: 62.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 37,800 L/hour
- Capacity at 5 meter head: 37,800 L/hour
-
