ID
1316722
$ 10,370.89
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 04RAC-T 25 HP 400V is a robust self-priming centrifugal pump with a closed impeller, suitable for commercial shipping, large pleasure craft, and coastal vessels. It supports deck wash, bilge, sprinkler, irrigation, dewatering, and industrial cooling applications. Made of cast iron with a stainless steel shaft, it handles contaminated and sea water up to 90°C, operates at 400 volts, delivers 120,000 liters per hour at 32 meters head, and has a maximum discharge head of 46 meters, weighing 190 kg.
- Description
- Ask a Question
-

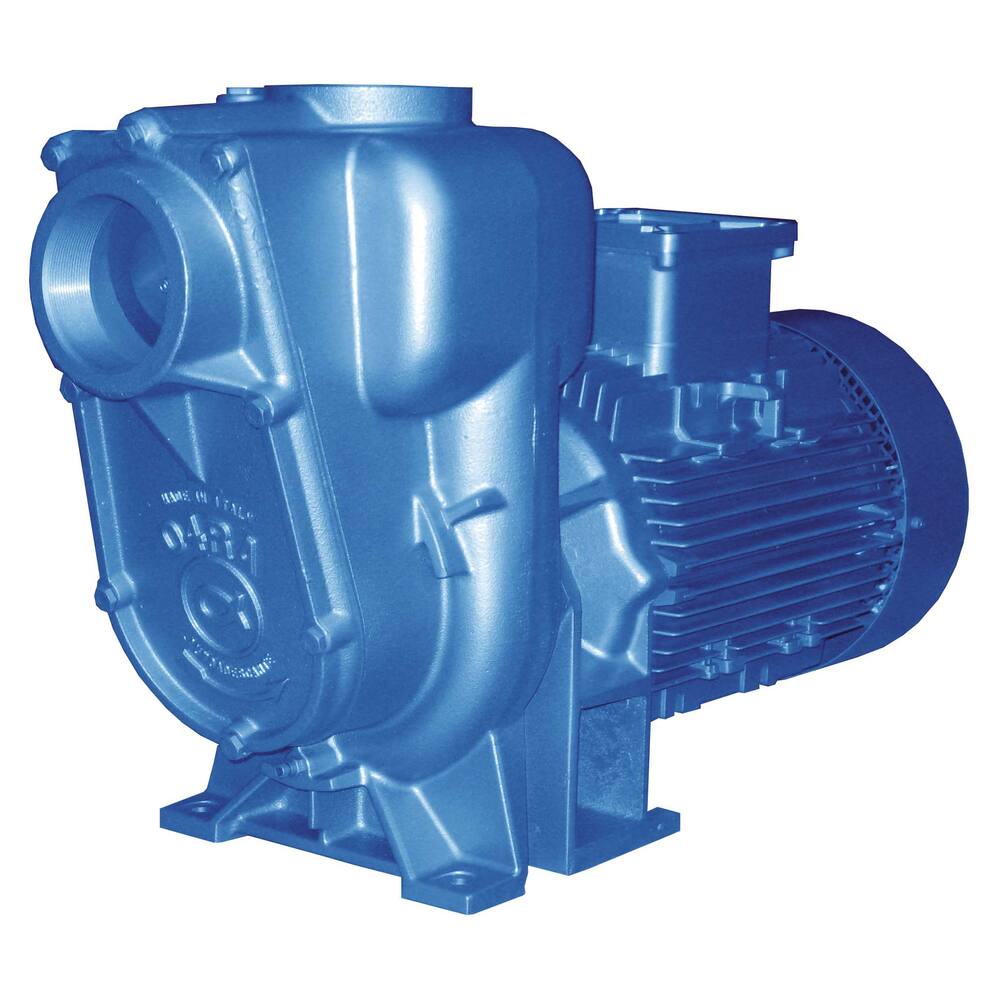

Alpha Pompe Pump 04RAC-T 25 HP 400V
These robust pumps are ideal for commercial shipping, large pleasure craft, and coastal vessels, supporting deck wash and bilge operations as well as sprinkler, irrigation, dewatering, and industrial cooling applications.
- Type: 04RAC-T
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 32 m head: 120,000 l/h
- 35 m head: 105,000 l/h
- 40 m head: 75,000 l/h
- 45 m head: 48,000 l/h
- Connections: 4" internal thread
- Dimensions (LxWxH): 861 x 313 x 558 mm
- Weight: 190 kg
- Amperage: 24.0 A
- Shaft power: 18.5 kW, 25.0 hp, 2800 rpm
- Product code: 92.12.925
- Suction head: 7.0 m
- Pipe diameter pressure: 4"
- Pipe diameter suction: 4"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 15 mm
- Max discharge head: 46.0 m
- Voltage: 400/690 V
- Current: AC, Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 120,000 l/h
- Capacity at 5 m: 120,000 l/h
-
