ID
1316721
$ 5,277.53
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 03RAE-T 10 HP 400V is ideal for commercial vessels and coastal shipping, performing deck wash and bilge functions along with sprinkling, irrigation, dewatering, and industrial cooling. This self-priming centrifugal pump has a closed impeller, cast iron parts, and a stainless steel shaft, handling contaminated and sea water up to 90°C. It operates at 400 volts, providing a flow of 60,000 liters per hour at 10 meters head, with a maximum discharge head of 42 meters and weighs 90 kg.
- Description
- Ask a Question
-

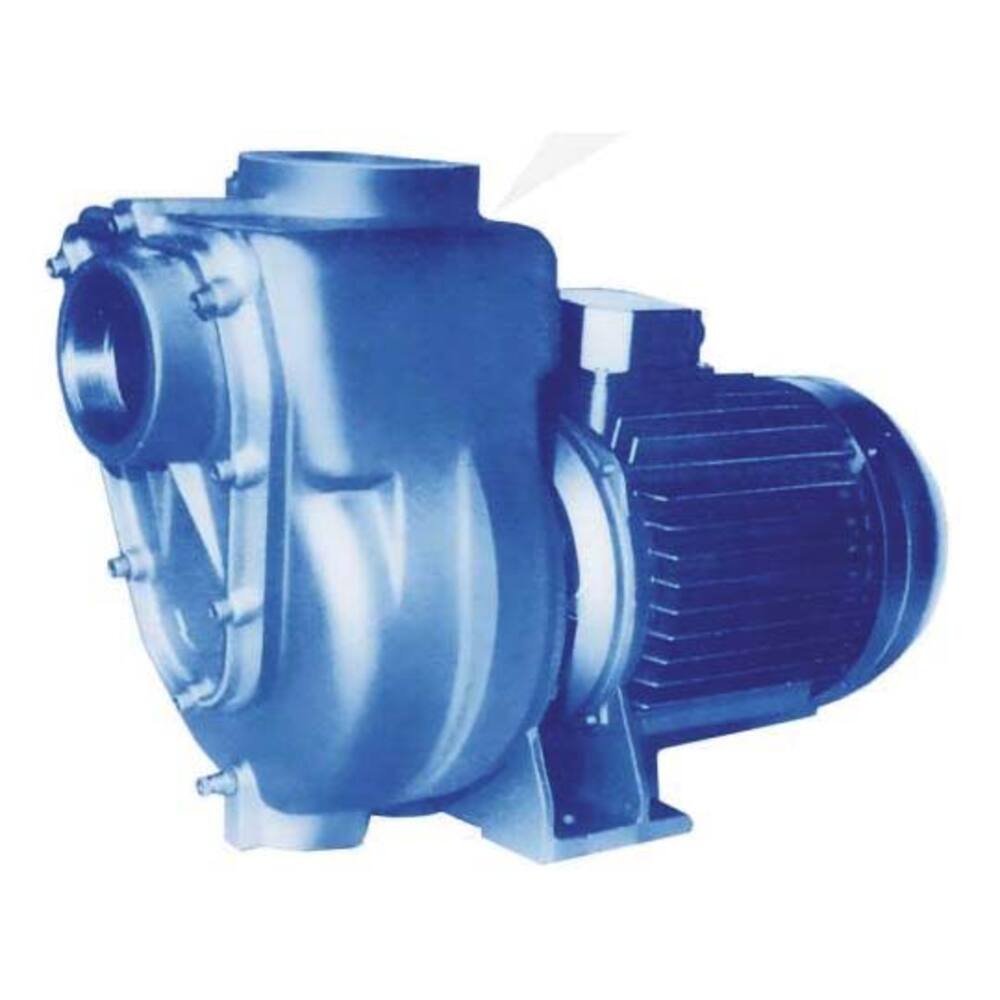

Alpha Pompe Pump 03RAE-T 10 HP 400V
Perfect for commercial vessels and coastal shipping, these pumps handle deck wash and bilge functions, and are also suitable for sprinkling, irrigation, dewatering, and industrial cooling medium uses.
- Type: 03RAE-T
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 m head: 60,000 l/h
- 15 m head: 59,400 l/h
- 20 m head: 46,800 l/h
- 25 m head: 39,000 l/h
- 30 m head: 30,000 l/h
- 35 m head: 19,800 l/h
- 40 m head: 6,000 l/h
- Connections: 3" internal thread
- Dimensions (LxWxH): 690 x 270 x 385 mm
- Weight: 90 kg
- Amperage: 11.0 A
- Shaft power: 7.5 kW, 10.0 hp, 2800 rpm
- Product code: 92.12.810
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 6 mm
- Max discharge head: 42.0 m
- Voltage: 400/690 V
- Current: AC, Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 60,000 l/h
- Capacity at 5 m: 60,000 l/h
-
