The Alpha Pompe Pump 03RAD-T 7.5 HP 400V is a self-priming centrifugal pump with a closed impeller, designed for deck wash and bilge duties on commercial and pleasure vessels, as well as sprinkling, irrigation, dewatering, and industrial cooling. It features cast iron construction, a stainless steel shaft, and handles contaminated and sea water up to 90°C. It operates at 400 volts, delivering up to 54,000 liters per hour at 10 meters head, with a maximum discharge head of 38 meters and weighs 85 kg.
- Description
- Ask a Question
-

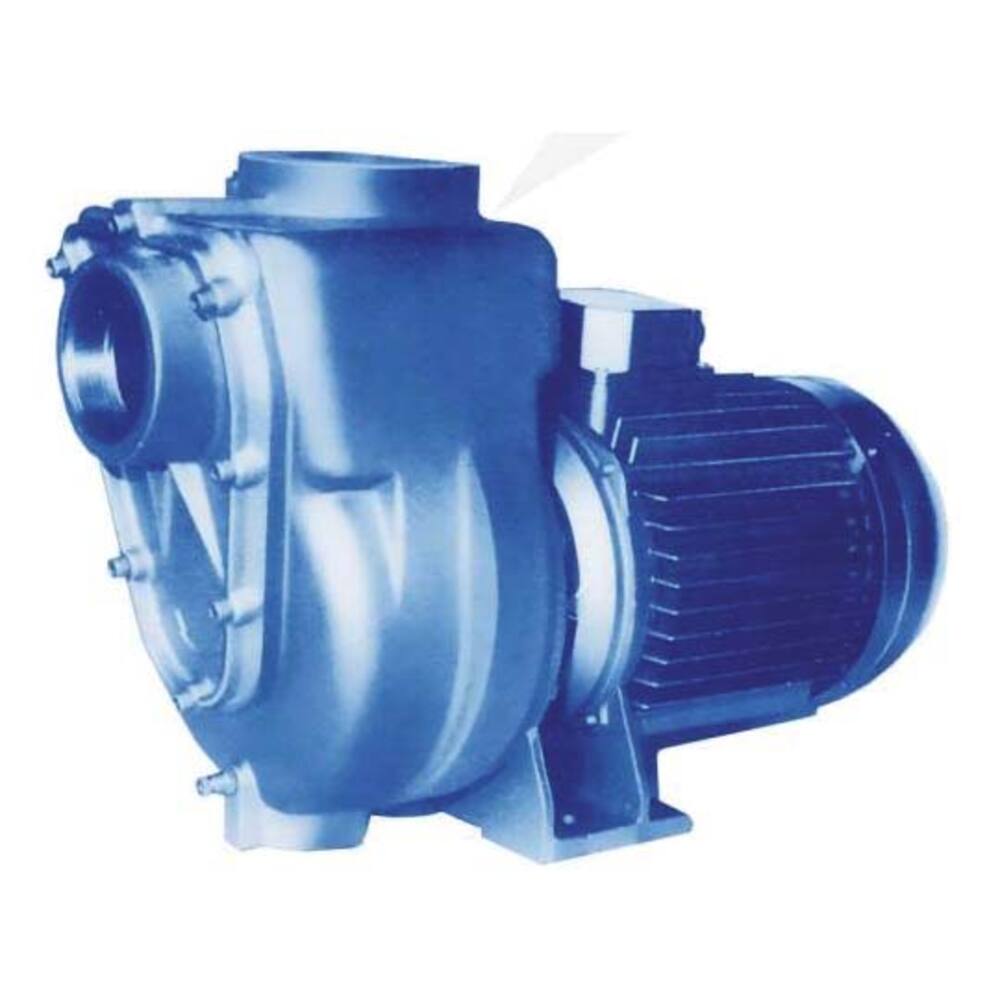

Alpha Pompe Pump 03RAD-T 7.5 HP 400V
These pumps serve commercial and pleasure vessels as deck wash and bilge pumps, and are also applicable for sprinkling, irrigation, dewatering, and industrial cooling pumping tasks.
- Type: 03RAD-T
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 m head: 54,000 l/h
- 15 m head: 46,800 l/h
- 20 m head: 40,500 l/h
- 25 m head: 33,000 l/h
- 30 m head: 24,000 l/h
- 35 m head: 9,900 l/h
- Dimensions (LxWxH): 585 x 270 x 385 mm
- Weight: 85 kg
- Amperage: 7.6 A
- Shaft power: 5.5 kW, 7.5 hp, 2800 rpm
- Product code: 92.12.807
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 6 mm
- Max discharge head: 38.0 m
- Voltage: 400/690 V
- Current: AC, Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 54,000 l/h
- Capacity at 5 m: 54,000 l/h
-
