The Alpha Pompe Pump 03RAC-T 5.5 HP 400V is designed for commercial shipping, large pleasure craft, and coastal shipping, excelling in deck wash and bilge applications as well as sprinkling, irrigation, dewatering, and industrial cooling. It is a self-priming centrifugal pump with a closed impeller, cast iron construction, and stainless steel shaft, handling contaminated and sea water up to 90°C. It operates at 400 volts, delivering 42,000 liters per hour at 14 meters head with a maximum discharge head of 35 meters, and weighs 80 kg.
- Description
- Ask a Question
-

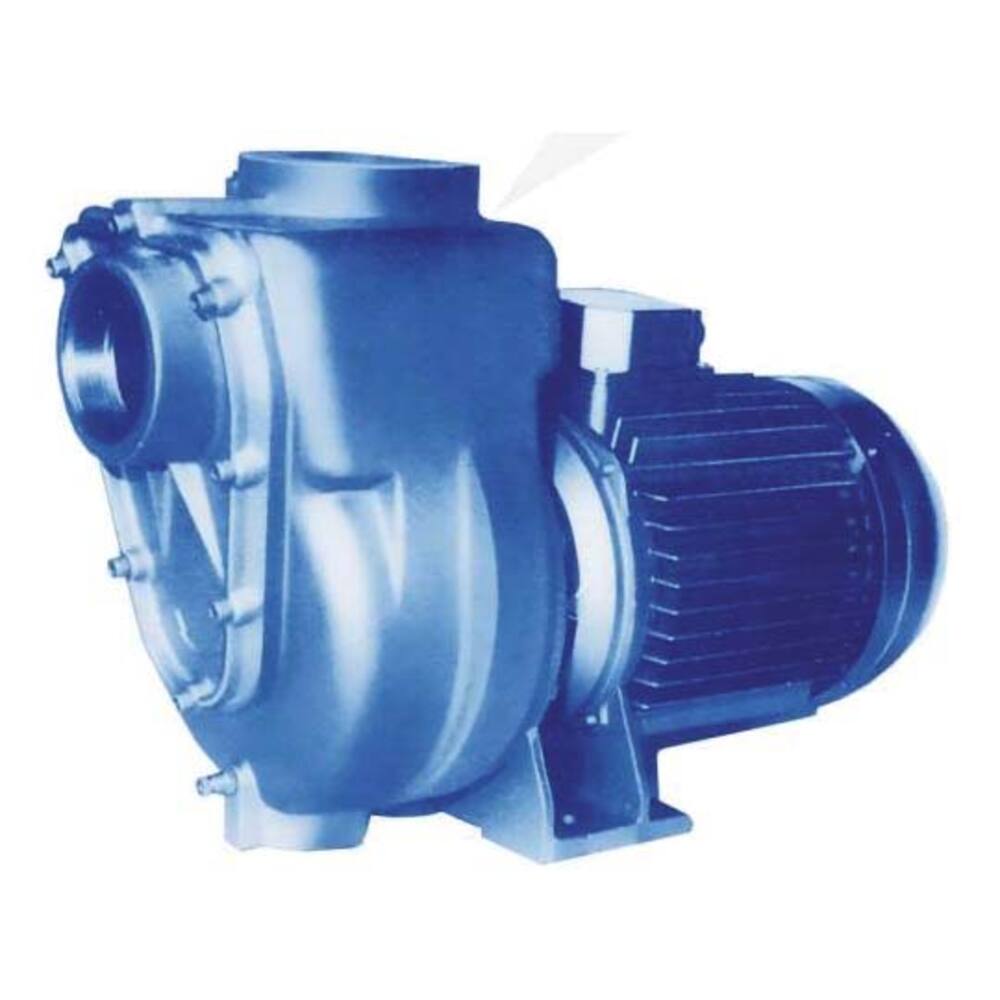

Alpha Pompe Pump 03RAC-T 5.5 HP 400V
Designed for commercial shipping, large pleasure craft, and coastal shipping, these pumps excel in deck wash and bilge applications. They are also suitable for sprinkling, irrigation, dewatering, and industrial cooling medium pumping.
- Type: 03RAC-T
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 14 m head: 42,000 l/h
- 15 m head: 40,800 l/h
- 20 m head: 35,400 l/h
- 25 m head: 30,000 l/h
- 30 m head: 20,400 l/h
- Dimensions (LxWxH): 585 x 270 x 385 mm
- Weight: 80 kg
- Amperage: 5.2 A
- Shaft power: 4.0 kW, 5.5 hp, 2800 rpm
- Product code: 92.12.805
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 6 mm
- Max discharge head: 35.0 m
- Voltage: 400/690 V
- Current: AC, Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 42,000 l/h
- Capacity at 5 m: 42,000 l/h
-
