The Alpha Pompe Pump 08RA-T 25 HP 400V is built for commercial shipping, large pleasure crafts, and coastal shipping, efficiently handling deck wash and bilge tasks as well as irrigation, sprinkling, dewatering, and industrial cooling. It is a self-priming centrifugal pump with an open impeller, cast iron construction, and stainless steel shaft, suitable for contaminated and sea water up to 90°C. It operates at 400 volts, delivering up to 300,000 liters per hour at 5 meters head with a maximum discharge head of 22 meters, and weighs 490 kg.
- Description
- Ask a Question
-

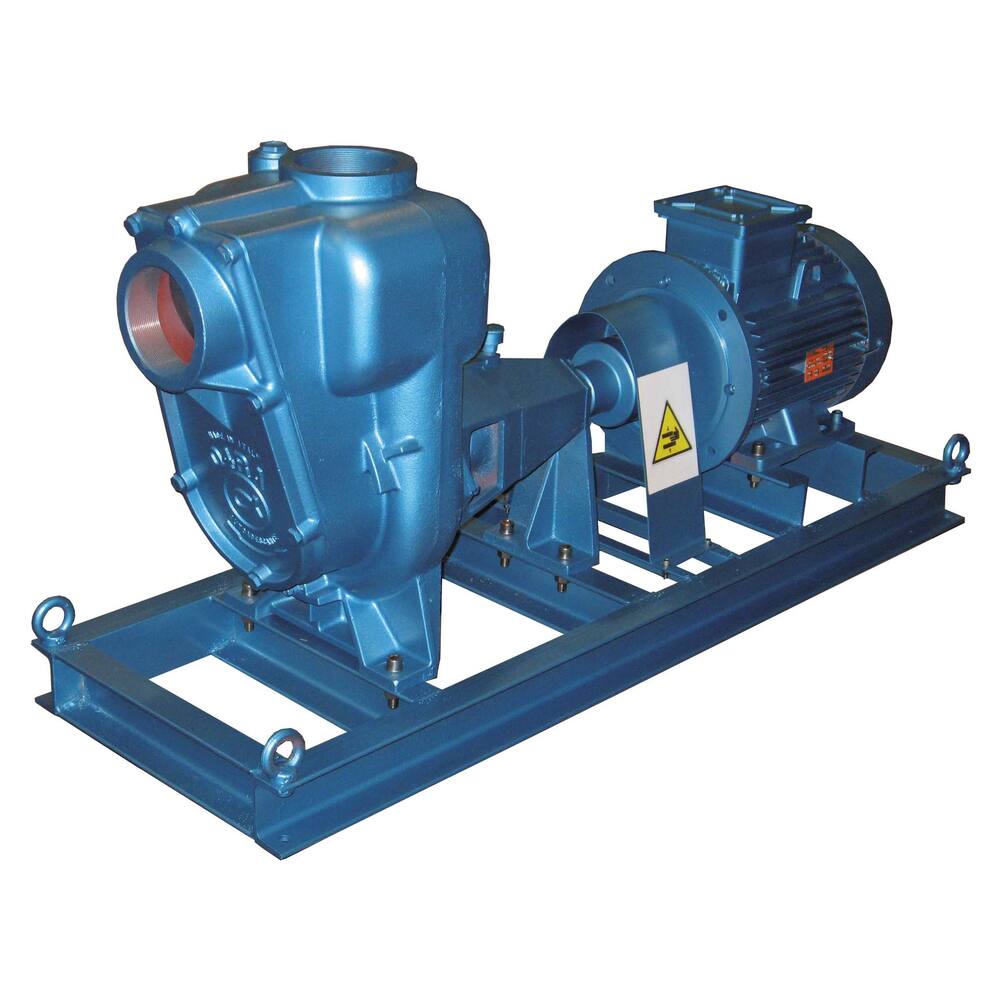

Alpha Pompe Pump 08RA-T 25 HP 400V
Built for commercial shipping, large pleasure crafts, and coastal shipping, this pump efficiently handles deck wash and bilge tasks. It is also suitable for irrigation, sprinkling, dewatering, and as an industrial cooling medium pump.
- Type: 08RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 m head: 222,000 litres/hour
- 15 m head: 144,000 litres/hour
- 20 m head: 55,000 litres/hour
- Connections: 8" flange
- Dimensions (LxWxH): 1500 x 680 x 1070 mm (dimensions on frame)
- Weight: 490 kg
- Amperage: 21.3 A
- Shaft power: 18.5 kW, 25.0 hp, 1500 rpm
- Product code: 92.11.290
- Suction head: 7.0 m
- Pipe diameter pressure: 8"
- Pipe diameter suction: 8"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 33 mm
- Maximum discharge head: 22.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 300,000 L/hour
- Capacity at 5 meters head: 300,000 L/hour
-
