ID
1316714
$ 24,632.28
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 06RA-T 15 HP 400V is engineered for deck wash and bilge duties on commercial vessels, large pleasure crafts, and coastal shipping, also suitable for sprinkling, irrigation, dewatering, and industrial cooling. This self-priming centrifugal pump has an open impeller, cast iron parts, and a stainless steel shaft, handling contaminated and sea water up to 90°C. It operates at 400 volts with a maximum flow of 192,000 liters per hour at 5 meters head and a maximum discharge head of 22 meters, weighing 410 kg.
- Description
- Ask a Question
-

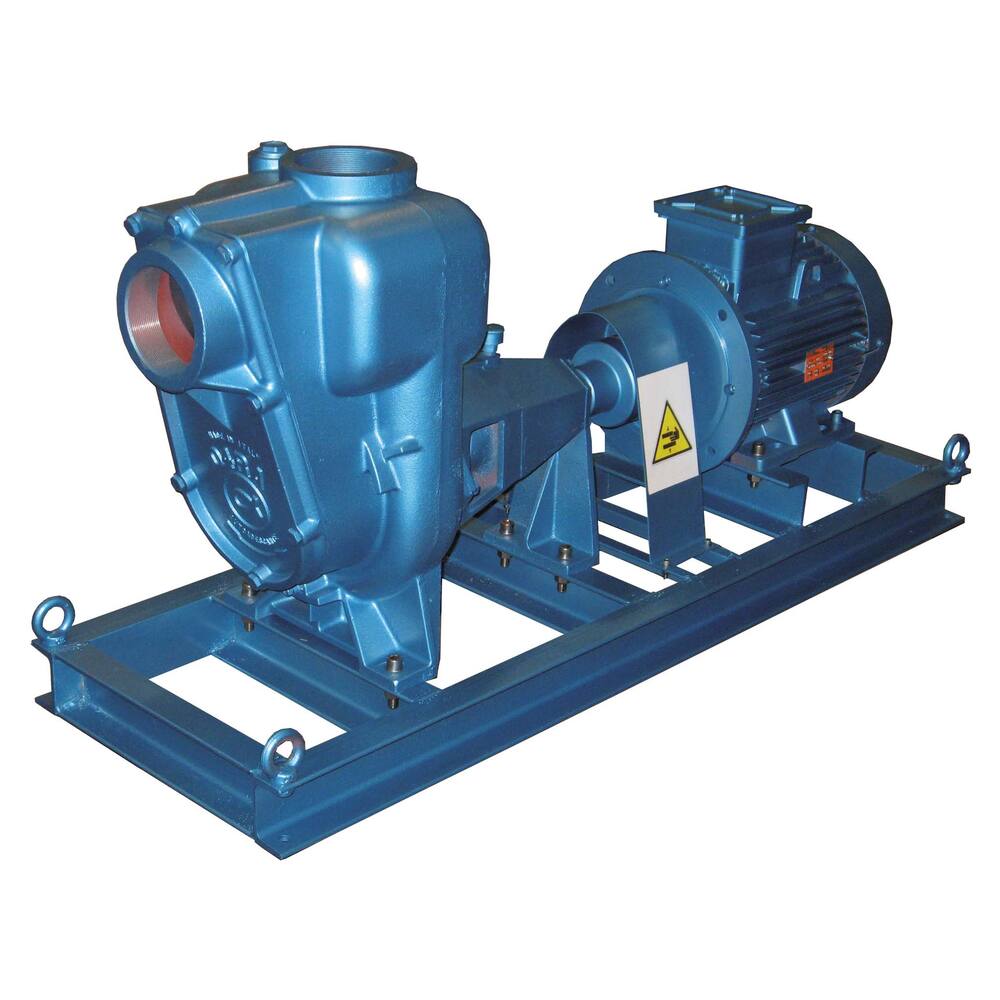

Alpha Pompe Pump 06RA-T 15 HP 400V
Engineered for deck wash and bilge duties on commercial vessels, large pleasure crafts, and coastal shipping, this pump also performs well in sprinkling, irrigation, dewatering, and as an industrial cooling medium pump.
- Type: 06RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 5 m head: 192,000 litres/hour
- 10 m head: 162,000 litres/hour
- 15 m head: 120,000 litres/hour
- 20 m head: 60,000 litres/hour
- Connections: 6" internal thread
- Dimensions (LxWxH): 1500 x 680 x 1070 mm (dimensions on frame)
- Weight: 410 kg
- Amperage: 13.2 A
- Shaft power: 11.0 kW, 15.0 hp, 1500 rpm
- Product code: 92.11.280
- Suction head: 7.0 m
- Pipe diameter pressure: 6"
- Pipe diameter suction: 6"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 25 mm
- Maximum discharge head: 22.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 192,000 L/hour
- Capacity at 5 meters head: 192,000 L/hour
-
