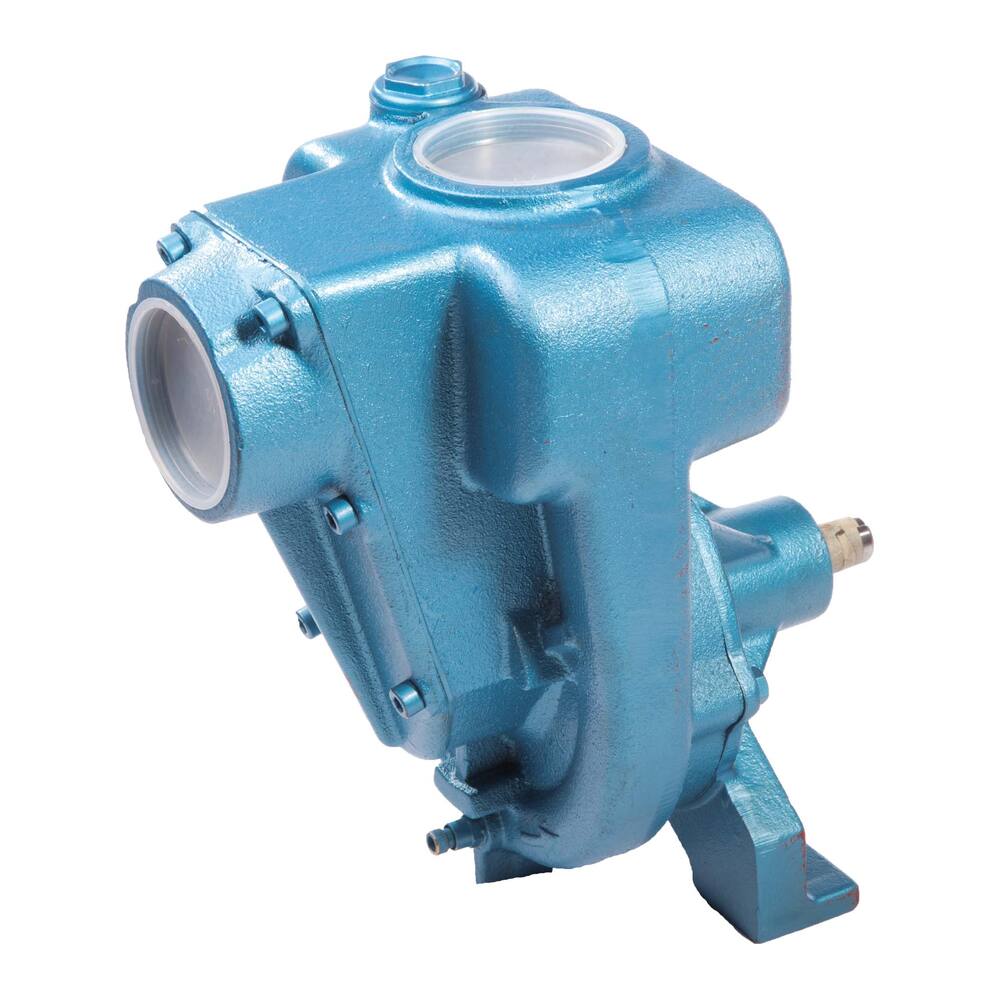

The Alpha Pompe 01RA-1 is a compact, blue, right-hand rotation self-priming centrifugal pump designed for shipping uses such as bilge and deck washing, as well as sprinkling, dewatering, and industrial or agricultural tasks. It has an open cast iron impeller and housing, a ceramic on carbon mechanical seal, and a stainless steel shaft. This pump handles contaminated water and similar liquids up to 90°C, with a maximum flow of 1,500 litres per hour at 9 meters head. It features 1-inch internal thread connections, weighs 8 kg, and runs at speeds from 2800 to 5700 rpm, though it is not self-priming below 3000 rpm.
- Description
- Ask a Question
-
Alpha Pompe 01RA-1 - Right-Hand Rotation Pump
This pump is applied in shipping for bilge and deck washing, and also for sprinkling, dewatering, industrial, construction, and agricultural purposes.
- Type: 01RA
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: contaminated water, sea water, gas oil, etc. (max temp 90°C)
- Performance:
- 9 metres head: 1,500 litres per hour
- Connections: 1" internal thread
- Dimensions (lxwxh): 197 x 160 x 213 mm
- Weight: 8.0 kg
- Shaft diameter: 20 mm
- Shaft power: 0.25 kW, 0.33 hp at 2800 rpm
- Speed range: 2800 through 5700 rpm (NOT self-priming below 3000 rpm)
- Product code: 95.35.010
- Suction head: 7.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Model: Clockwise
- Pump type: Dry set-up pump: self-priming
- Medium: Water
- Particle size: 8 mm
- Discharge head Max.: 9.5 m
- Free flow (L/Hour): 4,800
- Capacity at 5 meter (L/hour): 3,500
-
