ID
1316727
$ 3,662.32
1-2 weeks delivery time
-
+
The Alpha Pompe Pump F03RAG-T is a 7.5 HP self-priming centrifugal pump designed for dirty water with solids and higher viscosity, featuring a powerful 400V short circuit motor. It has a cast iron impeller and housing with a stainless steel shaft, handling particles up to 19 mm and delivering up to 66,000 liters per hour at 15 meters head, with a maximum discharge head of 25 meters.
- Description
- Ask a Question
-

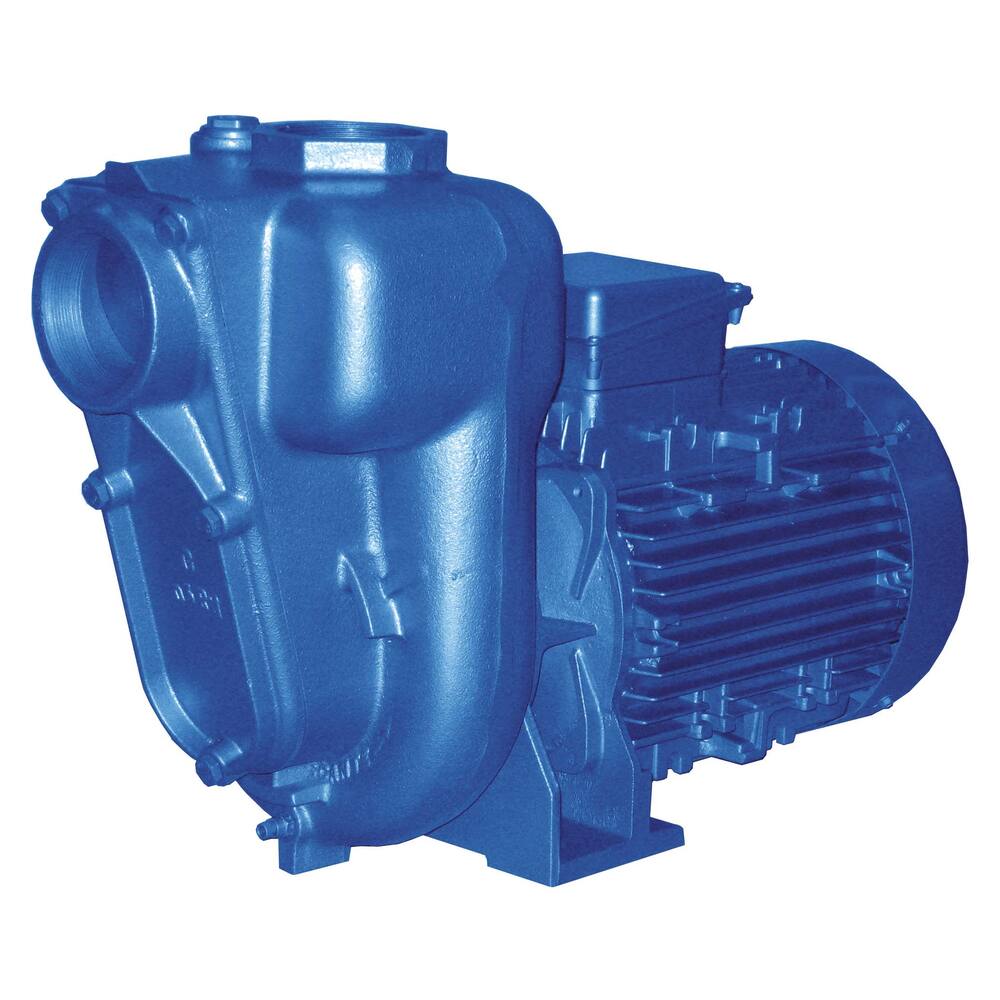

Alpha Pompe Pump F03RAG-T 7.5 HP Dirty Water 400V
This pump is specifically designed to handle dirty water containing solids, liquids with higher viscosity, or heavier liquids due to its extra powerful motor. It is ideal for pumping out dirty water tanks and faeces without coarse or hard components.
- Type: F 03RAG-T
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor with 400 volt
- Fuse: inbuilt thermal safeguard only with the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: water with many solids, higher viscosity or higher specific gravity
- Performance:
- 15 metres head: 66,000 litres per hour
- 20 metres head: 45,000 litres per hour
- Connections: 3" internal thread
- Dimensions (L×W×H): approx. 651 x 274 x 435 mm
- Weight: approx. 75 kg
- Amperage: 7.6 A
- Shaft power: 5.5 kW, 7.5 hp, 2800 rpm
- Product code: 92.92.050
- Suction head: 7.0 m
- Pipe diameter pressure and suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water including water with coarse components
- Maximum particle size: 19 mm
- Max discharge head: 25.0 m
- Voltage: 400/690 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: Not included
- Free flow rate: 66,000 L/hour
- Capacity at 5 meter head: 66,000 L/hour
-
