ID
1316730
$ 663.35
1-2 weeks delivery time
-
+
The Alpha Pompe 02RA-2" is a versatile blue self-priming centrifugal pump with right-hand rotation, suitable for shipping applications like bilge and deck washing, sprinkling, dewatering, and various industrial, construction, and agricultural uses. It features an open cast iron impeller and housing, a ceramic on carbon mechanical seal, and a stainless steel shaft. The pump handles contaminated water and similar liquids up to 90°C, with a maximum flow of 25,500 litres per hour free flow and 22,500 litres per hour at 10 meters head. It has 2-inch internal thread connections, weighs 17 kg, and runs at speeds from 2800 to 3600 rpm.
- Description
- Ask a Question
-

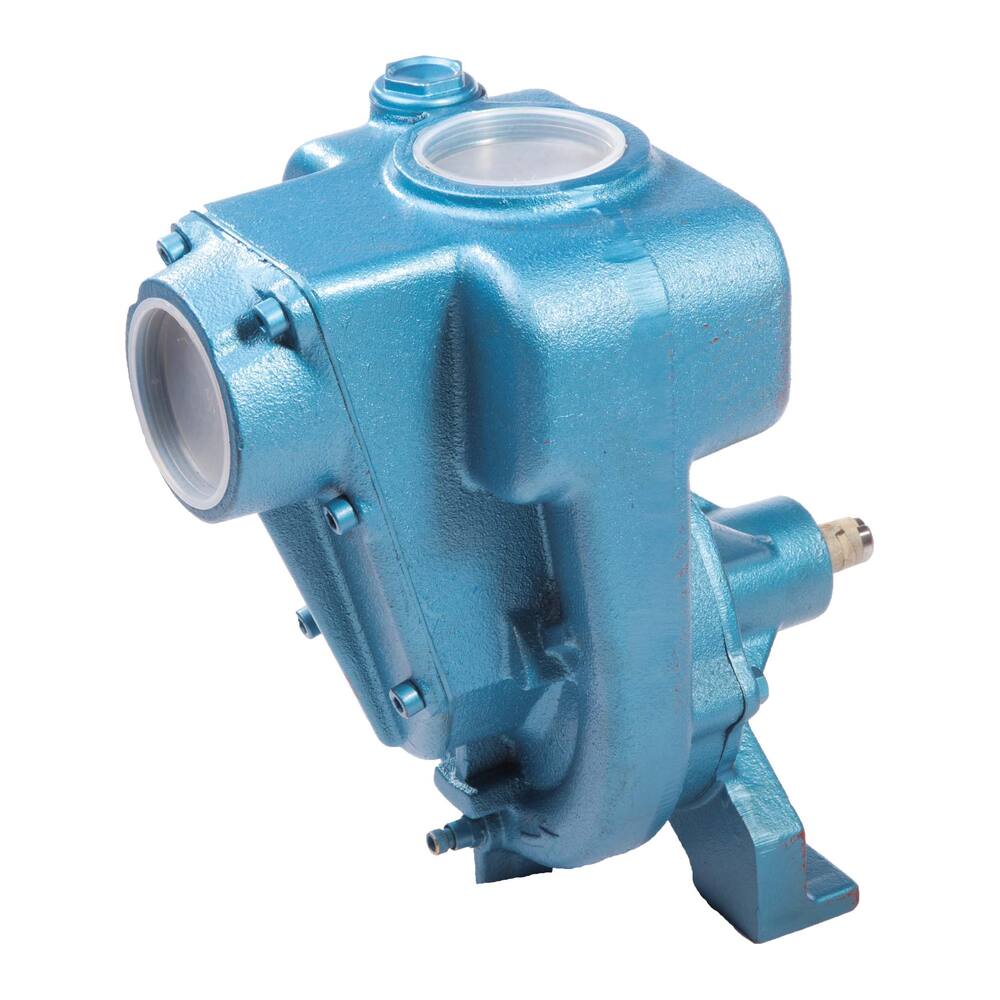

Alpha Pompe 02RA-2" Right-Hand Rotation Pump
This pump is designed for versatile use in shipping applications such as bilge and deck washing, as well as for sprinkling, dewatering, and various industrial, construction, and agricultural tasks.
- Type: 02RA
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Suitable liquids: contaminated water, sea water, gas oil, etc., max temperature 90°C
- Performance:
- 10 metres head: 22,500 litres per hour
- 15 metres head: 13,500 litres per hour
- Free flow: 25,500 L/hour
- Capacity at 5 metres: 25,000 L/hour
- Discharge head max: 17.0 m
- Connections: 2" internal thread
- Dimensions (L×W×H): 294 × 193 × 321 mm
- Weight: 17.0 kg
- Shaft diameter: 20 mm
- Shaft power: 1.5 kW (2.0 hp) at 2800 rpm
- Speed range: 2800 to 3600 rpm
- Product code: 95.35.020
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 14 mm
-
