The Alpha Pompe 01.1/2RA-1.1/2 is a blue, right-hand rotation self-priming centrifugal pump widely used in shipping for bilge and deck washing, as well as sprinkling, dewatering, and various industrial and agricultural applications. It has an open cast iron impeller and housing, a ceramic on carbon mechanical seal, and a stainless steel shaft. It can handle contaminated water and similar liquids up to 90°C, delivering flows of 16,000 litres per hour at 10 meters head and 10,000 litres per hour at 15 meters head. The pump has 1.5-inch internal thread connections, weighs 14.5 kg, and operates at speeds between 2800 and 4000 rpm.
- Description
- Ask a Question
-

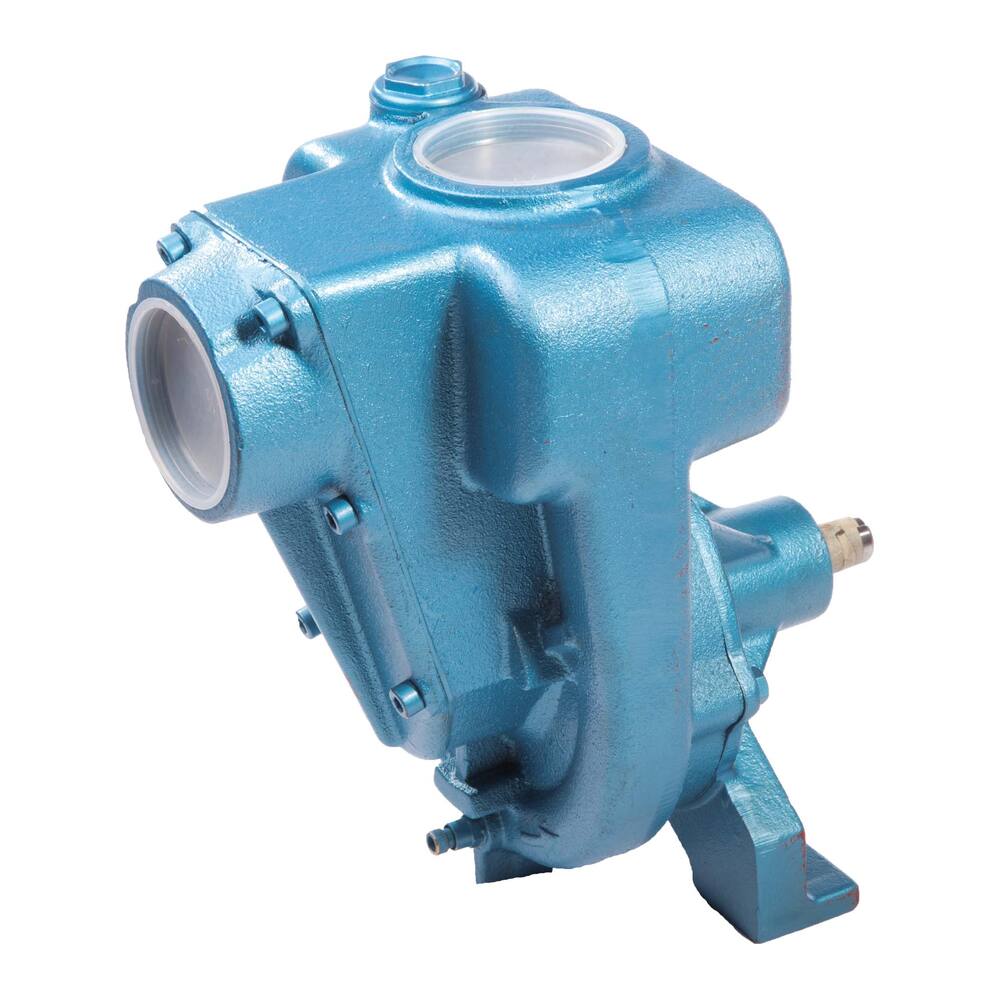

Alpha Pompe 01.1/2RA-1.1/2 - Right-Hand Rotation Pump
This pump is commonly used in shipping as a bilge and deck wash pump and serves well for sprinkling, dewatering, industrial, construction, and agricultural tasks.
- Type: 01½RA
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: contaminated water, sea water, gas oil, etc. (max temp 90°C)
- Performance:
- 10 metres head: 16,000 litres per hour
- 15 metres head: 10,000 litres per hour
- Connections: 1.1/2" internal thread
- Dimensions (lxwxh): 265 x 190 x 288 mm
- Weight: 14.5 kg
- Shaft diameter: 20 mm
- Shaft power: 0.75 kW, 1.0 hp at 2800 rpm
- Speed range: 2800 through 4000 rpm
- Product code: 95.35.015
- Suction head: 7.0 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Model: Clockwise
- Pump type: Dry set-up pump: self-priming
- Medium: Water
- Particle size: 9 mm
- Discharge head Max.: 18.0 m
- Free flow (L/Hour): 17,500
- Capacity at 5 meter (L/hour): 17,500
-
