ID
1316726
$ 1,885.76
1-2 weeks delivery time
-
+

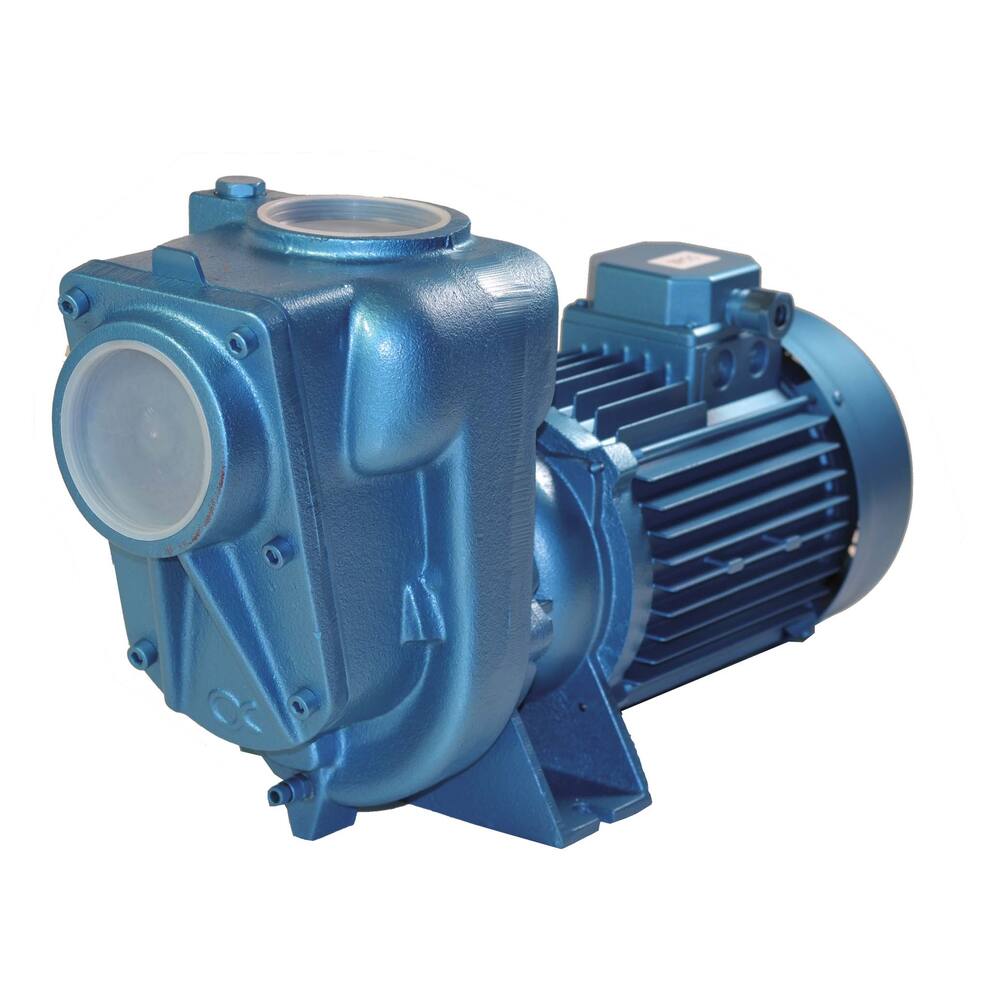

The Alpha Pompe Pump F03RASG-T is a 4 HP dirty water pump running on 400V, built for dirty water with solids and higher viscosity. It features a self-priming centrifugal pump with an open cast iron impeller and housing, stainless steel shaft, and can handle particles up to 20 mm. It provides a free flow rate of 48,000 liters per hour and a maximum discharge head of 19 meters, weighing approximately 32 kg.
- Description
- Ask a Question
-
Alpha Pompe Pump F03RASG-T 4 HP Dirty Water 400V
Featuring an extra powerful motor, this pump is built for dirty water with solids, higher viscosity, or increased specific gravity. Perfect for pumping dirty water tanks and faeces without coarse or hard parts.
- Type: F 03RASG-T
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor with 400 volt
- Fuse: inbuilt thermal safeguard (only with 230 volt motors)
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids: water with many solids, higher viscosity or specific gravity
- Performance at 10 metres head: 36,000 litres per hour
- Performance at 15 metres head: 21,600 litres per hour
- Connections: 3" internal thread
- Dimensions (L×W×H): approx. 480 × 205 × 306 mm
- Weight: approx. 32 kg
- Amperage: 4.0 A
- Shaft power: 3.0 kW, 4 hp, 2800 rpm
- Product code: 92.92.043
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: water, including with coarse components
- Maximum particle size: 20 mm
- Maximum discharge head: 19.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: not included
- Free flow: 48,000 L/hour
- Capacity at 5 meters: 48,000 L/hour
-
