The Alpha Pompe Pump 0RA-A25-T 25 HP 400V is engineered for deck wash and bilge applications in commercial shipping, large pleasure crafts, and coastal shipping, and is effective for sprinkling, irrigation, dewatering, and industrial cooling. It has a 3" connection, a 25 HP motor, and delivers up to 48,000 liters per hour at 56 meters head, with a maximum discharge head of 76.5 meters and particle size capacity of 19 mm.
- Description
- Ask a Question
-

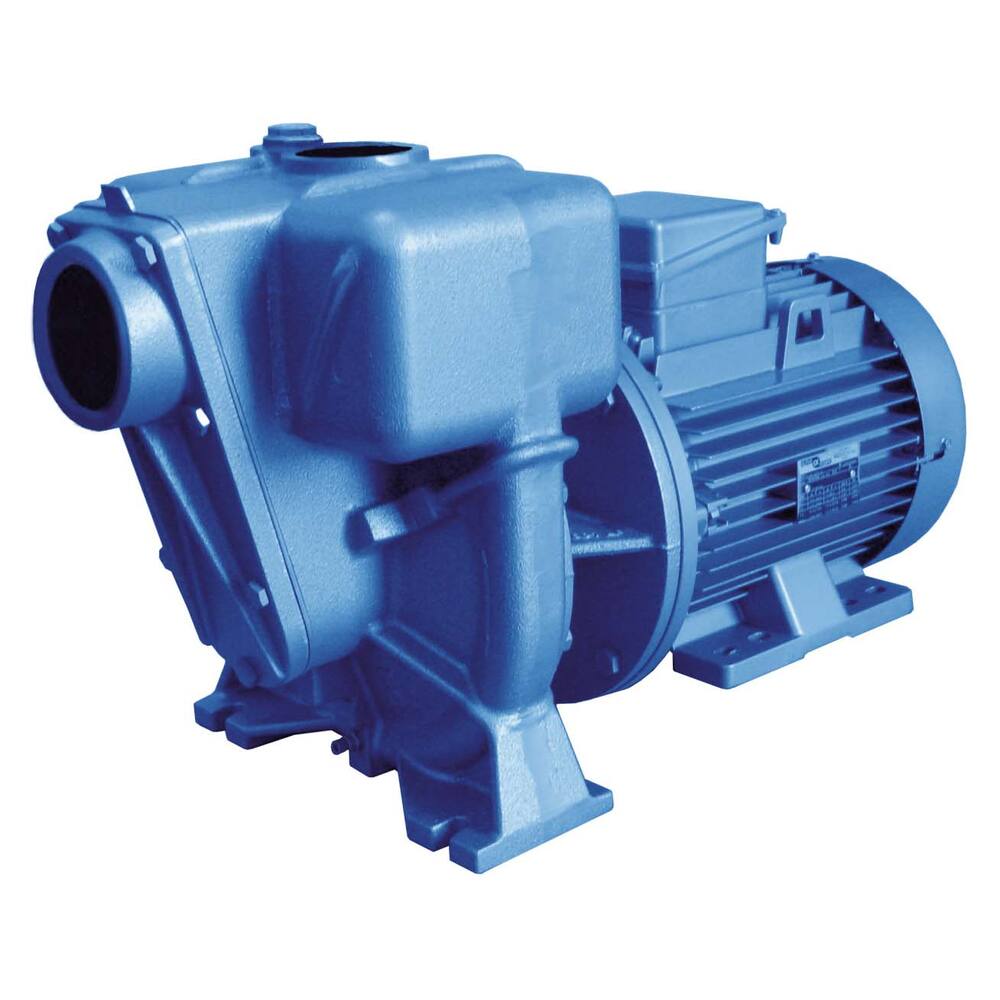

Alpha Pompe Pump 0RA-A25-T 25 HP 400V
Engineered for deck wash and bilge uses in commercial shipping, large pleasure craft, and coastal shipping, this pump is also effective for sprinkling, irrigation, dewatering, and industrial cooling medium applications.
- Type: 0RA-A25-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model with limited self-priming +/- 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (suitable for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance at various heads:
- 56 m head: 48,000 litres/hour
- 60 m head: 43,800 litres/hour
- 65 m head: 36,000 litres/hour
- 70 m head: 24,000 litres/hour
- 75 m head: 9,000 litres/hour
- Connections: 3" internal thread
- Dimensions (L×W×H): 930 × 350 × 421 mm
- Weight: 179 kg
- Amperage: 20.7 A
- Shaft power: 18.5 kW, 25.0 hp, 2800 rpm
- Product code: 92.11.245
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type detail: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 19 mm
- Max discharge head: 76.5 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 48,000 L/hour
- Capacity at 5 m: 48,000 L/hour
-
