ID
1316712
$ 8,538.90
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 04RA-T 20 HP 400V is designed for deck wash and bilge duties on commercial shipping, large pleasure crafts, and coastal vessels, also suitable for sprinkling, irrigation, dewatering, and industrial cooling. It has a 4" connection, a 20 HP motor, and delivers up to 171,000 liters per hour at 12 meters head, with a maximum discharge head of 32 meters and particle size capacity of 39 mm.
- Description
- Ask a Question
-

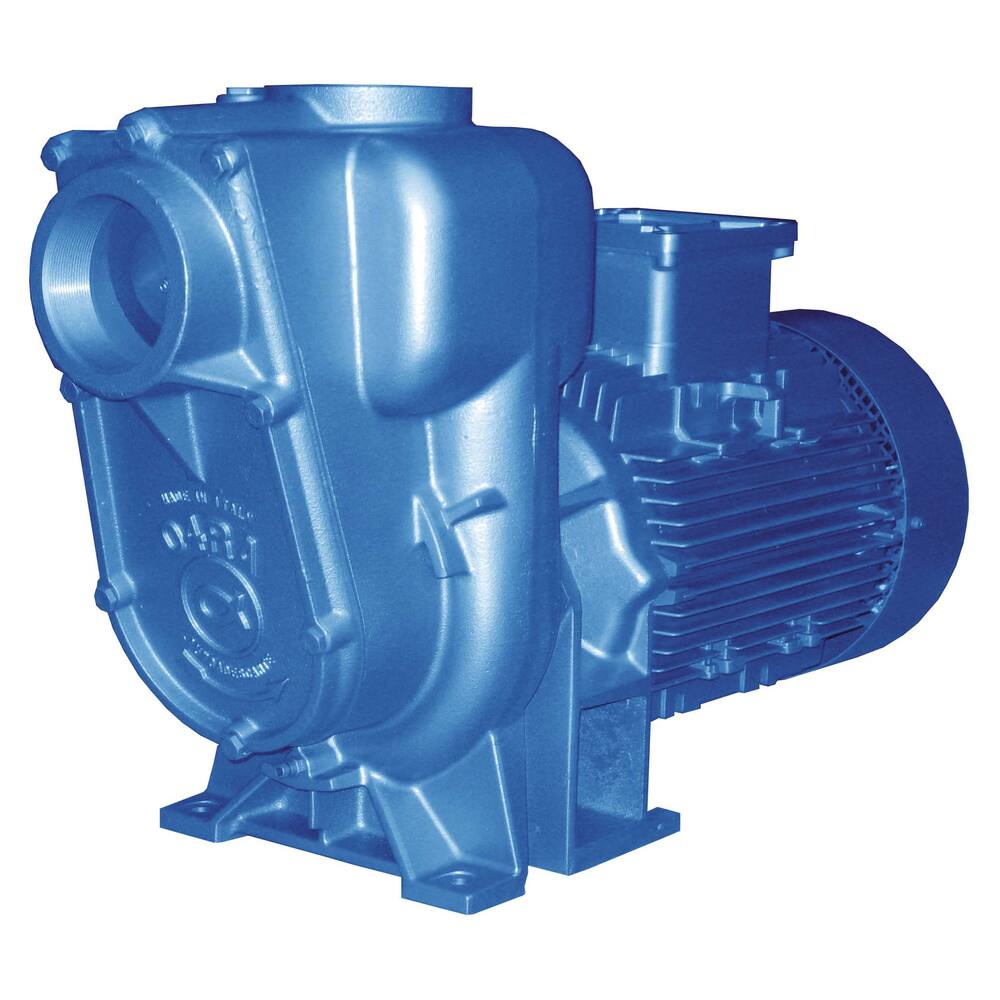

Alpha Pompe Pump 04RA-T 20 HP 400V
Designed for deck wash and bilge duties on commercial shipping, large pleasure craft, and coastal vessels, this pump also suits sprinkling, irrigation, dewatering, and industrial cooling medium roles.
- Type: 04RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 12 metres head: 171,000 litres/hour
- 15 metres head: 165,000 litres/hour
- 20 metres head: 146,000 litres/hour
- 25 metres head: 114,000 litres/hour
- 30 metres head: 60,000 litres/hour
- Connections: 4" internal thread
- Dimensions (LxWxH): 861 x 313 x 558 mm
- Weight: 146 kg
- Amperage: 17.3 A
- Shaft power: 15.0 kW, 20.0 hp, 2800 rpm
- Product code: 92.11.260
- Suction head: 7.0 m
- Pipe diameter pressure: 4"
- Pipe diameter suction: 4"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 39 mm
- Max discharge head: 32.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow capacity: 171,000 L/hour
- Capacity at 5 meters: 171,000 L/hour
-
