ID
1316713
$ 16,225.39
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 04RA-T 20 HP 400V ATEX is designed for deck wash and bilge applications on commercial ships, large pleasure crafts, and coastal vessels, and is also suitable for sprinkling, irrigation, dewatering, and industrial cooling. It is a self-priming centrifugal pump with an open impeller, cast iron construction, and a stainless steel shaft, handling contaminated and sea water up to 90°C. It features an explosion-proof motor with ATEX certification, operates at 400 volts, and delivers a maximum flow of 171,000 liters per hour at 12 meters head, with a maximum discharge head of 32 meters.
- Description
- Ask a Question
-

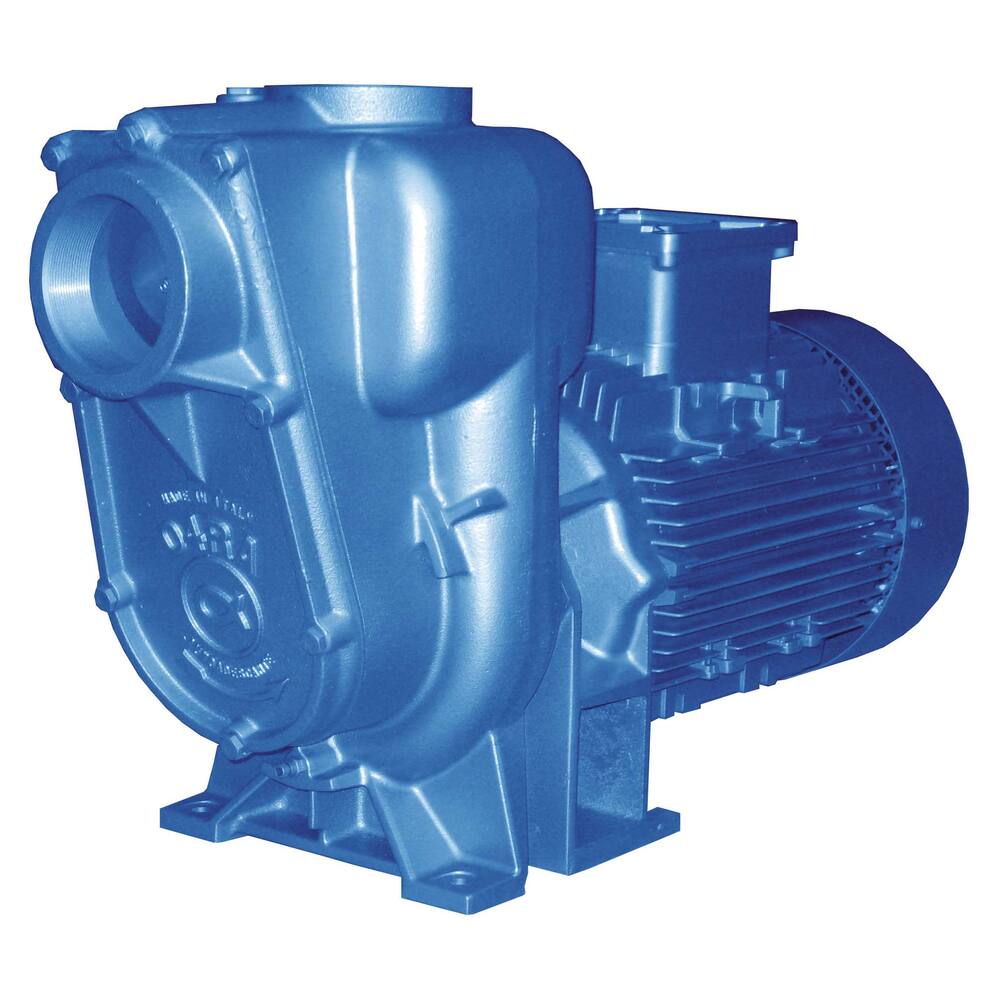

Alpha Pompe Pump 04RA-T 20 HP 400V ATEX
This pump is designed for deck wash and bilge applications on commercial ships, large pleasure crafts, and coastal vessels. It is also suitable for sprinkling, irrigation, dewatering, and industrial cooling medium pumping.
- Type: 04RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 12 m head: 171,000 litres/hour
- 15 m head: 165,000 litres/hour
- 20 m head: 146,000 litres/hour
- 25 m head: 114,000 litres/hour
- 30 m head: 60,000 litres/hour
- Connections: 4" internal thread
- Dimensions (LxWxH): 861 x 313 x 558 mm
- Weight: 146 kg
- Amperage: 17.3 A
- Shaft power: 15.0 kW, 20.0 hp, 2800 rpm
- ATEX certification: II 2 G EEx d IIHB T5, T4, T3, suitable for cargo residues like petrol, explosion proof motor, mechanical seal with Viton
- Product code: 92.11.261
- Suction head: 7.0 m
- Pipe diameter pressure: 4"
- Pipe diameter suction: 4"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 39 mm
- Maximum discharge head: 32.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 171,000 L/hour
- Capacity at 5 meters head: 171,000 L/hour
-
