ID
1316711
$ 14,002.24
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 04RAG-T 15 HP 400V ATEX is an explosion-proof self-priming centrifugal pump for deck wash and bilge use on commercial and pleasure vessels. It excels in sprinkling, irrigation, dewatering, and industrial cooling applications, featuring a 4" connection, a 15 HP motor, ATEX certification, and delivers up to 150,000 liters per hour at 12 meters head with IP68 protection.
- Description
- Ask a Question
-

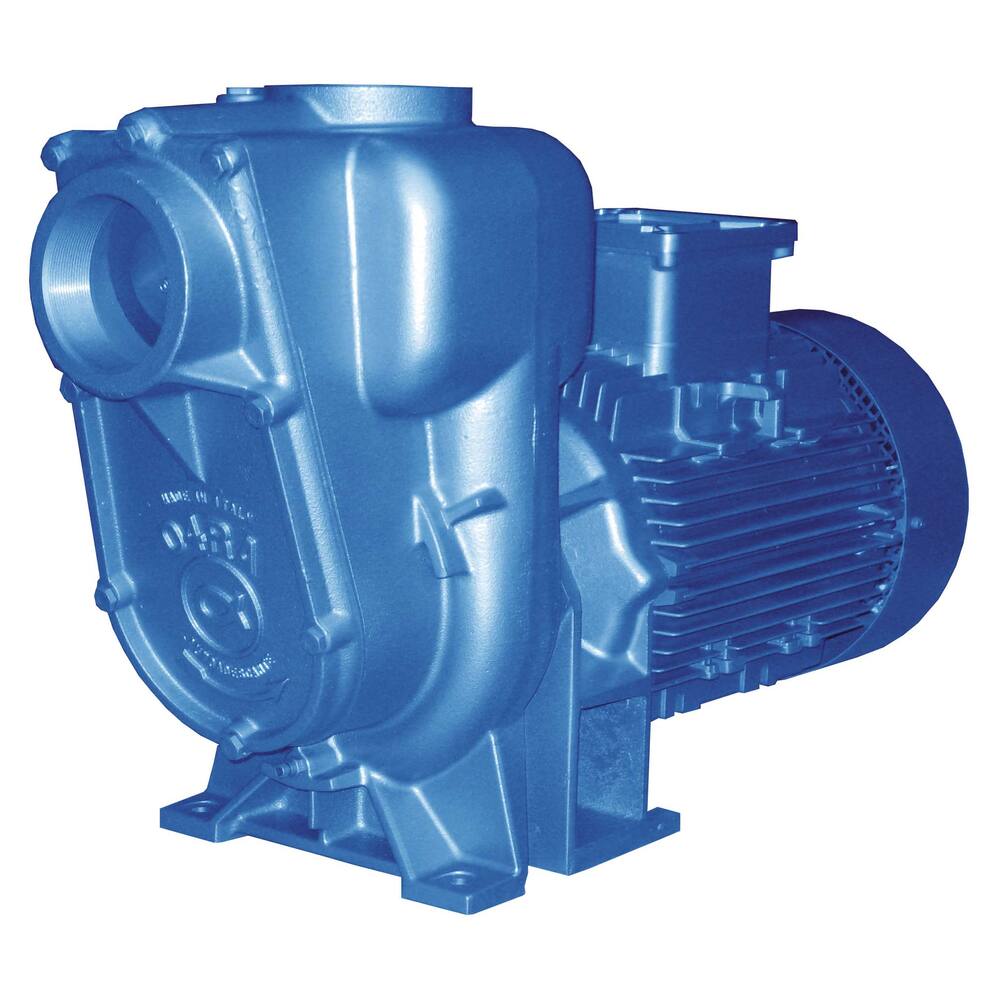

Alpha Pompe Pump 04RAG-T 15 HP 400V ATEX
Engineered for deck wash and bilge use on commercial and pleasure vessels, this pump also excels in sprinkling, irrigation, dewatering, and industrial cooling applications. It is specially certified for explosive atmospheres with enhanced safety features.
- Type: 04RAG-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 12 metres head: 150,000 litres/hour
- 15 metres head: 144,000 litres/hour
- 20 metres head: 135,000 litres/hour
- 25 metres head: 109,000 litres/hour
- 30 metres head: 54,000 litres/hour
- Connections: 4" internal thread
- Dimensions (LxWxH): 861 x 313 x 558 mm
- Weight: 145 kg
- Amperage: 13.0 A
- Shaft power: 11.0 kW, 15.0 hp, 2800 rpm
- ATEX Certification: II 2 G EEx d IIHB T5, T4, T3
- Special features: Explosion-proof and compression-resistant motor, mechanical seal with Viton for handling cargo residues like petrol
- Product code: 92.11.251
- Suction head: 7.0 m
- Pipe diameter pressure: 4"
- Pipe diameter suction: 4"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 34 mm
- Max discharge head: 32.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: Yes
- Free flow capacity: 150,000 L/hour
- Capacity at 5 meters: 150,000 L/hour
-
