ID
1316707
$ 7,696.26
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 0RA-A15-T 15 HP 400V is built for deck wash and bilge use in commercial shipping, large pleasure crafts, and coastal shipping, also suitable for sprinkling, irrigation, dewatering, and industrial cooling. It has a 3" connection, a 15 HP motor, and handles particle sizes up to 12 mm, with a maximum discharge head of 61.5 meters and a flow rate of 58,200 liters per hour at 40 meters head.
- Description
- Ask a Question
-

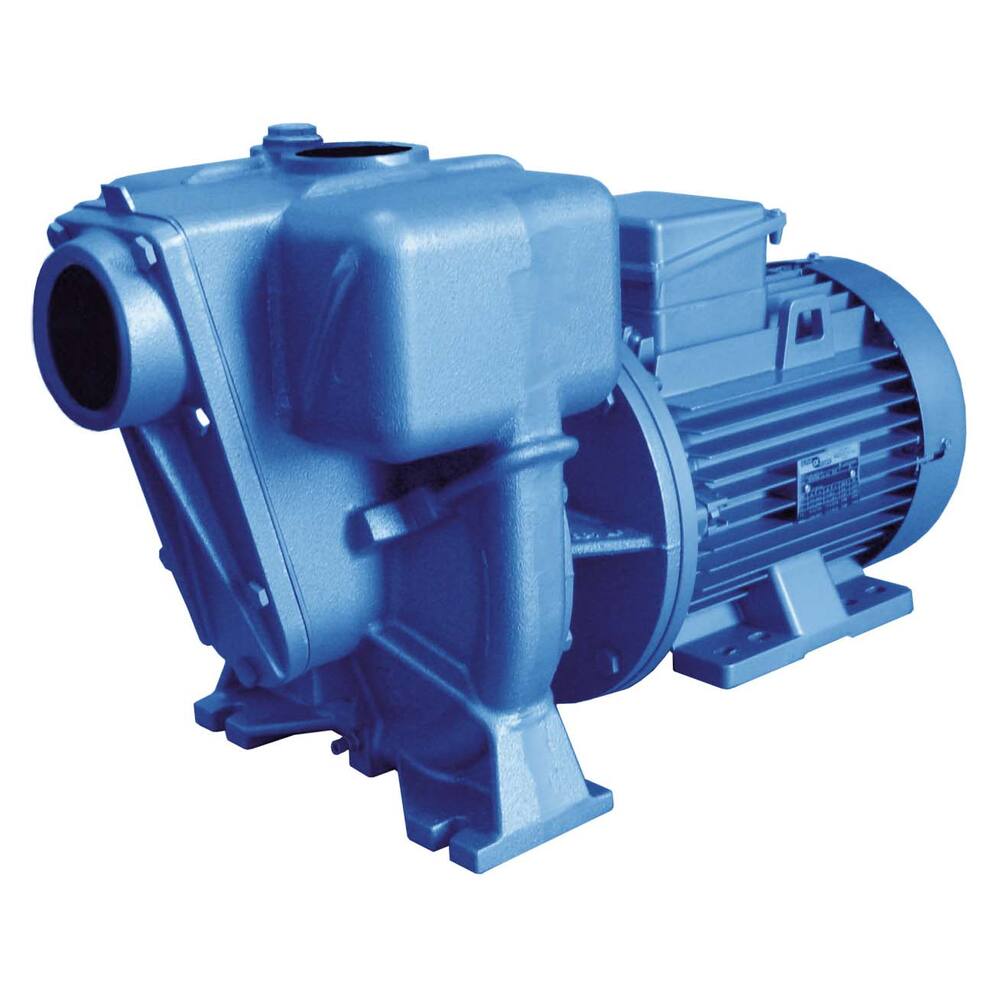

Alpha Pompe Pump 0RA-A15-T 15 HP 400V
Designed for deck wash and bilge applications in commercial shipping, large pleasure craft, and coastal shipping, this pump is also suitable for sprinkling, irrigation, dewatering, and industrial cooling medium uses.
- Type: 0RA-A15-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model with limited self-priming +/- 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (suitable for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance at various heads:
- 40 m head: 58,200 litres/hour
- 45 m head: 49,500 litres/hour
- 50 m head: 43,500 litres/hour
- 55 m head: 22,500 litres/hour
- 60 m head: 6,000 litres/hour
- Connections: 3" internal thread
- Dimensions (L×W×H): 840 × 350 × 421 mm
- Weight: 145 kg
- Amperage: 13.3 A
- Shaft power: 11.0 kW, 15.0 hp, 2800 rpm
- Product code: 92.11.237
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type detail: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 12 mm
- Max discharge head: 61.5 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 58,200 L/hour
- Capacity at 5 m: 58,200 L/hour
-
