The Alpha Pompe Pump 0RA-A20-T 20 HP 400V is ideal for deck wash and bilge operations on commercial vessels, large pleasure crafts, and coastal shipping, also supporting sprinkling, irrigation, dewatering, and industrial cooling. It features a 3" connection, a 20 HP motor, and delivers up to 51,000 liters per hour at 50 meters head, with a maximum discharge head of 71.5 meters and particle size capacity of 15 mm.
- Description
- Ask a Question
-

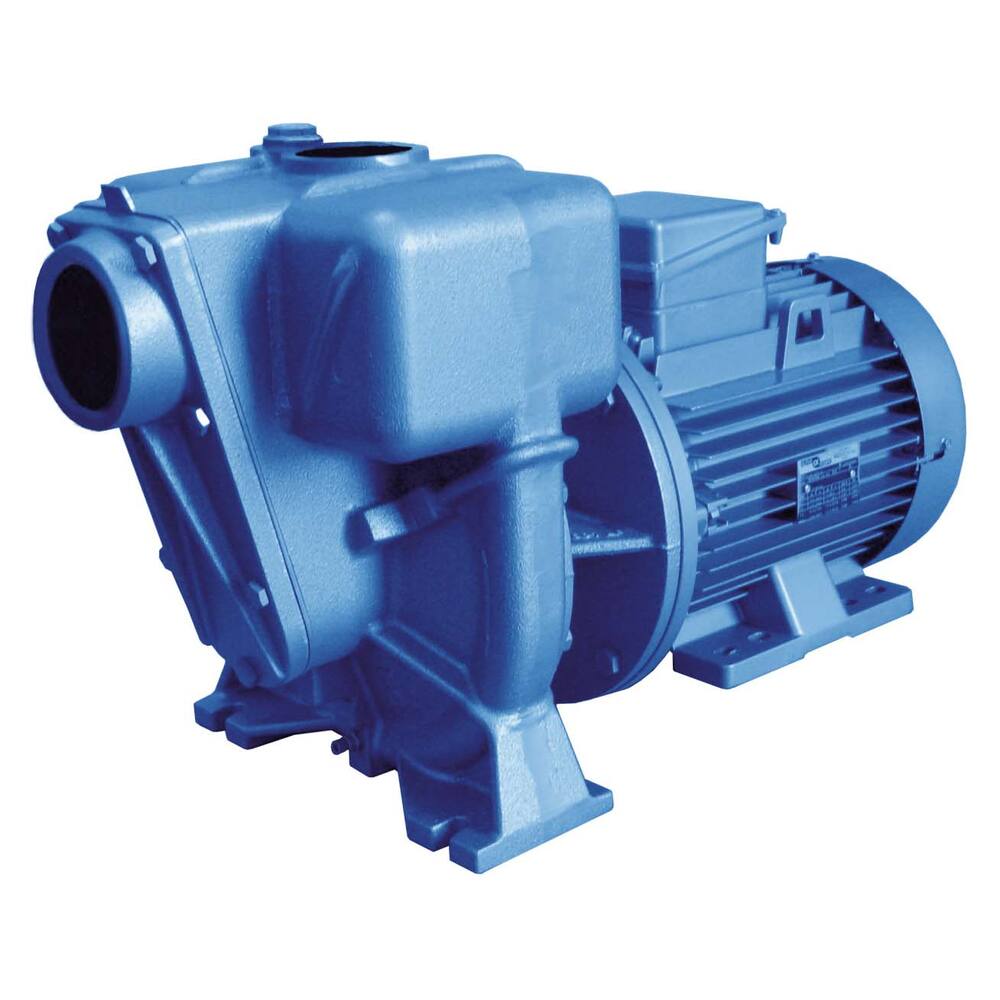

Alpha Pompe Pump 0RA-A20-T 20 HP 400V
This pump is ideal for deck wash and bilge operations in commercial shipping, large pleasure craft, and coastal shipping. It is also functional for sprinkling, irrigation, dewatering, and as a cooling medium pump in industry.
- Type: 0RA-A20-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model with limited self-priming +/- 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (suitable for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance at various heads:
- 50 m head: 51,000 litres/hour
- 55 m head: 45,600 litres/hour
- 60 m head: 36,000 litres/hour
- 65 m head: 25,500 litres/hour
- 70 m head: 6,000 litres/hour
- Connections: 3" internal thread
- Dimensions (L×W×H): 840 × 350 × 421 mm
- Weight: 155 kg
- Amperage: 18.5 A
- Shaft power: 15.0 kW, 20.0 hp, 2800 rpm
- Product code: 92.11.241
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type detail: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 15 mm
- Max discharge head: 71.5 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 51,000 L/hour
- Capacity at 5 m: 51,000 L/hour
-
