ID
1316710
$ 7,769.60
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 04RAG-T 15 HP 400V is designed for deck wash and bilge operations on commercial vessels, large pleasure crafts, and coastal shipping, also suitable for sprinkling, irrigation, dewatering, and industrial cooling. It features a 4" connection, a 15 HP motor, and delivers up to 150,000 liters per hour at 12 meters head, with a maximum discharge head of 32 meters and particle size capacity of 34 mm.
- Description
- Ask a Question
-

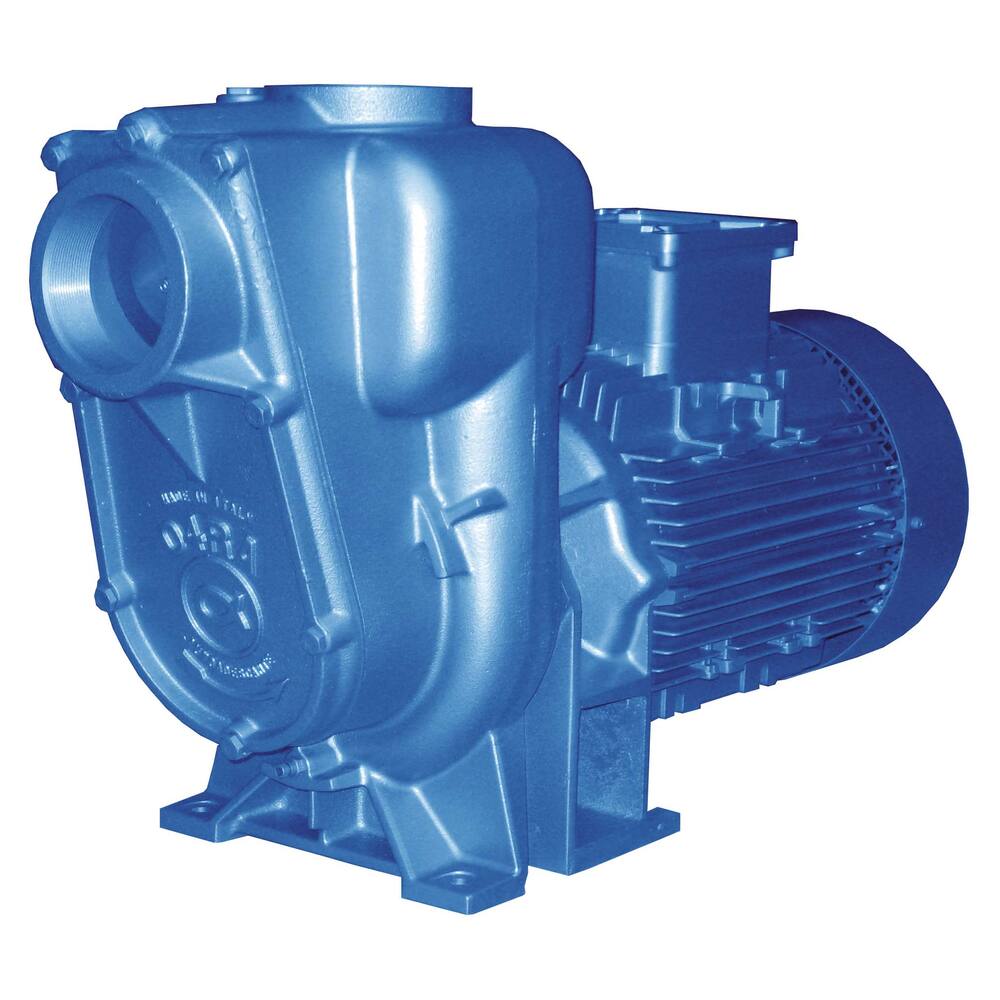

Alpha Pompe Pump 04RAG-T 15 HP 400V
This pump is designed for deck wash and bilge operations on commercial vessels, large pleasure crafts, and coastal shipping. It is also suitable for sprinkling, irrigation, dewatering tasks, and can function as an industrial cooling medium pump.
- Type: 04RAG-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 12 metres head: 150,000 litres/hour
- 15 metres head: 144,000 litres/hour
- 20 metres head: 135,000 litres/hour
- 25 metres head: 109,000 litres/hour
- 30 metres head: 54,000 litres/hour
- Connections: 4" internal thread
- Dimensions (LxWxH): 861 x 313 x 558 mm
- Weight: 145 kg
- Amperage: 13.0 A
- Shaft power: 11.0 kW, 15.0 hp, 2800 rpm
- Product code: 92.11.250
- Suction head: 7.0 m
- Pipe diameter pressure: 4"
- Pipe diameter suction: 4"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 34 mm
- Max discharge head: 32.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow capacity: 150,000 L/hour
- Capacity at 5 meters: 150,000 L/hour
-
