ID
1316706
$ 5,432.37
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 03RAY-T 12.5 HP 400V is a self-priming centrifugal pump designed for deck wash and bilge applications on commercial and pleasure vessels, as well as coastal shipping. It supports sprinkling, irrigation, dewatering, and industrial cooling, featuring a 3" connection, a 12.5 HP motor, and a maximum discharge head of 42 meters, delivering up to 75,000 liters per hour with IP68 protection.
- Description
- Ask a Question
-

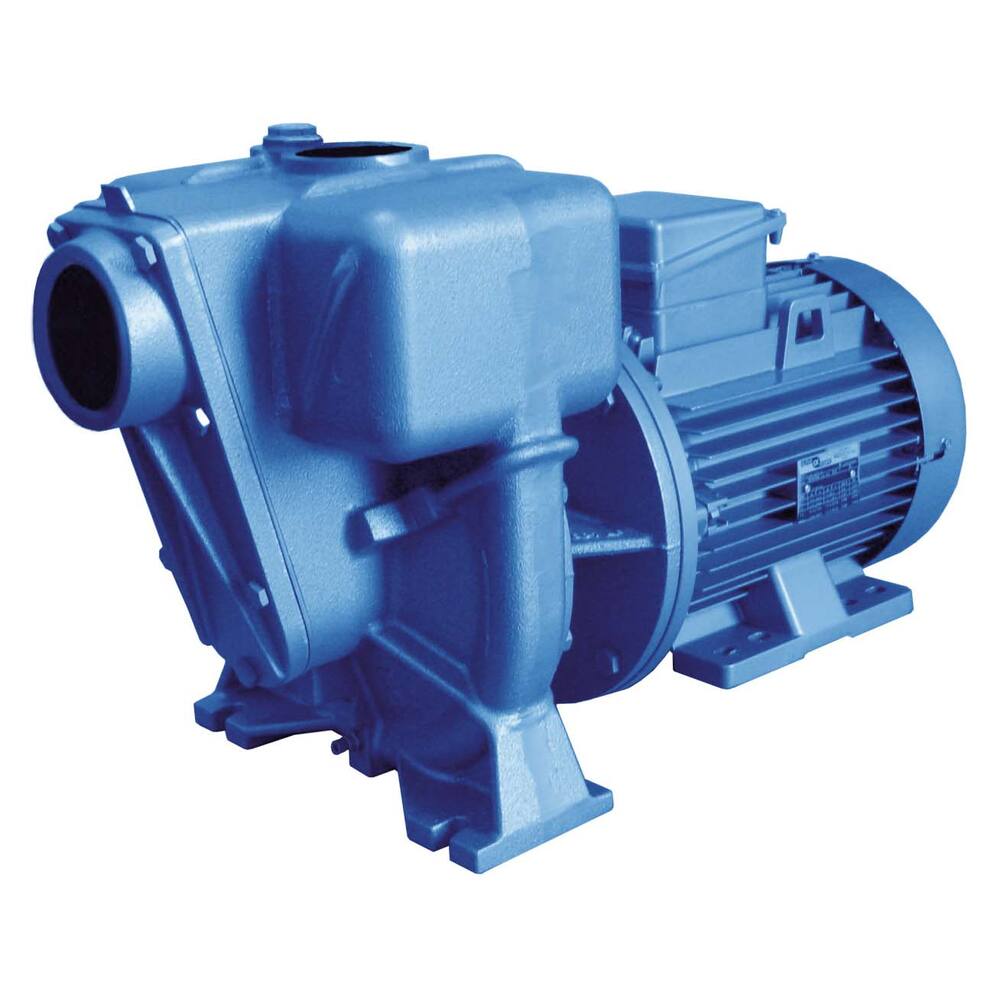

Alpha Pompe Pump 03RAY-T 12.5 HP 400V
Ideal for deck wash and bilge applications on commercial and pleasure vessels as well as coastal shipping, this pump also supports sprinkling, irrigation, dewatering, and industrial cooling needs.
- Type: 03RAY-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 metres head: 75,000 litres per hour
- 15 metres head: 67,500 litres per hour
- 20 metres head: 60,000 litres per hour
- 25 metres head: 51,600 litres per hour
- 30 metres head: 42,000 litres per hour
- 35 metres head: 30,600 litres per hour
- 40 metres head: 12,000 litres per hour
- Connections: 3" internal thread
- Dimensions (L×W×H): 715 × 258 × 384 mm
- Weight: 90 kg
- Amperage: 11.0 A
- Shaft power: 9.5 kW, 12.5 hp, 2800 rpm
- Product code: 92.11.230
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 23 mm
- Discharge head max: 42.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 75,000
- Capacity at 5 meter (L/hour): 75,000
-
