ID
1316705
$ 3,903.55
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 03RAZ-T 7.5 HP 400/690V is a self-priming centrifugal pump for deck wash and bilge needs in commercial shipping, large pleasure crafts, and coastal shipping. It also supports sprinkling, irrigation, dewatering, and industrial cooling medium pumping. This pump has a 3" connection, a 7.5 HP motor, and delivers up to 58,200 liters per hour at 10 meters head with IP68 protection but no ATEX certification.
- Description
- Ask a Question
-

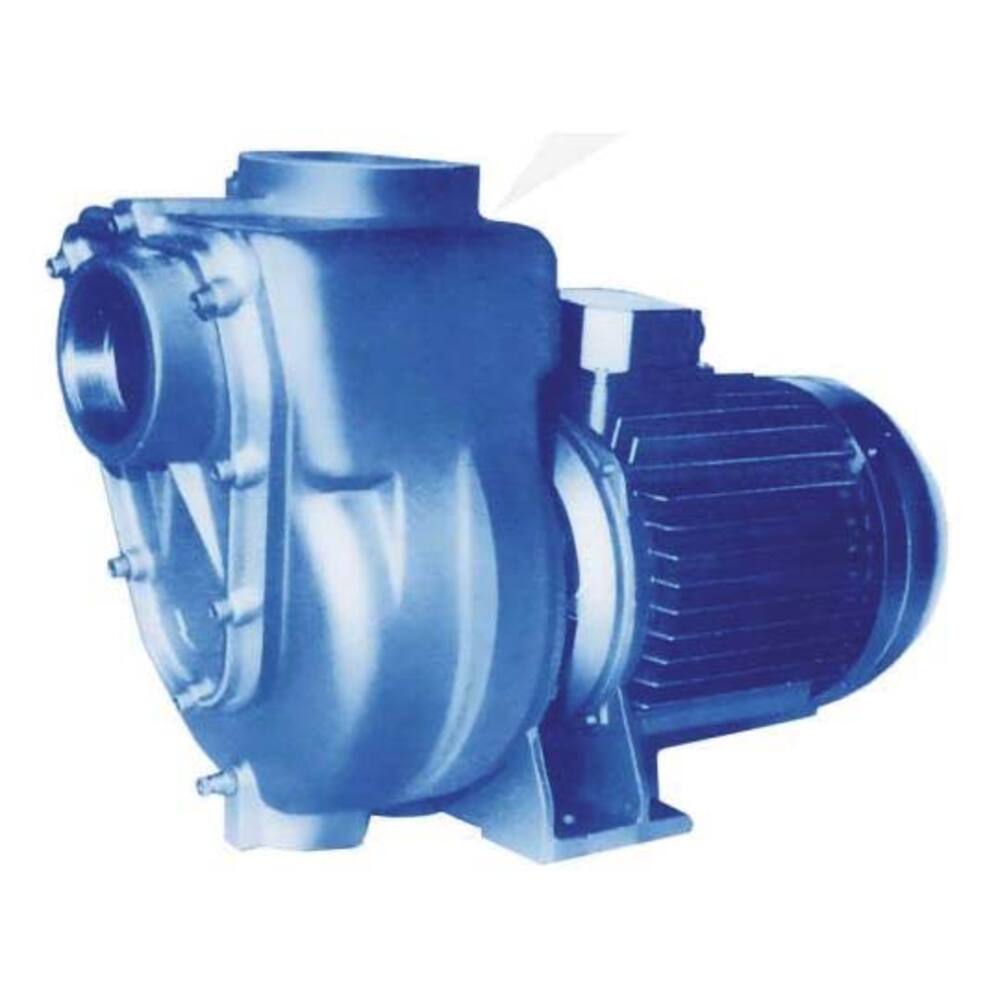

Alpha Pompe Pump 03RAZ-T 7.5 HP 400/690V
This pump serves deck wash and bilge pump needs in commercial shipping, large pleasure craft, and coastal shipping. It is also useful for sprinkling, irrigation, dewatering, and industrial cooling medium pumping.
- Type: 03RAZ-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 10 metres head: 58,200 litres per hour
- 15 metres head: 52,200 litres per hour
- 20 metres head: 46,200 litres per hour
- 25 metres head: 39,000 litres per hour
- 30 metres head: 28,200 litres per hour
- 35 metres head: 21,500 litres per hour
- Connections: 3" internal thread
- Dimensions (L×W×H): 585 × 270 × 385 mm
- Weight: 90 kg
- Amperage: 11.5 A
- Shaft power: 5.5 kW, 7.5 hp, 2800 rpm
- Product code: 92.11.190
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 14 mm
- Discharge head max: 37.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 58,200
- Capacity at 5 meter (L/hour): 58,200
-
