The Alpha Pompe Pump 03RA-T 7.5 HP 400/690V ATEX is an explosion-proof self-priming centrifugal pump designed for deck wash and bilge pumping in commercial shipping, large pleasure crafts, and coastal shipping. It is also suitable for sprinkling, irrigation, dewatering, and industrial cooling. The pump features a 3" connection, a 7.5 HP motor, ATEX certification, and delivers up to 87,000 liters per hour at 15 meters head with IP68 protection.
- Description
- Ask a Question
-

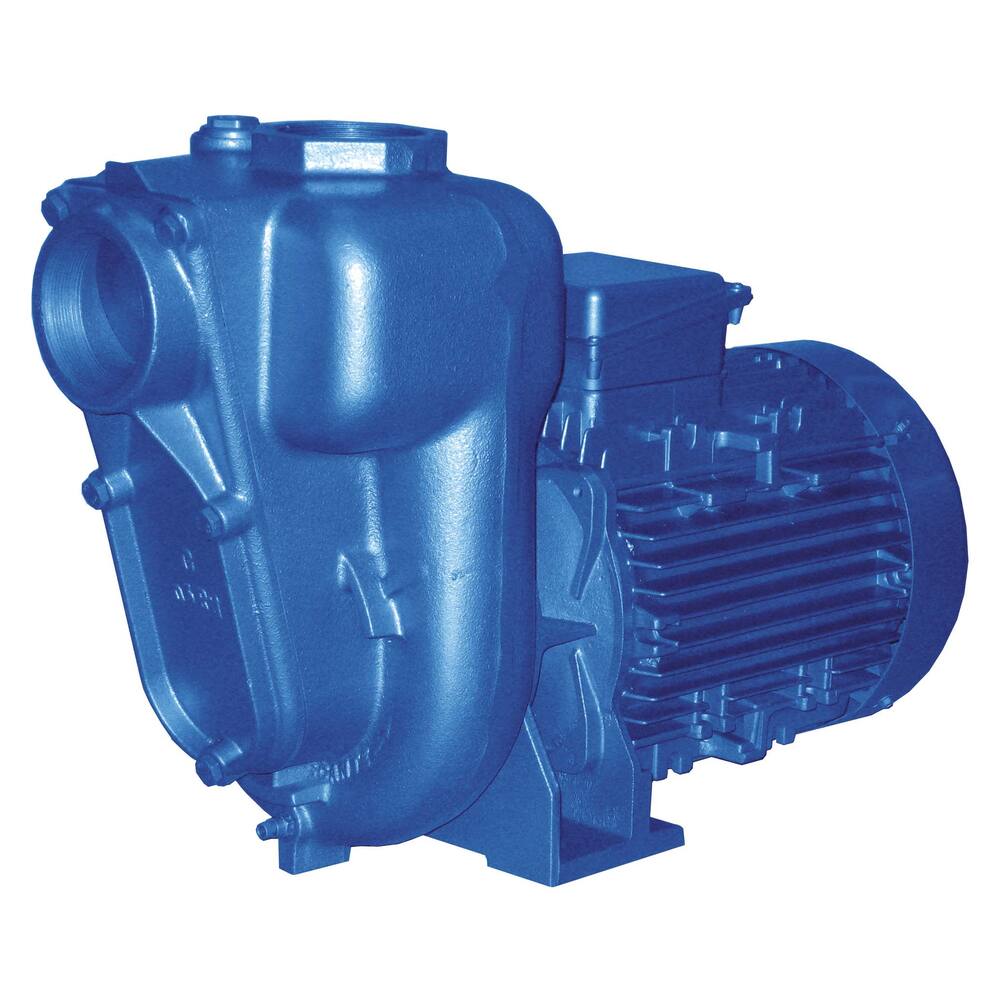

Alpha Pompe Pump 03RA-T 7.5 HP 400/690V ATEX
Designed for deck wash and bilge pumping in commercial shipping, large pleasure craft, and coastal shipping, this pump is also suitable for sprinkling, irrigation, dewatering, and industrial cooling medium applications.
- Type: 03RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming ± 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Performance:
- 15 metres head: 87,000 litres per hour
- 20 metres head: 72,000 litres per hour
- 25 metres head: 42,000 litres per hour
- 27 metres head: 21,000 litres per hour
- Connections: 3" internal thread
- Dimensions (L×W×H): 651 × 274 × 435 mm
- Weight: 75 kg
- Amperage 400/690 V: 7.6 A
- Shaft power: 5.5 kW, 7.5 hp, 2800 rpm
- ATEX certification: II 2 G EEx d IIHB T5, T4, T3
- Special features: Explosion-proof and compression-resistant motor; mechanical seal with Viton suitable for petrol cargo residues
- Product code: 92.11.186
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 24 mm
- Discharge head max: 28.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: Yes
- Free flow (L/Hour): 87,000
- Capacity at 5 meter (L/hour): 87,000
-
