The Alpha Pompe Pump 03RA-T 7.5 HP 400/690V is designed for commercial and coastal shipping, large pleasure crafts, and industrial applications. It offers high performance for deck wash, bilge, sprinkling, irrigation, dewatering, and cooling medium pumping. This pump has a 3" connection, a 7.5 HP motor, and delivers up to 87,000 liters per hour at 15 meters head, with IP68 protection and no ATEX certification.
- Description
- Ask a Question
-

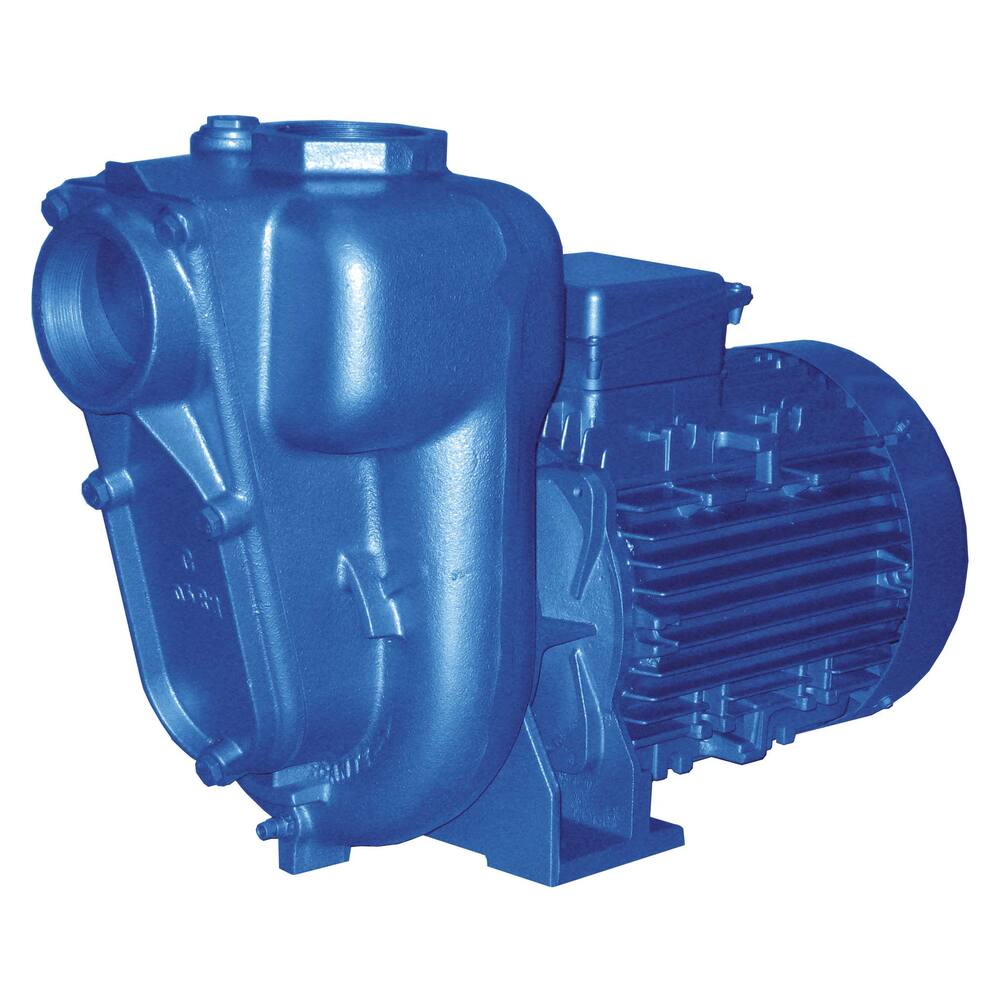

Alpha Pompe Pump 03RA-T 7.5 HP 400/690V
Built for commercial and coastal shipping, large pleasure craft, and industrial applications, this pump offers high performance for deck wash, bilge, sprinkling, irrigation, dewatering, and cooling medium pumping.
- Type: 03RA-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming approximately 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Flow rates at various heads:
- 15 m head: 87,000 litres/hour
- 20 m head: 72,000 litres/hour
- 25 m head: 42,000 litres/hour
- 27 m head: 21,000 litres/hour
- Connections: 3" internal thread
- Dimensions (LxWxH): 651 x 274 x 435 mm
- Weight: 75 kg
- Amperage 400/690 V: 7.6 A
- Shaft power: 5.5 kW, 7.5 hp, 2800 rpm
- Product code: 92.11.185
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 24 mm
- Maximum discharge head: 28.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 87,000 L/hour
- Capacity at 5 meters: 87,000 L/hour
-
