ID
1316701
$ 3,846.50
1-2 weeks delivery time
-
+
The Alpha Pompe Pump 03RAX-T 5.5 HP 400V is a robust self-priming centrifugal pump built for demanding commercial and coastal shipping environments, as well as large pleasure crafts. It supports sprinkling, irrigation, dewatering, and industrial cooling applications. This model has a 3" connection, a 5.5 HP motor, and handles particle sizes up to 11 mm, delivering 43,500 liters per hour at 10 meters head with ATEX certification and IP68 protection.
- Description
- Ask a Question
-

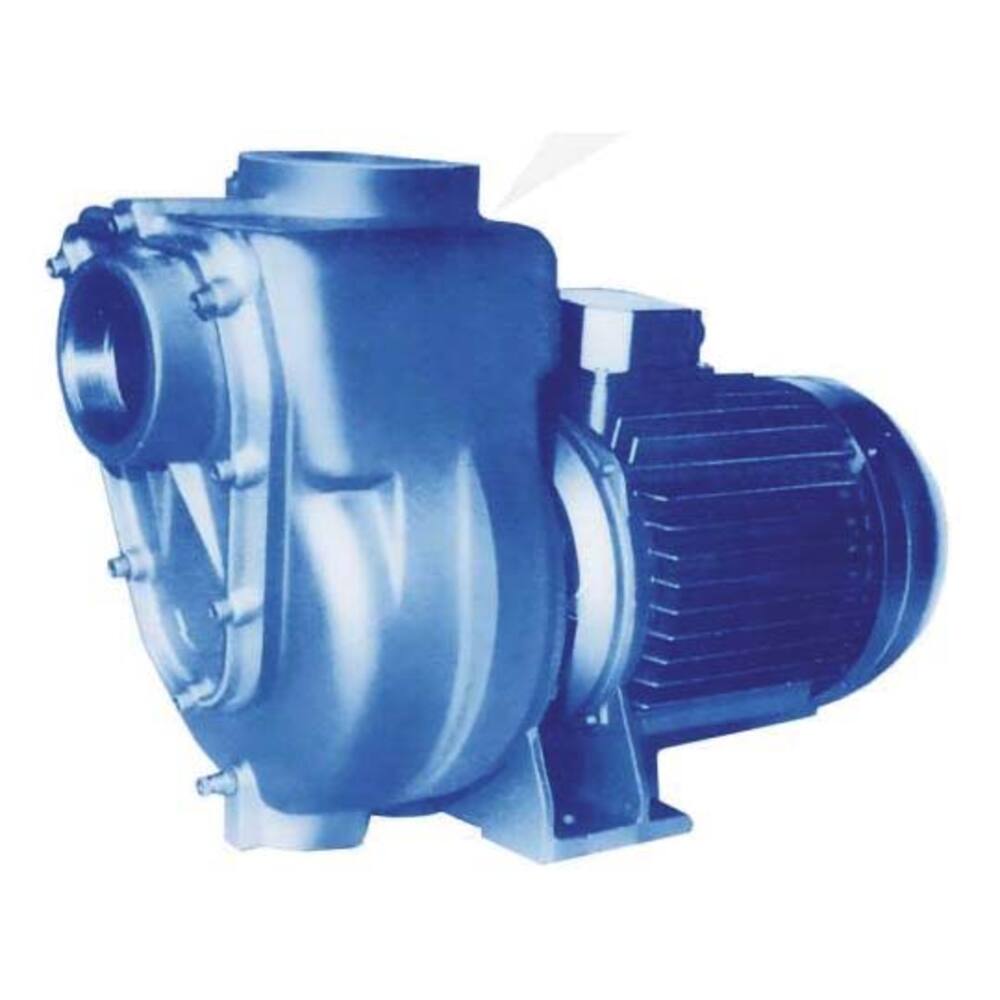

Alpha Pompe Pump 03RAX-T 5.5 HP 400V
Designed for demanding environments such as commercial shipping, large pleasure craft, and coastal shipping, this pump is also versatile enough for sprinkling, irrigation, dewatering, and industrial cooling applications.
- Type: 03RAX-T
- Colour: blue
- Pump type: self-priming centrifugal pump (1" model limited self-priming approximately 2 meters)
- Impeller type: open impeller
- Motor type: short circuit motor for 400 volt
- Fuse: inbuilt thermal safeguard only for the 230 volt motors
- Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel AISI 420
- Liquids handled: contaminated water, sea water, etc., max temperature 90°C
- Insulation class: IP55
- Flow rates at various heads:
- 10 m head: 43,500 litres/hour
- 15 m head: 33,000 litres/hour
- 20 m head: 22,800 litres/hour
- 25 m head: 13,500 litres/hour
- Connections: 3" internal thread
- Dimensions (LxWxH): 585 x 240 x 385 mm
- Weight: 90 kg
- Amperage: 9.0 A
- Shaft power: 4.0 kW, 5.5 hp, 2800 rpm
- Product code: 92.11.160
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 11 mm
- Maximum discharge head: 30.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: Yes
- Free flow: 43,500 L/hour
- Capacity at 5 meters: 43,500 L/hour
-
